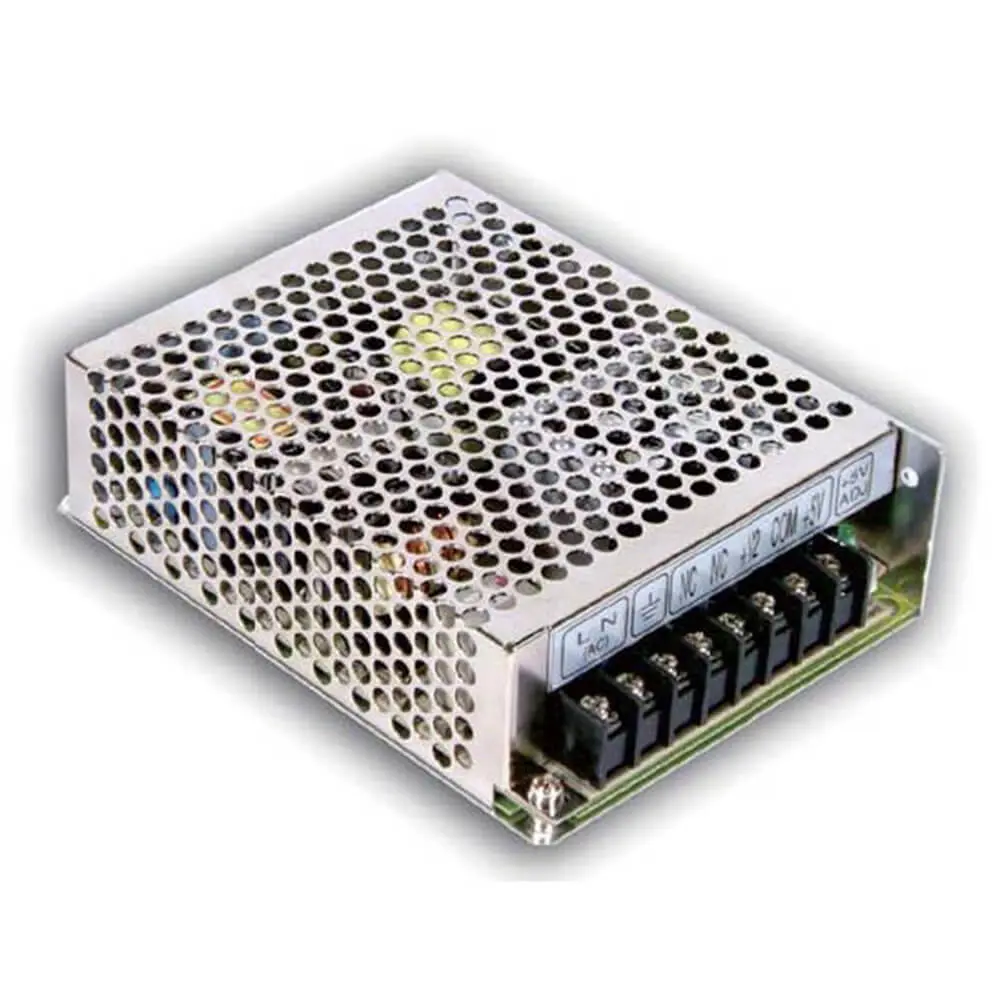

Mean Well 65W Dual Output Switching Power Supply RID-65 Series: RID-65A & RID-65B
Features
- Isolated output & GND for CH1 ,CH2
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105℃ long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70℃
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Description
The Mean Well RID-65 Series is a versatile and efficient dual output switching power supply, designed to meet demanding power requirements. It delivers up to 65W of output in a compact form factor, making it ideal for engineers and designers seeking a dependable solution. The series includes RID-65A and RID-65B models, offering options for different voltage and current combinations.
The power supply provides two independent output channels, allowing flexible power distribution for specific applications. It supports an input voltage range of 85–264VAC, ensuring global compatibility.
With a small footprint, the RID-65 Series is easy to install in space-constrained environments without compromising performance. Efficiency typically exceeds 85%, reducing energy consumption and heat generation for reliable system operation.
Built-in protections against short circuits, overloads, and over-voltage conditions enhance safety and reliability. The series is suitable for industrial automation, telecommunications, LED lighting, and medical devices. Its combination of high performance, safety features, and compact design makes it a preferred choice for a reliable dual output power supply.
Mean Well RID-65 Series Enclosed Power Supply Datasheet Download
Mean Well 65W Dual Output Switching Power Supply RID-65 Series
This datasheet covers both RID-65A and RID-65B models of the Mean Well 65W dual output switching power supply series, providing full specifications, features, and application details for each model.
Specification
| MODEL | RID-65A | RID-65B | |||
|
OUTPUT |
OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 5V | 12V | 5V | 24V | |
| RATED CURRENT | 6A | 3A | 4A | 2A | |
| CURRENT RANGE Note.6 | 0 ~ 8A | 0 ~ 4A | 0 ~ 8A | 0 ~ 3A | |
| RATED POWER Note.6 | 66W | 68W | |||
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | CH1: 4.75 ~ 5.5V | CH1: 4.75 ~ 5.5V | |||
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±8.0% | ±2.0% | ±10% | |
| LINE REGULATION Note.4 | ±0.5% | ±1.5% | ±0.5% | ±2.0% | |
| LOAD REGULATION Note.5 | ±0.5% | ±5.0% | ±0.5% | ±5.0% | |
| SETUP, RISE TIME | 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 12ms/115VAC at full load | ||||
|
INPUT |
VOLTAGE RANGE | 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY(Typ.) | 80% | 81% | |||
| AC CURRENT (Typ.) | 2A/115VAC 1.2A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 50A/230VAC | ||||
| LEAKAGE CURRENT | <2mA / 240VAC | ||||
|
PROTECTION |
OVERLOAD |
110 ~ 150% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
|
OVER VOLTAGE |
CH1: 5.75 ~ 6.75V | ||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
|
ENVIRONMENT |
WORKING TEMP. | -25 ~ +70℃ (Refer to “Derating Curve”) | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) on +5V output | ||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
|
SAFETY & EMC (Note 7) |
SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2, -3, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020 | ||||
|
OTHERS |
MTBF | 2940.2K hrs min. Telcordia SR-332 (Bellcore); 541.0K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 129*98*38mm (L*W*H) | ||||
| PACKING | 0.44Kg; 30pcs/14.2Kg/0.72CUFT | ||||
Applications
- Industrial Automation
- LED Lighting
- Telecommunications Equipment
- Security Systems
- Medical Equipment
- Audio and Visual Equipment
