MW Mean Well Meanwell 360W AC-DC High Reliability Industrial Adaptor GST360B Series
Features
- 450W peak power(3 sec.)
- Universal AC input / Full range
- 2 pole AC inlet IEC320-C18, Class II power unit
- Built-in active PFC function
- No load power consumption< 0.5W
- Energy efficiency Level VI
- Comply with international energy-saving standards
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fanless design with -30~+70℃ working temperature
- Fully enclosed plastic case
- LED indicator for power on
- 3 years warranty
Description
The GST360B series is a highly reliable 360W desktop-style single-output green adaptor. This Class II power unit (without FG) features a standard IEC320-C18 AC inlet and supports an input voltage range from 85VAC to 264VAC. The series offers models with output voltages ranging from 12VDC to 55VDC, catering to the requirements of various consumer electronic devices.
With efficiency up to 95% and ultra-low no-load power consumption below 0.5W, the GST360B series complies with key international energy efficiency standards, including USA EISA 2007/DoE and Canada NRCan. These features ensure substantial energy savings in both active and standby modes.
Housed in a 94V-0 flame-retardant plastic enclosure, the GST360B series meets global safety regulations, making it a reliable and energy-efficient choice for a broad range of applications.

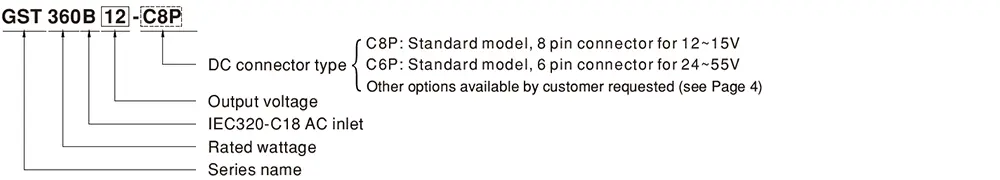

Mean Well Industrial Desktop Adaptor GST360B Series Model Encoding
Mean Well Industrial Desktop Adaptor GST360B Series Data Sheet Download
Specification
| ORDER NO. | GST360B12-C8P | GST360B15-C8P | GST360B24-C6P | GST360B36-C6P | GST360B48-C6P | GST360B55-C6P | ||||
|
OUTPUT |
SAFETY MODEL NO. | GST360B12 | GST360B15 | GST360B24 | GST360B36 | GST360B48 | GST360B55 | |||
| DC VOLTAGE Note.2 | 12V | 15V | 24V | 36V | 48V | 55V | ||||
| RATED CURRENT | 27.5A | 22.7A | 15A | 10A | 7.5A | 6.55A | ||||
| CURRENT RANGE | 0 ~ 27.5A | 0 ~ 22.7A | 0 ~ 15A | 0 ~ 10A | 0 ~ 7.5A | 0 ~ 6.55A | ||||
| POWER | Rated (max.) | 330W | 340.5W | 360W | 360W | 360W | 360W | |||
| Peak (3sec.) | 415W | 425W | 450W | 450W | 450W | 450W | ||||
| RIPPLE & NOISE (max.) Note.3 | 120mVp-p | 120mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||||
| VOLTAGE TOLERANCE Note.4 | ±5.0% | ±5.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ||||
| LINE REGULATION Note.5 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
| LOAD REGULATION | ±5.0% | ±5.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ||||
| SETUP, RISE TIME Note.6 | 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 8ms / 230VAC 8ms / 115VAC at full load | |||||||||
|
INPUT |
VOLTAGE RANGE Note.7 | 85 ~ 264VAC 120 ~ 370VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR (Typ.) | PF>0.95 / 230VAC PF>0.98 / 115VAC at full load | |||||||||
| EFFICIENCY (Typ.) | 91% | 92% | 93% | 94% | 95% | 95% | ||||
| AC CURRENT (Typ.) | 3.8A / 115VAC 2A / 230VAC | |||||||||
| INRUSH CURRENT (max.) | Cold start 95A / 115VAC 120A / 230VAC | |||||||||
| LEAKAGE CURRENT (max.) | Touch current <0.5mA / 260VAC | |||||||||
|
PROTECTION |
OVERLOAD |
135 ~ 155% rated output power | ||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed for 12 ~ 36V
Shut down o/p voltage, re-power on to recover for 48V and 55V |
||||||||||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |||||||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | ||||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0~35℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
| OPERATING ALTITUDE Note. 8 | 5000 meters | |||||||||
| OVER VOLTAGE CATEGORY | Ⅱ; According to UL62368-1, BS EN/EN62368-1; altitude up to 5000 meters | |||||||||
|
SAFETY & EMC (Note. 9) |
SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1, IEC 61558-1,IEC 61558-2-16, AS/NZS 61558-1/-2-16,
EAC TP TC 004 approved |
||||||||
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | |||||||
|
Conducted emission |
BS EN/EN55032(CISPR32), FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B), EAC TP TC 020 | Class B | ||||||||
| Radiated emission | BS EN/EN55032(CISPR32), FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020 | Class B | ||||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||||||
| Voltage flicker | BS EN/EN61000-3-3 | ——- | ||||||||
|
EMC IMMUNITY |
Parameter | Standard | Test Level /Note | |||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air; Level 4, 8KV contact | ||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 2, 1KV | ||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | ||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 2, 3V | ||||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 2, 3A/m | ||||||||
| Voltage dips, interruption | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods,
＞95% interruptions 250 periods |
||||||||
|
OTHERS |
MTBF | 2057.2K hrs min. Telcordia SR-332 (Bellcore); 265.9K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 220*95*46mm (L*W*H) | |||||||||
| PACKING | 1.4Kg; 8pcs/12Kg/0.82CUFT | |||||||||
| CONNECTOR | PLUG | See page 4; Other type available by customer requested | ||||||||
| CABLE | See page 4; Other type available by customer requested | |||||||||
Applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
