May 21, 202265W Constant Voltage + Constant Current LED Driver HVG-65 series
Features
- Wide input range 180 ~ 528VAC
- Constant Voltage + Constant Current mode output
- Metal housing with ClassⅠdesign
- Built-in active PFC function
- Class 2 power unit
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVG-65 series is a 65W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HVG-65 operates from 180~528VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

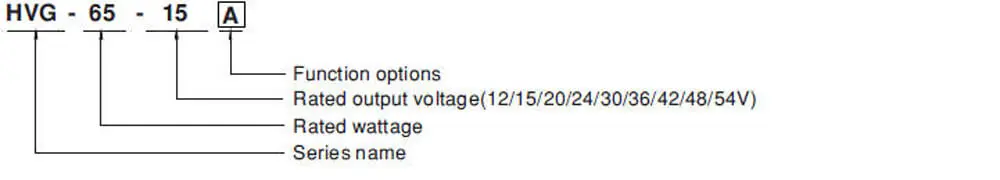

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io and Vo adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| D | IP67 | Built-in Smart timer dimming function by user request. | By request |
Specification
| MODEL | HVG-65-12 | HVG-65-15 | HVG-65-20 | HVG-65-24 | HVG-65-30 | HVG-65-36 | HVG-65-42 | HVG-65-48 | HVG-65-54 | |
|
OUTPUT |
DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION Note.4 | 7.2 ~12V | 9 ~ 15V | 12 ~ 20V | 14.4 ~ 24V | 18 ~ 30V | 21.6 ~ 36V | 25.2 ~ 42V | 28.8 ~ 48V | 32.4 ~ 54V | |
| RATED CURRENT | 5A | 4.3A | 3.25A | 2.71A | 2.17A | 1.81A | 1.55A | 1.36A | 1.21A | |
| RATED POWER | 60W | 64.5W | 65W | 65W | 65.1W | 65.2W | 65.1W | 65.3W | 65.3W | |
| RIPPLE & NOISE (max.) Note.2 | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 300mVp-p | 300mVp-p | 300mVp-p | |
|
VOLTAGE ADJ. RANGE |
Adjustable for A-Type only (via the built-in potentiometer) | |||||||||
| 10.8 ~ 13.5V | 13.5 ~ 17V | 17 ~ 22V | 22 ~ 27V | 27 ~ 33V | 33 ~ 40V | 38 ~ 46V | 43 ~ 53V | 49 ~ 58V | ||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | |||||||||
| 3 ~ 5A | 2.58 ~ 4.3A | 1.95 ~ 3.25A | 1.62 ~ 2.71A | 1.3 ~ 2.17A | 1.08 ~ 1.81A | 0.93 ~ 1.55A | 0.81 ~ 1.36A | 0.72 ~ 1.21A | ||
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.5% | ±1.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms /230VAC 400ms, 80ms /347VAC, 480VAC | |||||||||
| HOLD UP TIME (Typ.) | 16ms / 347VAC 30ms / 480VAC | |||||||||
|
INPUT |
VOLTAGE RANGE Note.5 |
180 ~ 528VAC 254VDC ~ 747VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
|
POWER FACTOR (Typ.) |
PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.97/347VAC, PF≧0.93/480VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@ load≧60%/230VAC, 277VAC, 347VAC; @ load≧75%/480VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||||||||
| EFFICIENCY (Typ.) | 86.5% | 87.5% | 88.5% | 89% | 89% | 89.5% | 89.5% | 90% | 90% | |
| AC CURRENT (Typ.) | 0.22A / 347VAC 0.18A / 480VAC | |||||||||
| INRUSH CURRENT (Typ.) | COLD START 25A(twidth=420μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC |
|||||||||
| LEAKAGE CURRENT | <0.75mA / 480VAC | |||||||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||||
|
OVER VOLTAGE |
14.4 ~ 16.8V | 18 ~ 21V | 23 ~ 27V | 28 ~ 34V | 34 ~ 38V | 41 ~ 46V | 47 ~ 53V | 54 ~ 60V | 59 ~ 65V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +80℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||||||
| MAX. CASE TEMP. | Tcase=+80℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||||||||
|
OTHERS |
MTBF | 612.6K hrs min. Telcordia SR-332 (Bellcore) ; 208K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 189*61.5*36.8mm (L*W*H) | |||||||||
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.89CUFT | |||||||||
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
