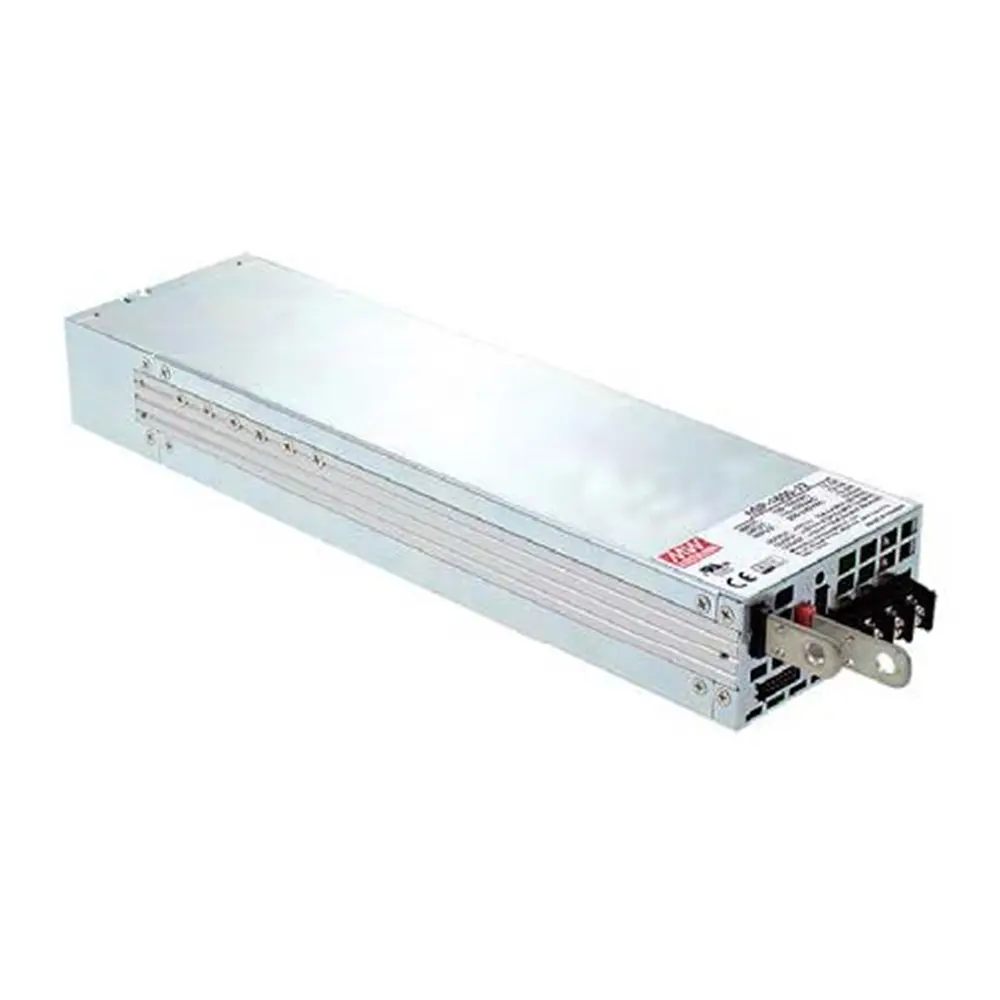

RSP-1600 series
June 30, 2023
RSP-2400 series
June 30, 2023MW Mean Well Meanwell 2000W Single Output with PFC Fucntion Switching Power Supply RSP-2000 series
Features
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency up to 92%
- Forced air cooling by built-in DC fan
- Output voltage programmable
- Active current sharing up to 8000W
- Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Optional conformal coating
- 5 years warranty
Mean Well Enclosed Switching Power Supply RSP-2000 Series Data Sheet Download
Description
Mean Well RSP-2000 is a 2KW single output enclosed type AC/DC power supply with 1U low profile and PFC funciton. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃. Moreover, RSP-2000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.
Mean Well Enclosed Switching Power Supply RSP-2000 Series Model Encoding
Specification
| MODEL | RSP-2000-12 | RSP-2000-24 | RSP-2000-48 | |
|
OUTPUT |
DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 100A | 80A | 42A | |
| CURRENT RANGE | 0 ~ 100A | 0 ~ 80A | 0 ~ 42A | |
| RATED POWER | 1200W | 1920W | 2016W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 200mVp-p | 300mVp-p | |
| VOLTAGE ADJ. RANGE | 10.5 ~ 14V | 21 ~ 28V | 42 ~ 56V | |
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 60ms/230VAC at full load | |||
| HOLD UP TIME (Typ.) | 16ms/230VAC at 75% load 10ms/230VAC at full load | |||
|
INPUT |
VOLTAGE RANGE Note.4,5 | 90 ~ 264VAC 250 ~ 320VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |||
| EFFICIENCY (Typ.) | 87% | 90.5% | 92% | |
| AC CURRENT (Typ.) Note.4 | 13A/115VAC 7A/230VAC | 16A/115VAC 10A/230VAC | 16A/115VAC 10A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 50A | |||
| LEAKAGE CURRENT | <2mA / 240VAC | |||
|
PROTECTION |
OVERLOAD |
105 ~ 125% rated output power | ||
| Protection type: Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover | ||||
|
OVER VOLTAGE |
14.7 ~ 17.5V | 29.5 ~ 35V | 57.6 ~ 67.2V | |
| Protection type: Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
|
FUNCTION |
OUTPUT VOLTAGE PROGRAMMABLE(PV) | Adjustment of output voltage is allowable to 40 ~ 115% of nominal output voltage. Please refer to the Function Manual. | ||
| CURRENT SHARING | Up to 8000W or (3+1) units. Please refer to the Function Manual. | |||
| AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | |||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON:open Power OFF:short. Please refer to the Function Manual. | |||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual. | |||
| DC OK SIGNAL | The isolated TTL signal out. Please refer to the Function Manual. | |||
|
ENVIRONMENT |
WORKING TEMP. | -35 ~ +70℃ (Refer to “Derating Curve”) | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
|
SAFETY & EMC (Note 6) |
SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | —– | ||
| Voltage Flicker | BS EN/EN61000-3-3 | —– | ||
|
EMC IMMUNITY |
BS EN/EN55035, BS EN/EN61000-6-2, BSMI CNS13438 | |||
| Parameter | Standard | Test Level / Note | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-Earth ; Level 3, 2KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods |
||
|
OTHERS |
MTBF | 487.7K hrs min. Telcordia SR-332 (Bellcore); 42.9K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 295*127*41mm (L*W*H) | |||
| PACKING | 1.95Kg; 6pcs/12.7Kg/1.15CUFT | |||
Application
- Factory control or automation apparatus
- Test and measurement instrument
- Laser related machine
- Burn-in facility
- Digital broadcasting
- RF application
