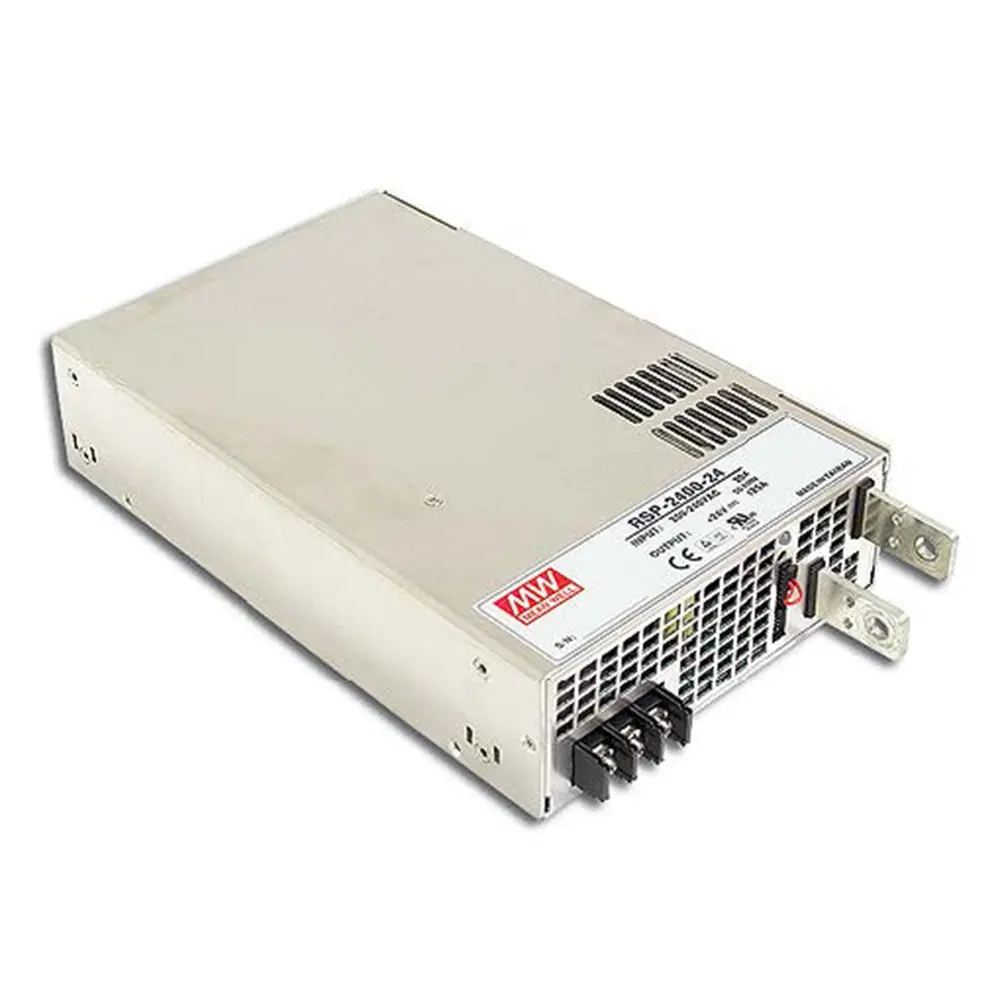

RSP-2400 series
June 30, 2023MW Mean Well Meanwell 3000W Single Output with PFC Fucntion Switching Power Supply RSP-3000 series
Features
- AC input 180~264VAC
- Built-in active PFC function
- High efficiency up to 91.5%
- Forced air cooling by built-in DC fan
- Output voltage programmable
- Active current sharing up to 9000W
- Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Optional conformal coating
- 5 years warranty
Mean Well Enclosed Switching Power Supply RSP-3000 Series Data Sheet Download
Description
RSP-3000 is a 3KW single output enclosed type AC/DC power supply. This series operates for 180~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃. Moreover, RSP-3000 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.
Mean Well Enclosed Switching Power Supply RSP-3000 Series Model Encoding
Specification
| MODEL | RSP-3000-12 | RSP-3000-24 | RSP-3000-48 | |
|
OUTPUT |
DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 200A | 125A | 62.5A | |
| CURRENT RANGE | 0 ~ 200A | 0 ~ 125A | 0 ~ 62.5A | |
| RATED POWER | 2400W | 3000W | 3000W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8 ~ 13.2V | 22 ~ 28V | 43 ~ 56V | |
| VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 80ms at full load | |||
| HOLD UP TIME (Typ.) | 10ms at full load | |||
|
INPUT |
VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.95/230VAC at full load | |||
| EFFICIENCY (Typ.) | 87.5% | 90% | 91.5% | |
| AC CURRENT (Typ.) | 20A/180VAC 16A/230VAC | |||
| INRUSH CURRENT (Typ.) | 60A/230VAC | |||
| LEAKAGE CURRENT | <2.0mA / 240VAC | |||
|
PROTECTION |
OVERLOAD |
100 ~ 112% rated output power | ||
| User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover | ||||
|
OVER VOLTAGE |
13.8 ~ 16.8V | 28.8 ~ 33.6V | 57.6 ~ 67.2V | |
| Protection type: Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
|
FUNCTION |
OUTPUT VOLTAGE PROGRAMMABLE(PV) | 2.4 ~ 13.2V | 4.8 ~ 28V | 9.6 ~ 56V |
| Please refer to the Function Manual. | ||||
| CURRENT SHARING | Up to 9000W or (2+1) units. Please refer to the Function Manual. | |||
| AUXILIARY POWER(AUX) | [email protected] (Only for Remote ON/OFF control) | |||
| REMOTE ON-OFF CONTROL | Please refer to the Function Manual | |||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.25V. Please refer to the Function Manual. | |||
| ALARM SIGNAL OUTPUT | Power OK signal. Please refer to the Function Manual | |||
|
ENVIRONMENT |
WORKING TEMP. | -20 ~ +70℃ (Refer to “Derating Curve”) | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, IS13252(Part1)/IEC60950-1,
EAC TP TC 004 approved |
||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | |
| Conducted | BS EN/EN55032 (CISPR32) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | —– | ||
| Voltage Flicker | BS EN/EN61000-3-3 | —– | ||
|
EMC IMMUNITY |
BS EN/EN55035, BS EN/EN61000-6-2, BSMI CNS13438 | |||
| Parameter | Standard | Test Level / Note | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 3, 2KV/Line-Earth ; Level 2, 1KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods |
||
|
OTHERS |
MTBF | 677.3K hrs min. Telcordia SR-332 (Bellcore); 75.2K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 278*177.8*63.5mm (L*W*H) | |||
| PACKING | 4Kg; 4pcs/16Kg/2.04CUFT | |||
Application
- Factory control or automation apparatus
- Test and measurement instrument
- Laser related machine
- Burn-in facility
- Digital broadcasting
- RF application
