MW Mean Well Meanwell 1600W Intelligent Single Output Battery Charger RPB-1600 series
Features
- Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- Built-in default 3 stage charging curves and programmable curve
- Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
- Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
- Built-in active PFC function

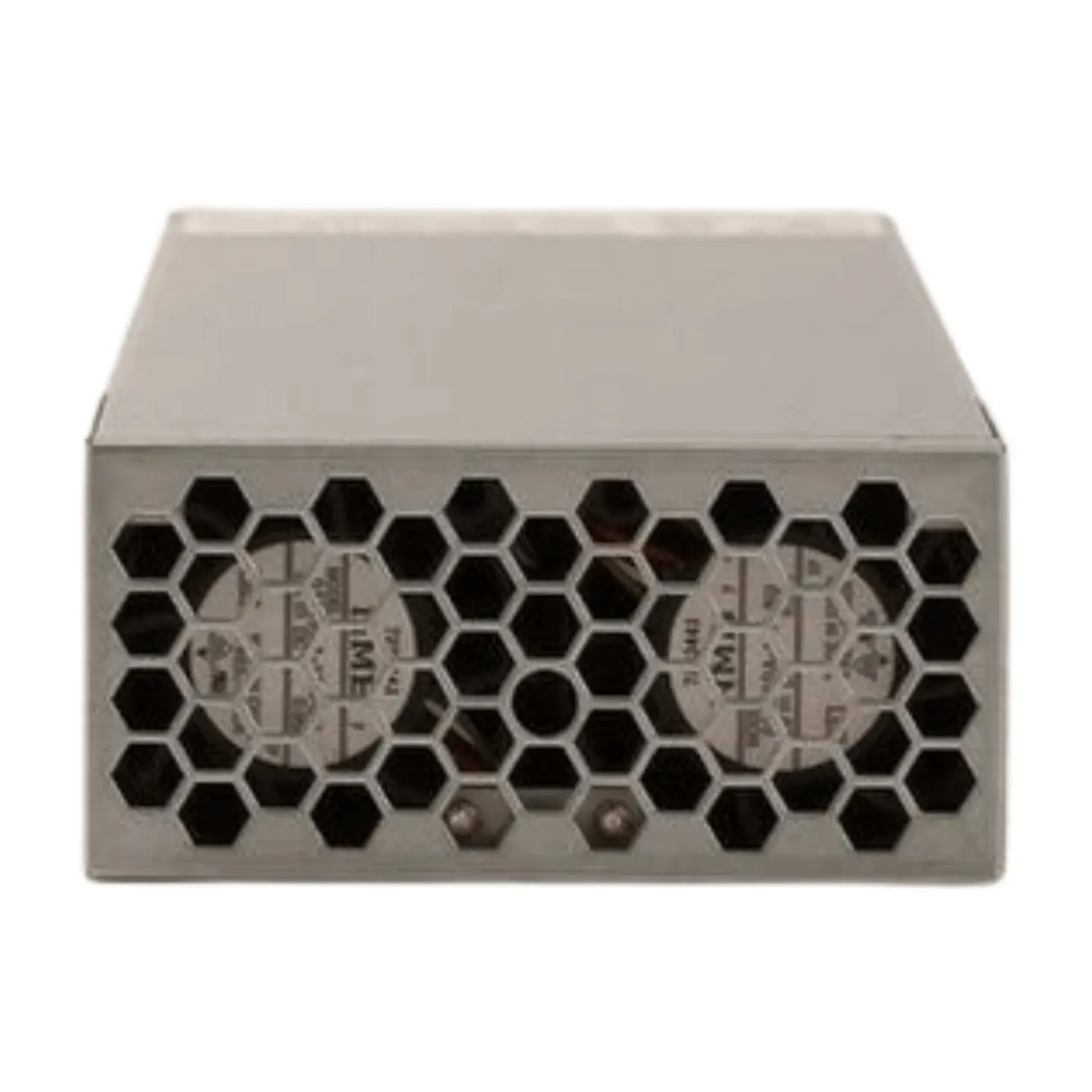

- Forced air cooling by built-in DC fan
- Output voltage and current programmable
- Built-in OR-ing FET
- Active current sharing up to 4800W(2+1)
- Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
- Optional conformal coating
- 5 years warranty
Mean Well Battery Charger RPB-1600 Series Data Sheet Download
Description
The Mean Well RPB-1600 is a 1.6kW single output AC/DC charger featuring a high power density of up to 25W/inch³. Three embedded charging curves, specifically tailored for lead-acid batteries, come preloaded in every model. With support for PMBus and CANBus communication protocols, users can also upload a custom charging curve to accommodate other battery types such as lithium-ion batteries. Each model is cooled by a thermostatically controlled fan and equipped with multiple protection mechanisms to ensure maximum safety across diverse applications.
RPB-1600-12
The RPB-1600-12 is the 12V model in the RPB-1600 series, delivering intelligent 3-stage charging for 12V lead-acid and li-ion batteries. With programmable output and robust protection features, the RPB-1600-12 ensures stable and efficient battery charging for industrial automation, energy storage, and telecom applications.
RPB-1600-24
The RPB-1600-24 offers efficient 24V battery charging with advanced control and flexibility. Designed for both lead-acid and li-ion battery systems, the RPB-1600-24 supports real-time communication via PMBus and CANBus, allowing precise voltage and current adjustments. Its high power density and built-in safety features make it ideal for demanding industrial environments.
RPB-1600-48
The RPB-1600-48 is the 48V version of the RPB-1600 series, delivering powerful and reliable 3-stage charging for 48V battery applications. It is well-suited for telecom power, backup systems, and renewable energy storage. With its programmable charging curves and multiple protection mechanisms, the RPB-1600-48 ensures efficient performance and long-term reliability.
Besides the RPB-1600 series, Mean Well also offers other high-power battery charging solutions that meet various industrial needs.
DBR-3200 Series
The DBR-3200 series is a 3200W single output AC/DC programmable power supply designed for applications requiring constant voltage or constant current. It features built-in digital control, PMBus communication, and a wide range of protections, making it ideal for industrial automation, testing equipment, and battery charging systems.
DBU-3200 Series
The DBU-3200 series offers a 3200W intelligent AC/DC battery charger with pre-loaded charging curves for lead-acid and li-ion batteries. Its output voltage and current are programmable via potentiometer or PMBus, with comprehensive protection and temperature compensation for safe, reliable operation.
RCB-1600 Series
The RCB-1600 series is a 1600W configurable AC/DC charger supporting multiple battery chemistries. With flexible output modules and remote control via PMBus, it is suitable for medical, industrial, and automation applications requiring intelligent battery charging solutions.
Mean Well’s battery charger portfolio, including the RPB-1600, DBR-3200, DBU-3200, and RCB-1600 series, offers versatile and reliable solutions for a wide range of battery types and industrial applications. These chargers provide programmable charging, advanced protections, and communication protocols to ensure efficient and safe operation tailored to your specific needs.
Mean Well Battery Charger RPB-1600 Series Model Encoding
| Type | Communication Protocol | Note |
| Blank | PMBus protocol | In Stock |
| CAN | CANBus protocol | By request |
Specification
| MODEL | RPB-1600-12 | RPB-1600-24 | RPB-1600-48 | |
|
OUTPUT |
BOOST CHARGE VOLTAGE(Vboost)(default) | 14.4V | 28.8V | 57.6V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 13.8V | 27.6V | 55.2V | |
| CONSTANT CURRENT(CC)(default) | 100A | 55A | 27.5A | |
|
VOLTAGE ADJ. RANGE Note 5 |
By built-in potentiometer, SVR | |||
| 11.5 ~ 15V | 23.5 ~ 30V | 47.5 ~ 58.8V | ||
| RECOMMENDED BATTERY
CAPACITY(AMP HOURS) Note.3 |
330 ~ 1000Ah |
180 ~ 550Ah |
90 ~ 270Ah |
|
| LEAKAGE CURRENT FROM
BATTERY (Typ.) Note.8 |
<45mA |
|||
|
INPUT |
VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |||
| EFFICIENCY (Typ.) | 91% | 92.5% | 93.5% | |
| AC CURRENT (Typ.) Note.4 | 14A/115VAC 8A/230VAC | 15A/115VAC 8.5A/230VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 35A/230VAC | |||
| LEAKAGE CURRENT | <2mA / 240VAC | |||
|
PROTECTION |
OVER VOLTAGE |
15.75 ~ 18.75V | 31.5 ~ 37.5V | 63 ~ 75V |
| Protection type: Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
|
FUNCTION |
AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | ||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON: short Power OFF: open. Please refer to Function Manual | |||
| OUTPUT VOLTAGE PROGRAMMABLE(PV) Note 5 | Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage Please refer to the Function Manual. | |||
| OUTPUT CURRENT PROGRAMMABLE(PC) Note 5 | Adjustment of output current is allowable to 20 ~ 100% of rated current Please refer to the Function Manual. | |||
| TEMPERATURE COMPENSATION | -3mV / ℃ / cell / (12V = 6 cells; 24V = 12 cells; 48V = 24 cells) | |||
| ALARM SIGNAL | Isolated signal output for T-alarm and DC OK | |||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
|
SAFETY & EMC (Note 6) |
SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020 | |||
|
OTHERS |
MTBF | 457.7K hrs min. Telcordia SR-332 (Bellcore); 100.3K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 300*85*41mm (L*W*H) | |||
| PACKING | 2.1Kg; 6pcs/13.6Kg/1.25CUFT | |||
Application
- Large scale DC UPS or emergency
- backup system
- Marine battery charger module
- Electric scooter or vehicle charger station
- Wastewater treatment system
- Electrolysis system
Mean Well Battery Charger RPB-1600 Series Unboxing

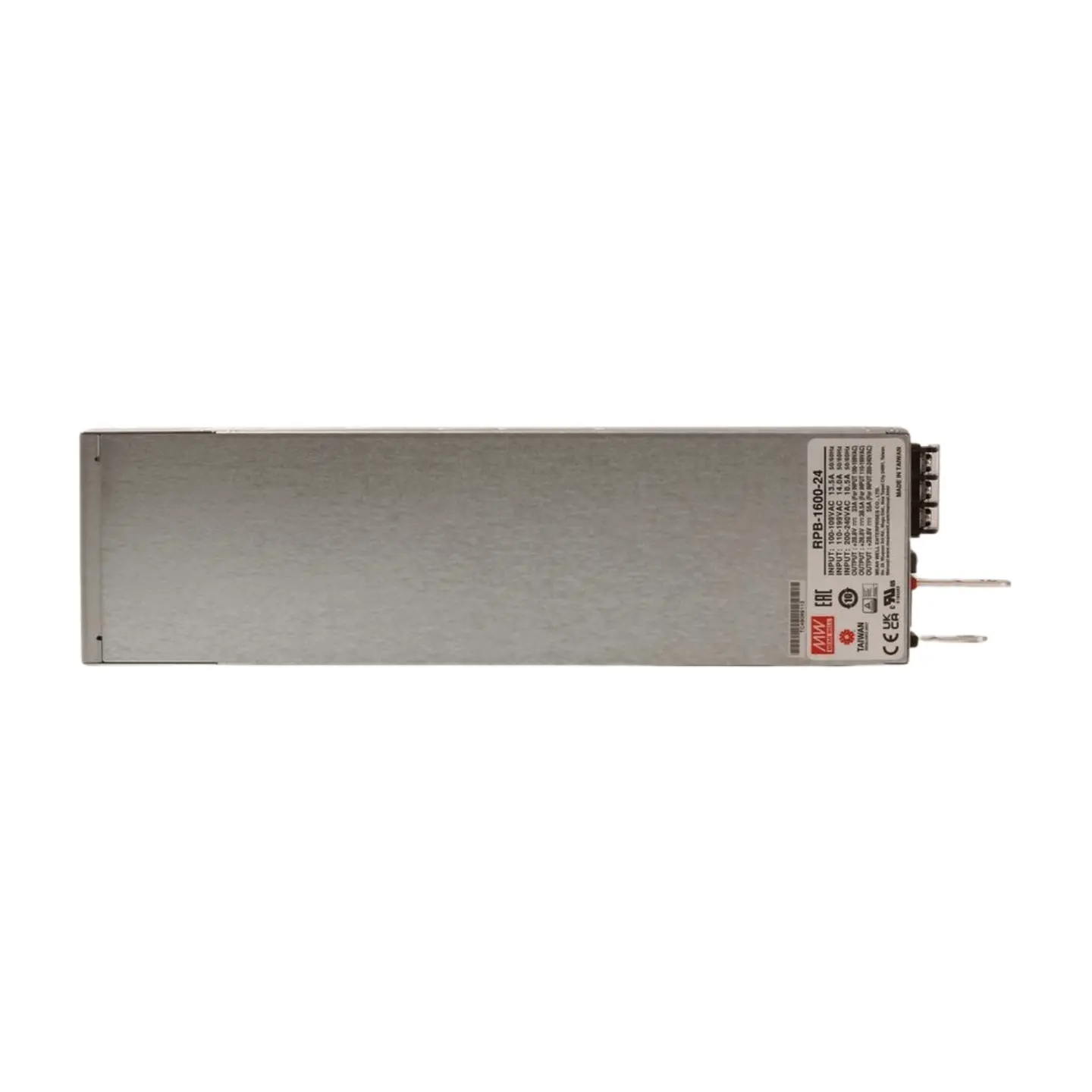

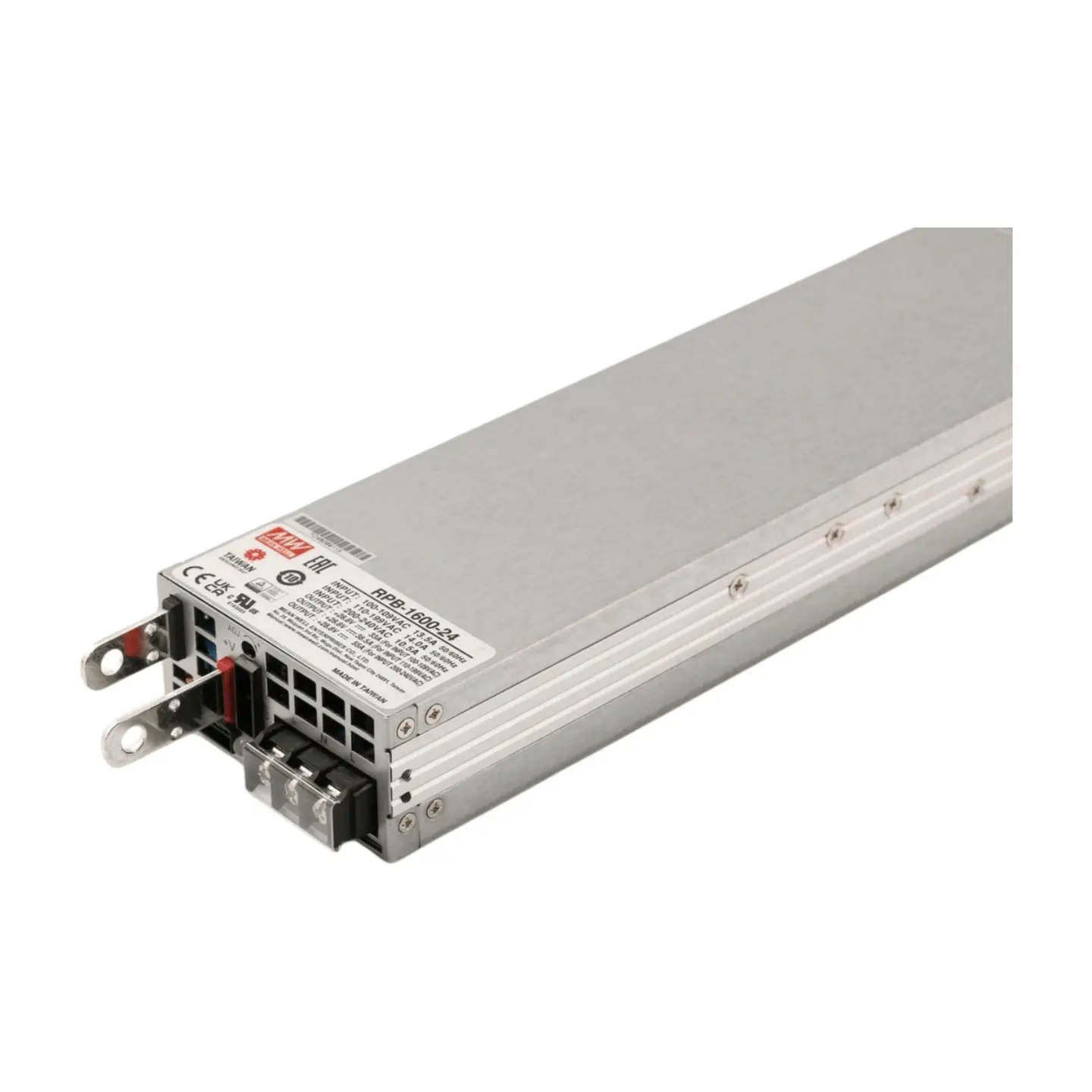

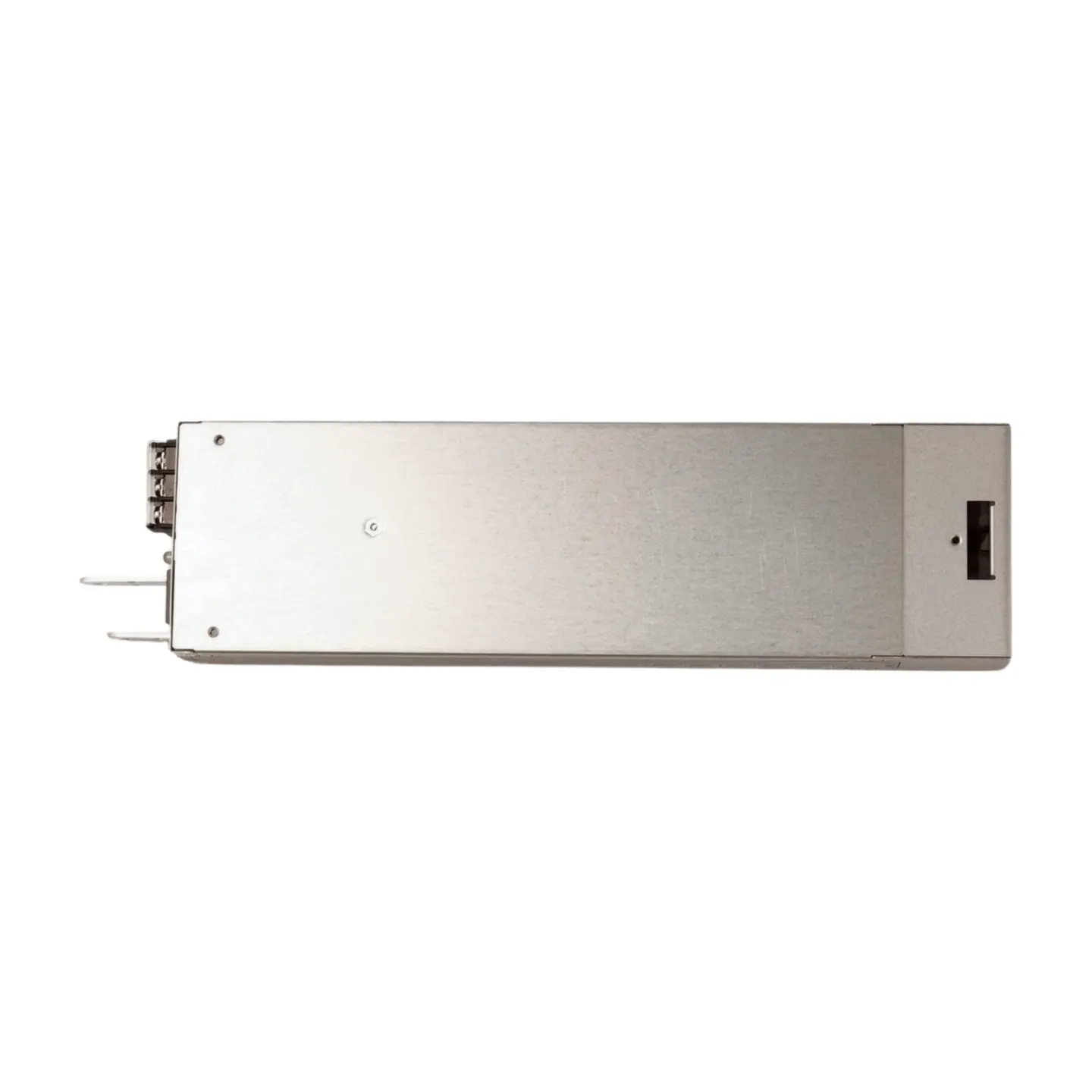

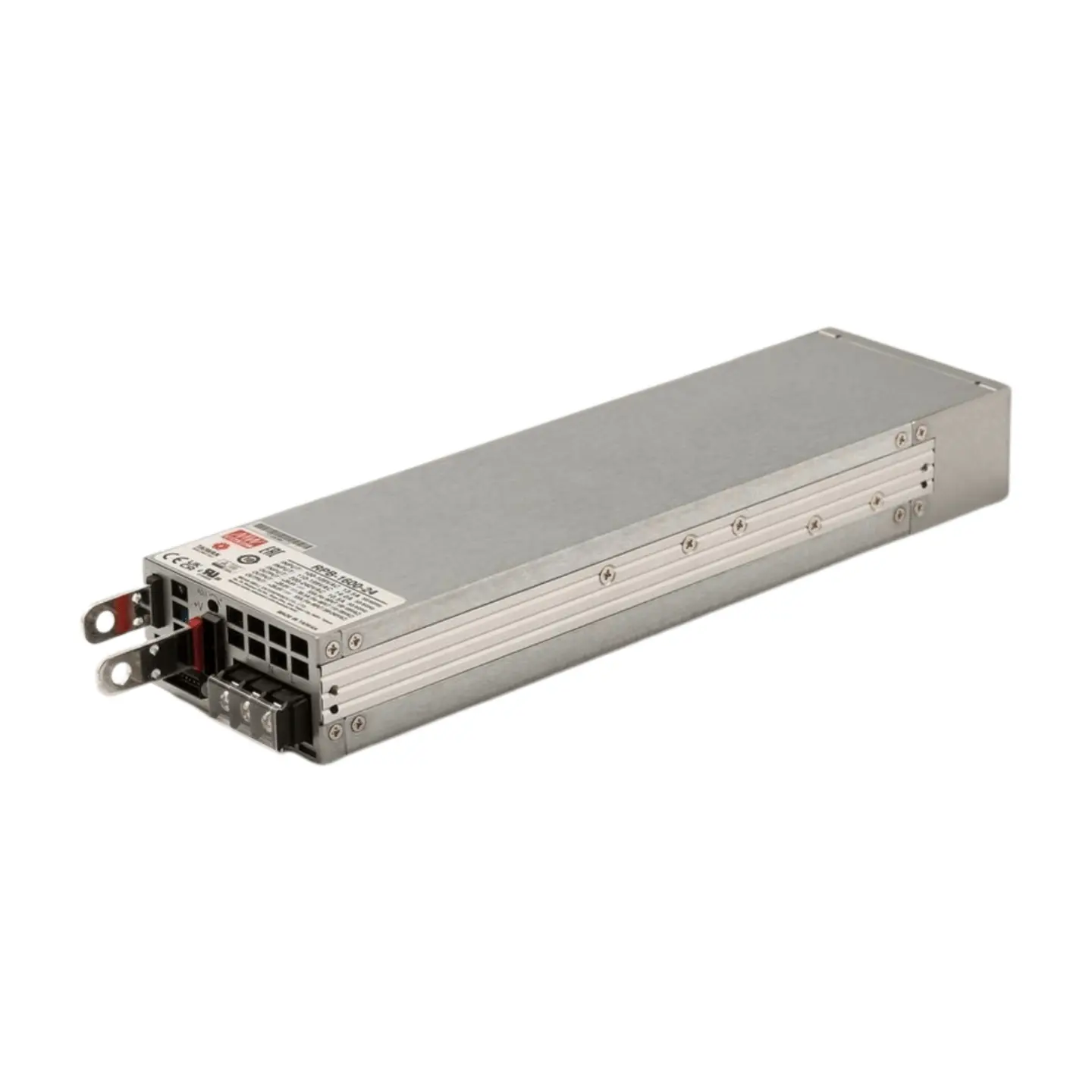

What you see in this video is what you get for the model RPB-1600-24.
Mean Well Battery Charger RPB-1600 Series Video Show
The model in this video is RPB-1600-24 from Mean Well battery charger RPB-1600 series.
