MEAN WELL Security & Special Power Supplies
Explore MEAN WELL security power supplies and special power solutions for security systems, fire alarm applications, battery backup, DC UPS systems and harsh industrial environments.
The range includes DIN rail battery-backed power supplies, intelligent DC UPS solutions, PCB and enclosed security power supplies, fire alarm power supplies, and rugged IP-rated power supplies across the DRC, DRS, PSC, LAD, SCP and HEP Series.
Choose by power level, mounting type, battery backup requirements, monitoring functions, communication capability and environmental protection.
MEAN WELL Security & Special Power Supply Families
Compare the DRC, DRS, PSC, LAD, SCP and HEP Series by installation type, backup requirements, monitoring functions and operating environment, then go directly to the power range that matches your application.
DRC Series
DIN rail security power supplies with integrated battery charging and backup functions for security, access control and other DC backup systems.
DRS Series
Intelligent DIN rail power supplies combining DC UPS, battery charging and system monitoring for advanced security and fire alarm applications.
PSC Series
Compact PCB and enclosed security power supplies with battery charging and UPS functionality for embedded and space-constrained backup systems.
LAD Series
Enclosed security and fire alarm power supplies with integrated battery charging, backup operation and status monitoring across higher power levels.
SCP Series
Enclosed security power supplies for battery-supported DC systems, with output voltage detection and temperature compensation functions.
Compare MEAN WELL Security Power Supplies by Series
Use this quick comparison to narrow the product family by power range, installation format, battery backup requirements, monitoring capability and operating environment. Select a series below to review its available power levels and individual products.
| Series | Power Range | Form Factor | Battery / Backup | Monitoring / Communication | Best Fit |
|---|---|---|---|---|---|
| DRC Series | 40–180W | DIN Rail | Integrated battery charging and backup function | Status signals on selected models | Security, access control and compact DIN rail backup systems |
| DRS Series | 240–480W | DIN Rail | Integrated battery charger and DC UPS function | Advanced monitoring; MODBus and optional CANBus | Higher-power security, fire alarm and intelligent backup systems |
| PSC Series | 35–160W | PCB / Enclosed | Built-in battery charger and UPS function | AC OK and Battery Low signals | Compact embedded and enclosed battery-backed systems |
| LAD Series | 120–600W | Enclosed | Integrated battery charging and UPS backup | Status monitoring; UART on selected higher-power versions | Security and fire alarm systems requiring enclosed higher-power backup |
| SCP Series | 35–75W | Enclosed | External battery connection; no integrated battery charging control | Output voltage detection and temperature compensation | Simple battery-supported security DC systems |
| HEP Series | 100–2300W | Rugged Enclosed | Application-dependent; not primarily a security backup family | Functions vary by model | Outdoor, dusty, humid and other harsh industrial environments |

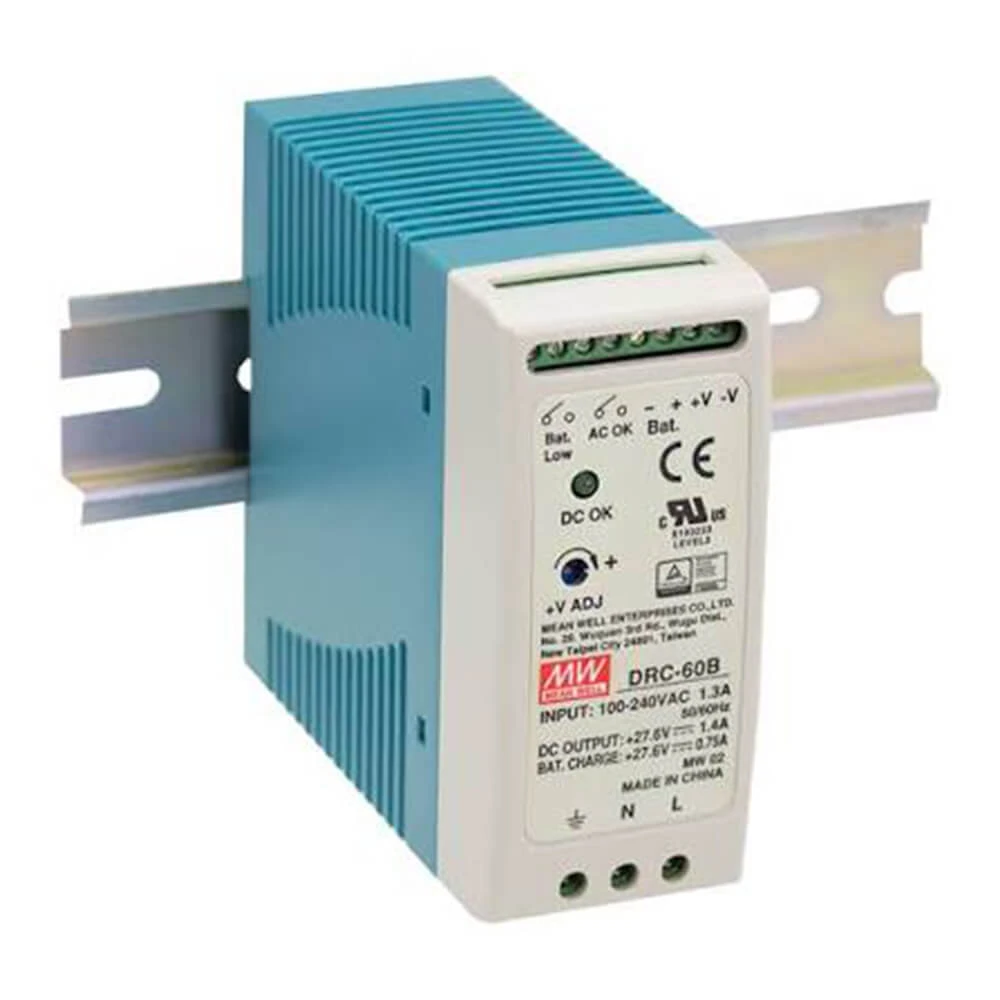

MEAN WELL DRC Series DIN Rail Security Power Supplies
The MEAN WELL DRC Series combines DIN rail installation with integrated battery charging and backup functions for security, access control and other DC systems that require continued operation during AC mains interruption. Choose the required power level below.
DRC-40 Series
40W DIN rail security power supply with integrated battery charging and backup functionality for lower-power DC security systems.
DRC-60 Series
60W DIN rail security power supply for battery-supported DC systems requiring more output capacity than DRC-40.
DRC-100 Series
100W DIN rail security power supply with integrated battery charging and backup operation for medium-power security and control systems.
DRC-180 Series
180W higher-power DRC Series option for DIN rail security and battery backup systems with greater load requirements.

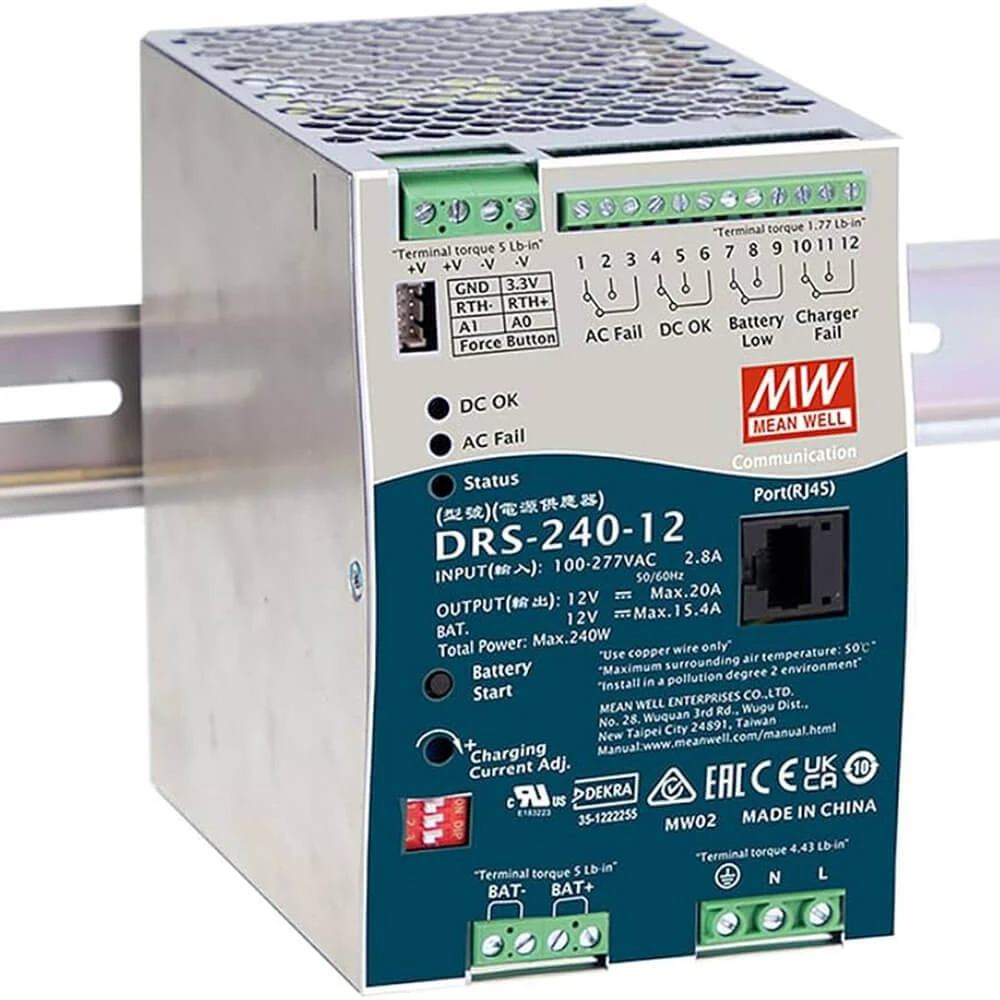

MEAN WELL DRS Series Intelligent DIN Rail DC UPS Power Supplies
The MEAN WELL DRS Series combines DIN rail AC/DC power conversion, battery charging, DC UPS backup and system monitoring in a single platform for higher-power security, fire alarm and emergency communication systems. Choose between the 240W and 480W power levels below.
DRS-240 Series
240W intelligent DIN rail power supply with integrated battery charger, DC UPS function and status monitoring for security and fire alarm applications.
DRS-480 Series
480W higher-power intelligent DIN rail DC UPS solution with battery charging, monitoring and communication support for larger security and emergency systems.

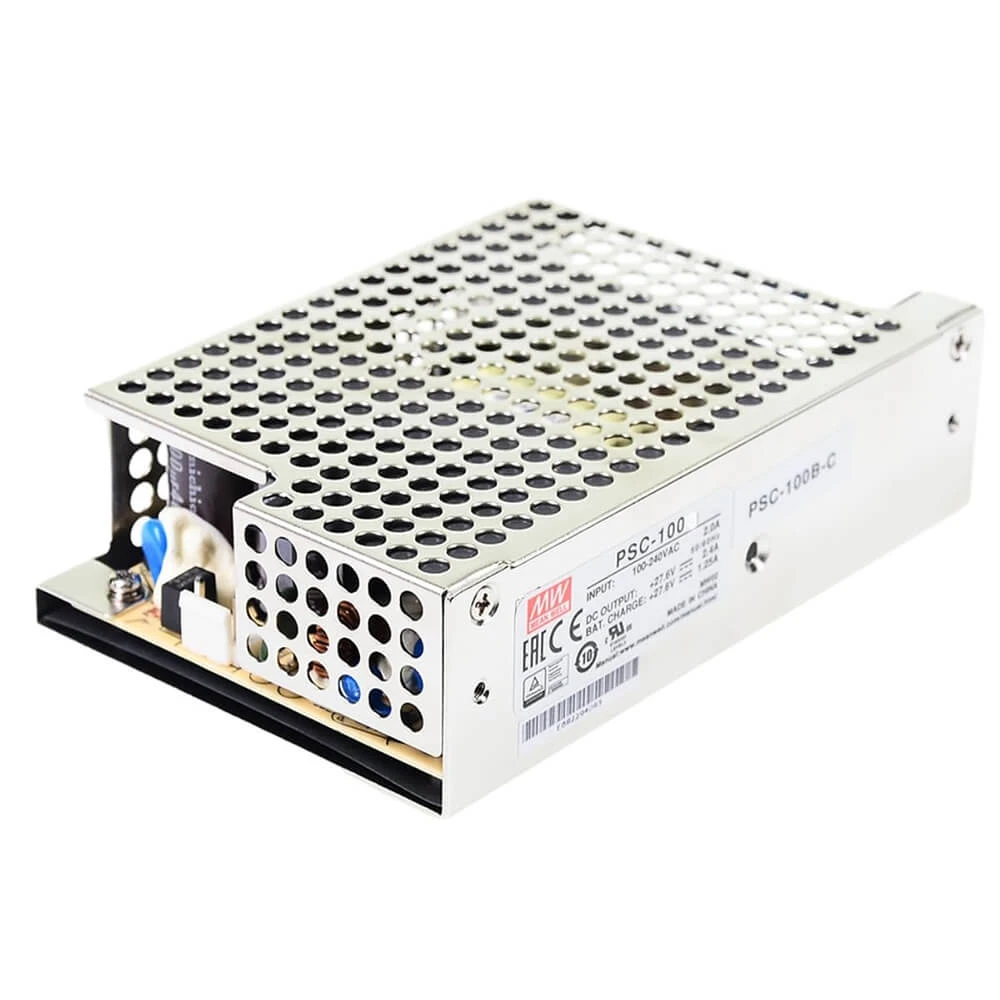

MEAN WELL PSC Series PCB & Enclosed Security Power Supplies
The MEAN WELL PSC Series provides compact PCB and enclosed power supplies with built-in battery charging and UPS functionality for security, access control and other battery-backed DC systems. Choose from 35W to 160W according to required load power and installation format.
PSC-35 Series
35W compact security power supply with integrated battery charger and UPS function for lower-power embedded or enclosed backup systems.
PSC-60 Series
60W PCB or enclosed security power supply for battery-backed systems requiring greater output capacity than PSC-35.
PSC-100 Series
100W battery-backed security power supply with built-in charger and UPS function for medium-power embedded and enclosed DC systems.
PSC-160 Series
160W higher-power PSC Series option with battery charging, UPS functionality and active PFC for security and backup applications.

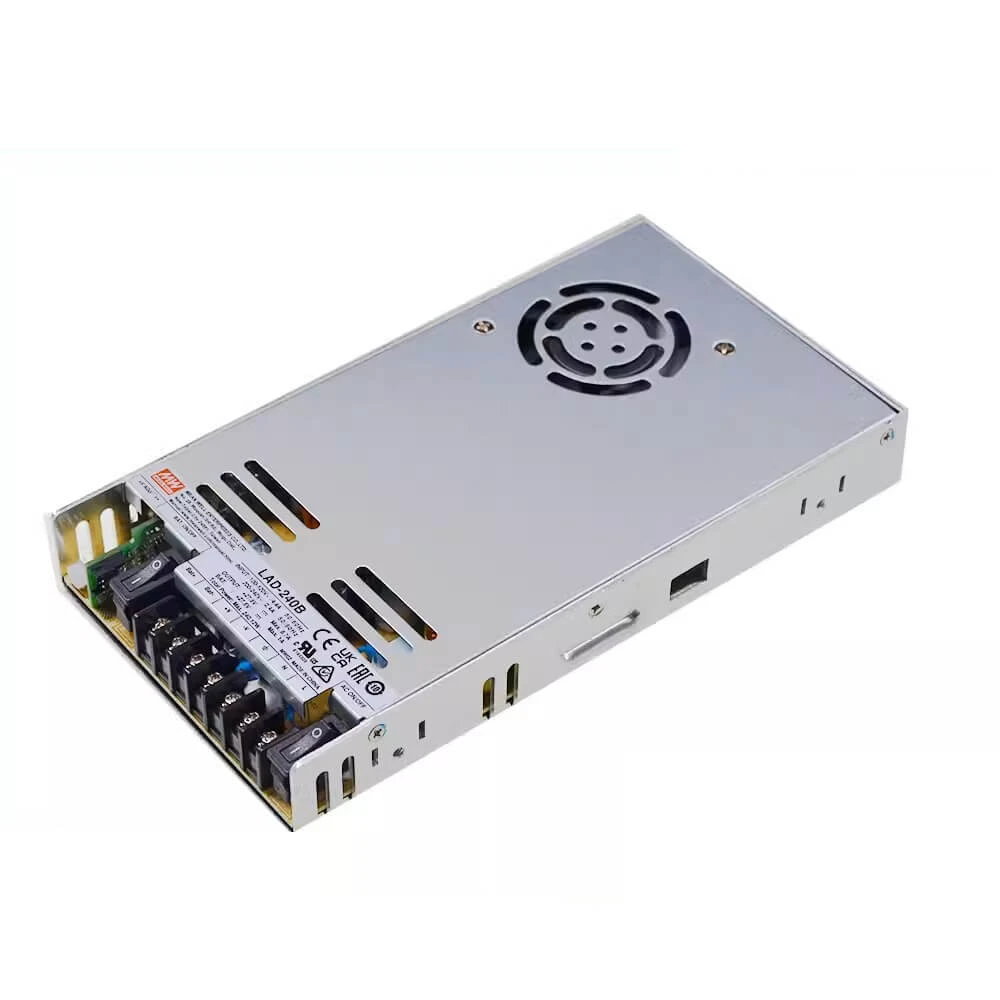

MEAN WELL LAD Series Enclosed Security & Fire Alarm Power Supplies
The MEAN WELL LAD Series provides enclosed power supplies with integrated battery charging, UPS backup and status monitoring for security and fire alarm systems. The range extends from 120W to 600W, with communication functions available on selected higher-power versions.
LAD-120 Series
120W enclosed security and fire alarm power supply with integrated battery charging, UPS backup and status signals for lower-power systems.
LAD-240 Series
240W enclosed battery-backed power supply for security and fire alarm systems requiring higher load capacity and continued DC operation.
LAD-360 Series
360W higher-power enclosed security and fire alarm power supply with battery charging, UPS backup and monitoring functions, including UART options on selected versions.
LAD-600 Series
600W high-power LAD Series option for larger security, fire alarm and battery backup systems requiring enclosed installation and system monitoring.

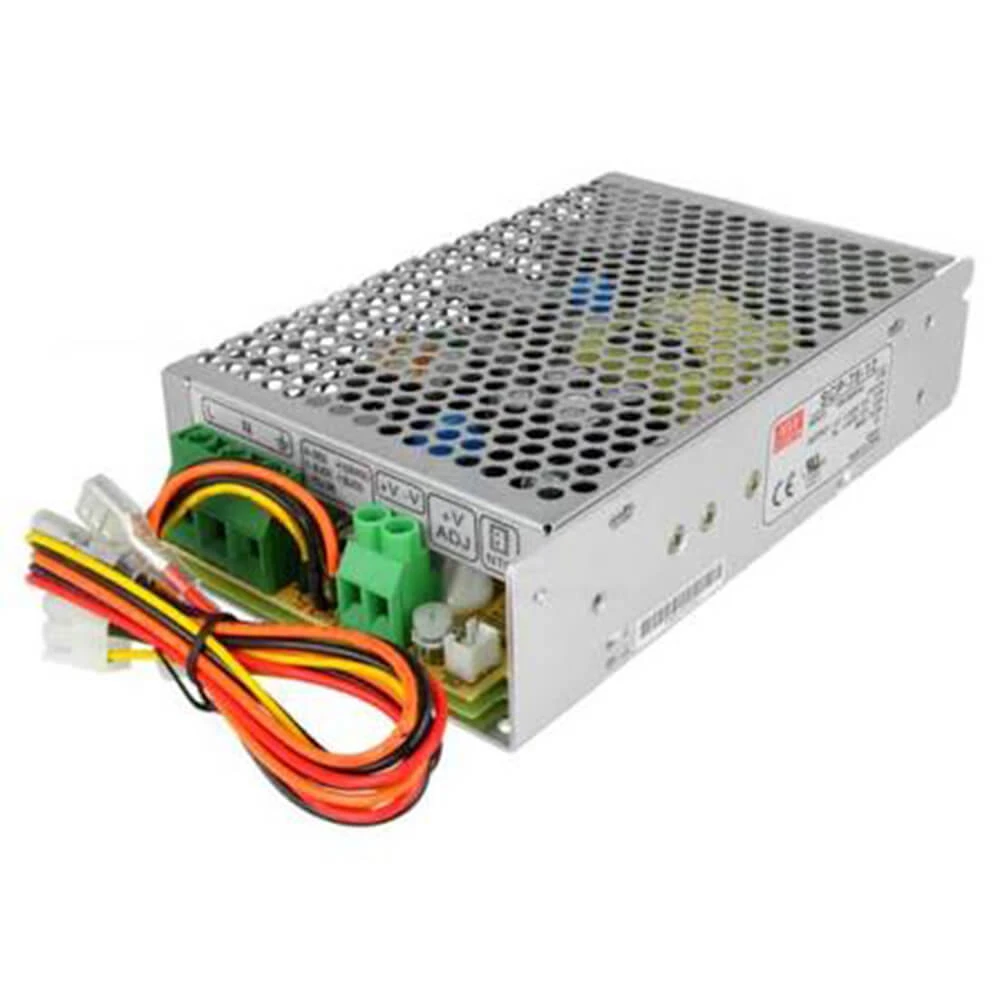

MEAN WELL SCP Series Enclosed Security Power Supplies
The MEAN WELL SCP Series provides enclosed security power supplies for battery-supported DC systems, with external battery connection, output voltage detection and temperature compensation functions. Choose from 35W, 50W and 75W according to the required load level.
SCP-35 Series
35W enclosed security power supply for lower-power 12V or 24V battery-supported DC systems requiring voltage detection and temperature compensation.
SCP-50 Series
50W mid-range enclosed security power supply for battery-supported DC applications requiring more output capacity than SCP-35.
SCP-75 Series
75W higher-power SCP Series option for enclosed security and battery-supported DC systems with greater load requirements.

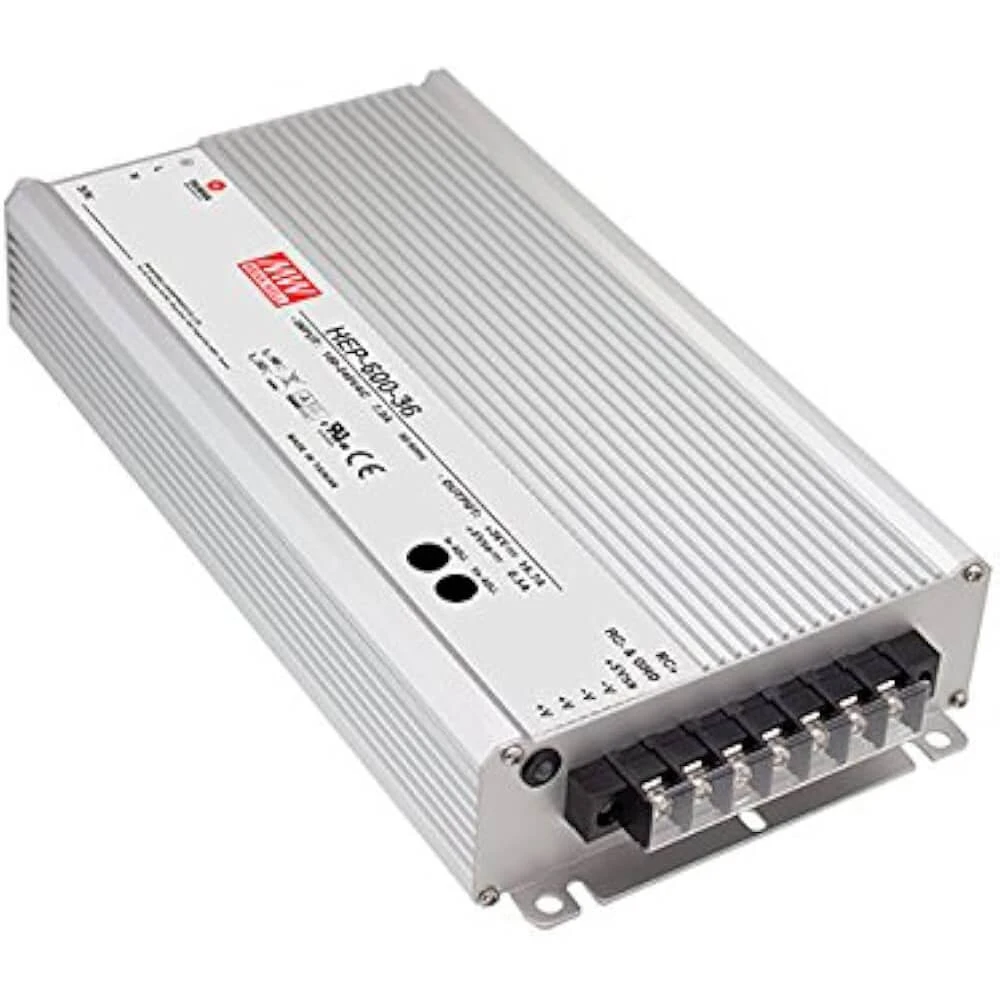

MEAN WELL HEP Series Rugged Power Supplies for Harsh Environments
The MEAN WELL HEP Series is designed for demanding industrial and outdoor applications where power equipment may be exposed to dust, moisture, vibration, temperature variation or other harsh operating conditions. The range covers rugged AC/DC power supplies from 100W to 2300W, together with the HEP-600C battery charger and HEP-2300-HV high-voltage output series for specialized applications.
HEP-100 Series
100W rugged power supply for lower-power industrial and harsh-environment applications.
HEP-150 Series
150W rugged power supply for outdoor and industrial equipment requiring increased output capacity.
HEP-185 Series
185W rugged enclosed power supply for demanding industrial and environmental conditions.
HEP-240 Series
240W rugged power supply for industrial and outdoor systems requiring reliable operation under harsh environmental conditions.
HEP-320 Series
320W rugged industrial power supply for applications requiring higher continuous output power.
HEP-480 Series
480W rugged power supply for higher-load industrial, outdoor and harsh-environment systems.
HEP-600 Series
600W high-power rugged supply for demanding industrial equipment and harsh operating environments.
HEP-600C Series
600W harsh-environment battery charger for lead-acid and lithium battery systems, with three-stage charging and rugged fanless construction.
HEP-1000 Series
1000W high-power rugged solution for larger industrial systems operating in demanding environments.
HEP-2300 Series
2300W high-power rugged AC/DC power supply for demanding industrial, telecom and harsh-environment systems.
HEP-2300-HV Series
2300W high-voltage HEP Series power supply for harsh industrial applications requiring higher DC output voltages.
Choose a MEAN WELL Power Supply by Application
Start with your application if you have not yet selected a product family. The options below point to the MEAN WELL series most relevant to common security, fire alarm, backup power and harsh-environment requirements.
Security & Access Control
For access control panels, security systems and other DC loads that require battery-supported operation or backup during AC mains interruption.
Fire Alarm & Emergency Systems
For fire alarm, emergency communication and related systems requiring backup power, battery charging, monitoring or higher-power operation.
DC UPS & Battery Backup
For systems requiring regulated DC output, battery charging and continued operation when the AC input is interrupted.
Harsh Environment & Outdoor
For industrial and outdoor equipment exposed to dust, moisture, vibration, temperature variation or other demanding operating conditions.
Choose a MEAN WELL Power Supply by Power Range
Use the approximate load power as a starting point, then compare mounting format, battery requirements, monitoring functions and environmental conditions before selecting the final product.
| Power Range | Recommended Series | Typical Selection Direction |
|---|---|---|
| 35–75W | SCP Series / PSC Series |
Compact security and battery-supported systems with relatively light DC loads. |
| 40–180W | DRC Series / PSC Series |
DIN rail or compact PCB/enclosed systems requiring battery charging and backup capability. |
| 120–600W | LAD Series | Enclosed security and fire alarm systems requiring medium to high output power and backup operation. |
| 240–480W | DRS Series | Higher-power DIN rail systems requiring DC UPS, battery charging, monitoring and communication functions. |
| 100–2300W | HEP Series | Industrial and outdoor equipment operating in harsh environmental conditions. |
Selection note: Power ranges overlap between product families. Final selection should also consider mounting type, battery voltage, charging requirements, backup time, monitoring or communication functions, system standards and operating environment.
Why Choose MEAN WELL Security & Special Power Supplies?
The DRC, DRS, PSC, LAD, SCP and HEP families cover different installation formats, power levels, backup requirements and operating environments, allowing system designers to select a power solution according to the actual application rather than relying on a single product architecture.
Wide Power Coverage
Available power levels span from compact 35W security power supplies to rugged industrial models up to 2300W.
Multiple Installation Formats
Choose from DIN rail, PCB and enclosed configurations according to panel layout, integration method and available installation space.
Battery Backup Options
Selected series integrate battery charging and UPS backup functions, while others support external battery-connected security systems.
Monitoring & Communication
Status signals, monitoring functions and communication interfaces are available on selected series for systems requiring external supervision and control.
Security & Fire Alarm Applications
The range includes power solutions for access control, security systems, fire alarm equipment and other applications that require reliable DC power and backup operation.
Harsh Environment Solutions
HEP Series models extend the range to outdoor and industrial environments where dust, moisture, vibration and temperature variation must be considered.
MEAN WELL Security & Special Power Supply FAQs
Use these selection FAQs to compare product families by installation type, backup function, communication capability, application and operating environment.
DRC is positioned as a compact DIN rail security power supply family with integrated battery charging and backup functions across lower power levels. DRS extends the concept to higher power levels and adds more advanced monitoring and communication capabilities for applications such as fire alarm, emergency communication and intelligent DC backup systems.
The DRS and LAD Series are the strongest options in this category for fire alarm and emergency-system applications. DRC can also be suitable for lower-power backup requirements. Final selection should be based on required power, battery system, monitoring signals, communication functions and applicable system standards.
DRC, DRS, PSC and LAD include battery charging and backup or UPS functionality. SCP supports connection to an external battery but does not provide the same integrated battery charging control architecture. HEP is primarily a rugged industrial power supply family rather than a dedicated battery-backup family.
DRC and DRS are the main DIN rail families in this category. DRC covers lower power levels, while DRS is intended for higher-power systems requiring more advanced monitoring and communication functions.
PSC is a compact PCB or enclosed security power supply family suited to embedded and space-constrained systems. LAD uses an enclosed format and extends to higher output power, with security, fire alarm, backup and monitoring functions across 120W to 600W.
HEP is the main family for harsh-environment applications. It is designed for industrial and outdoor systems where dust, moisture, vibration, temperature variation or other demanding operating conditions must be considered.
DRS provides the most advanced monitoring and communication capability in this group, including MODBus and optional CANBus on supported models. LAD also provides status monitoring, with UART available on selected higher-power versions. DRC, PSC and SCP provide more basic status or detection functions depending on the model.
Start with the DC voltage required by the load and the battery system. Then verify load current, charging requirements, backup time, mounting format, monitoring functions and system standards. Not every product family supports every voltage, so final selection should be made from the exact model specifications.
Need Help Choosing a MEAN WELL Security Power Supply?
Tell us your required input voltage, output voltage, load current or power, battery voltage and capacity, required backup time, mounting method, monitoring or communication requirements, and application type.
We can help compare the DRC, DRS, PSC, LAD, SCP and HEP Series and identify the most suitable MEAN WELL power supply for your project.
