September 10, 2023MW Mean Well Meanwell 150W Ultra Slim Step Shape DIN Rail HDR-150 series
Features
‧Ultra slim design with 105mm(6SU) width
‧Universal input 85~264VAC(277VAC operational)
‧No load power consumption<0.3W
‧Isolation class Ⅱ
‧DC output voltage adjustable
‧Protections : Short circuit / Overload / Over voltage
‧Cooling by free air convection
‧DIN rail TS-35/7.5 or 15 mountable
‧Over voltage category Ⅲ
‧LED indicator for power on
‧3 years warranty
Mean Well Power Supply HDR-150 Series Data Sheet Download
Description
HDR-150 is an economical ultra slim 150W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 105mm(6SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to BS EN/EN61 000-3-2, the norm the European Union regulates for harmonic current.
HDR-150 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90.5%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1, UL62368-1, UL61010, BS EN/EN61558-2-1 6) make HDR-150 a very competitive power supply solution for household and industrial applications.

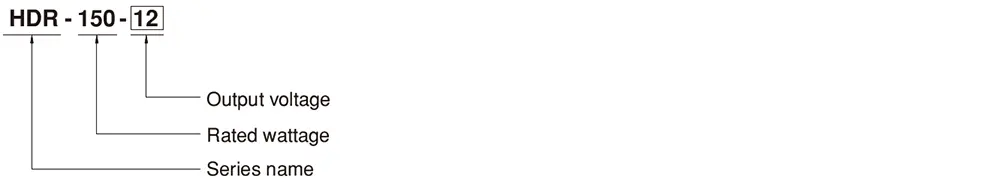

Mean Well Power Supply HDR-150 Series Model Encoding
Specification
| MODEL | HDR-150-12 | HDR-150-15 | HDR-150-24 | HDR-150-48 | ||||
|
OUTPUT |
DC VOLTAGE | 12V | 15V | 24V | 48V | |||
| RATED CURRENT | 115VAC | 10.2A | 8.55A | 5.31A | 2.72A | |||
| 230VAC | 11.3A | 9.5A | 6.25A | 3.2A | ||||
| RATED POWER | 115VAC | 122.4W | 128.3W | 127.4W | 130.6W | |||
| 230VAC | 135.6W | 142.5W | 150W | 153.6W | ||||
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | ||||
| VOLTAGE ADJ. RANGE | 10.8~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | ||||
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||||
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
| SETUP, RISE TIME | 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load | |||||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 12ms/115VAC at full load | |||||||
|
INPUT |
VOLTAGE RANGE | 85 ~ 264VAC (277VAC operational) 120 ~ 370VDC (390VDC operational) | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| EFFICIENCY (Typ.) | 89% | 89.5% | 90.5% | 90.5% | ||||
| AC CURRENT (Typ.) | 3A/115VAC 1.6A/230VAC | |||||||
| INRUSH CURRENT (Typ.) | COLD START 35A/115VAC 70A/230VAC | |||||||
|
PROTECTION |
OVERLOAD |
105 ~ 135% rated output power | ||||||
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed |
||||||||
| OVER VOLTAGE | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) RH non-condensing | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||||||
| OPERATING ALTITUDE | 2000 meters (Note 4) | |||||||
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN62368, EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters | |||||||
|
SAFETY & EMC (Note.7) |
SAFETY STANDARDS | IEC62368-1, UL62368-1, UL61010, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, EAC TP TC 004 approved;
Design refers to BS EN/EN50178, TUV BS EN/EN62368-1 |
||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | |||||
| Conducted | BS EN/EN55032(CISPR32) | Class B | ||||||
| Radiated | BS EN/EN55032(CISPR32) | Class B (note 5) | ||||||
| Harmonic Current (Note 6) | BS EN/EN61000-3-2 | Class A | ||||||
| Voltage Flicker | BS EN/EN61000-3-3 | ——- | ||||||
|
EMC IMMUNITY |
BS EN/EN55024, BS EN/EN61000-6-2 | |||||||
| Parameter | Standard | Test Level /Note | ||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, criteria A | ||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, criteria A | ||||||
| Surge | BS EN/EN61000-4-5 | Level 4,2KV/L-N, criteria A | ||||||
| Conducted | BS EN/EN61000-4-6 | Level 3, criteria A | ||||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, criteria A | ||||||
| Voltage Dips and interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods,
＞95% interruptions 250 periods |
||||||
|
OTHERS |
MTBF | 3046.3K hrs min. Telcordia SR-332 (Bellcore); 535.9K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 105*90*54.5mm (W*H*D) | |||||||
| PACKING | 0.31Kg; 32pcs/11Kg/1.0CUFT | |||||||
Application
- Household control system
- Building automation
- Industrial control system
- Factory automation
- Electro-mechanical apparatus
