September 16, 2023MW Mean Well Meanwell 10W Single Output Switching Power Supply DIN Rail MDR-10 Series
Features
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- Built in DC OK active signal
- LED indicator for power on
- No load power consumption<0.75W
- 100% full load burn-in test
- 3 years warranty
Description

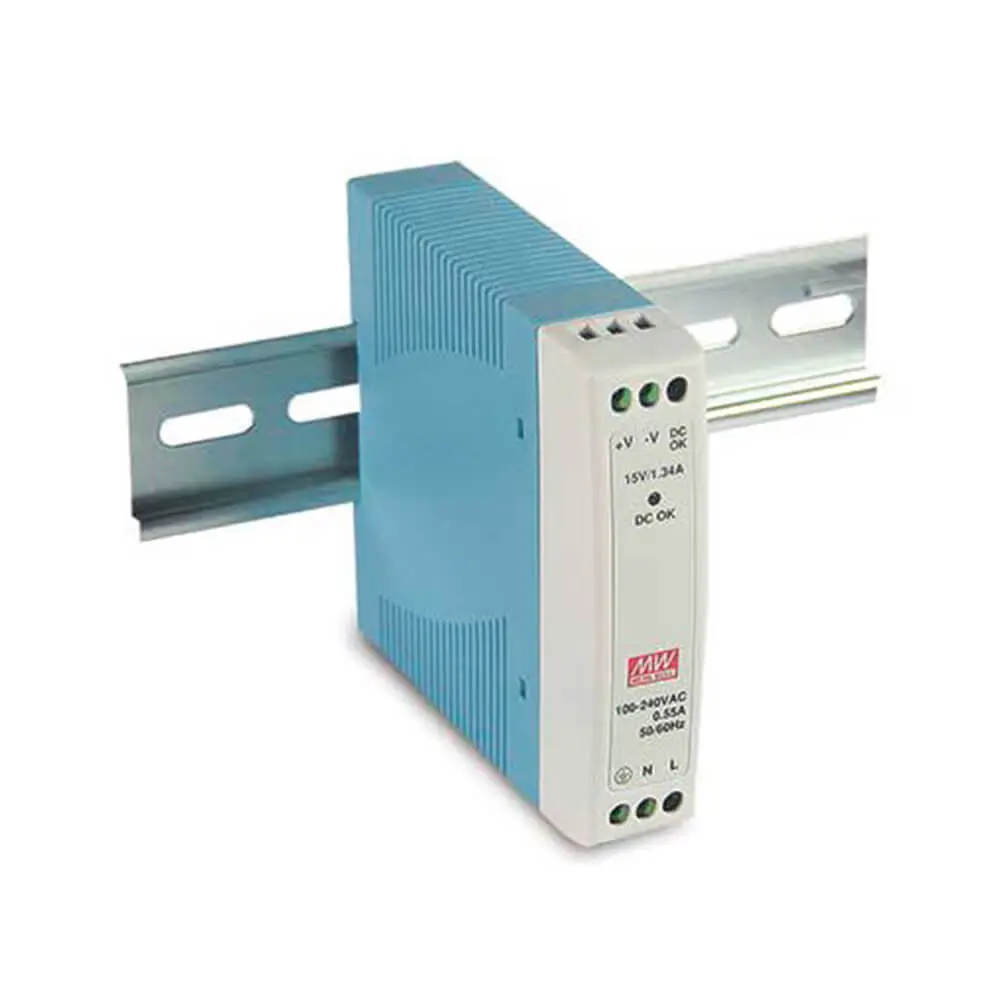

The Mean Well MDR-10 series is a reliable and versatile DIN rail power supply. It is designed to provide a stable and efficient power source for industrial automation, control systems, and other applications that require DC power.
The MDR-10 series offers a wide input voltage range, typically ranging from 85V to 264V AC, making it suitable for use in various regions around the world. It features a compact and slim design, allowing for easy installation on standard DIN rails.
With its high-quality construction and built-in protections, the MDR-10 series ensures reliable and safe operation. It offers short circuit, overload, and overvoltage protections, which help safeguard connected devices from potential damage.
The MDR-10 series is available in different models with various output voltage options, ranging from 5V to 24V DC with the model No. MDR-10-5, MDR-10-12, MDR-10-15 and MDR-10-24, allowing you to choose the appropriate power supply for your specific needs. It also boasts high efficiency and low energy consumption, contributing to cost savings and environmental friendliness.
Overall, the Mean Well MDR-10 series is a dependable DIN rail power supply that combines performance, versatility, and safety, making it an excellent choice for a wide range of industrial and automation applications.
Mean Well Power Supply MDR-10 Series Data Sheet Download
Specification
| MODEL | MDR-10-5 | MDR-10-12 | MDR-10-15 | MDR-10-24 | |
|
OUTPUT |
DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 2A | 0.84A | 0.67A | 0.42A | |
| CURRENT RANGE | 0 ~ 2A | 0 ~ 0.84A | 0 ~ 0.67A | 0 ~ 0.42A | |
| RATED POWER | 10W | 10W | 10W | 10W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| SETUP, RISE TIME Note.5 | 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 120ms/230VAC 25ms/115VAC at full load | ||||
|
INPUT |
VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 77% | 81% | 81% | 84% | |
| AC CURRENT (Typ.) | 0.33A/115VAC 0.21A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD START 35A/115VAC 70A/230VAC | ||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||
|
PROTECTION |
OVERLOAD |
Above 105% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
|
OVER VOLTAGE |
5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| FUNCTION | DC OK ACTIVE SIGNAL (max.) | 3.75 ~ 6V / 50mA | 9 ~ 13.5V / 40mA | 11.5 ~ 16.5V / 40mA | 18 ~ 27V / 20mA |
|
ENVIRONMENT |
WORKING TEMP. | -20 ~ +70℃ (Refer to “Derating Curve”) | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||||
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1, IS13252(Part1)/IEC60950-1 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035, BS EN/EN61000-6-1, BS EN/EN61204-3, light industry level, EAC TP TC 020 | ||||
|
OTHERS |
MTBF | 3334.7K hrs min. Telcordia SR-332 (Bellcore); 584.0K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 22.5*90*100mm (W*H*D) | ||||
| PACKING | 0.15Kg; 72pcs/11.8Kg/1.04CUFT | ||||
