MW Mean Well Meanwell 25W AC-DC Triple Output Industrial Desktop Adaptor GP25A Series
Features
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14, Class I power unit
- No load power consumption< 0.3W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- -20~+70℃ working temperature
- LED indicator for power on
- Dual output available (optional)
- ± 16V /+48V also available for video system (optional, order NO. : GP25A58F-R1B)
- 3 years warranty
Description
The GP25A is a 25W triple-output desktop green adapter series that meets the stringent energy-saving standards set by the USA EISA 2007/DoE (Level VI). Designed with a Class I architecture and featuring a standard IEC320-C14 inlet, this adapter incorporates a functional ground (FG) and is housed in a 94V-0 flame-retardant plastic enclosure to effectively prevent electric shock hazards.
Operating within a wide input voltage range of 90-264VAC, the GP25A series includes three models with output voltage configurations of +5V/+12V/-5V, +5V/+12V/-12V, and +5V/+15V/-15V, with an optional configuration of +16V/+48V/-16V. Key advantages include ultra-low no-load power consumption of less than 0.3W, reliable operation across a broad ambient temperature range of -20 to +70℃, comprehensive protection features, and a three-year warranty. The series is fully compliant with international safety standards, including CB, TUV, UL, CE, and FCC.
The GP25A is a versatile multi-output green adapter that offers superior safety, reliability, and quality, making it an ideal choice for various applications.

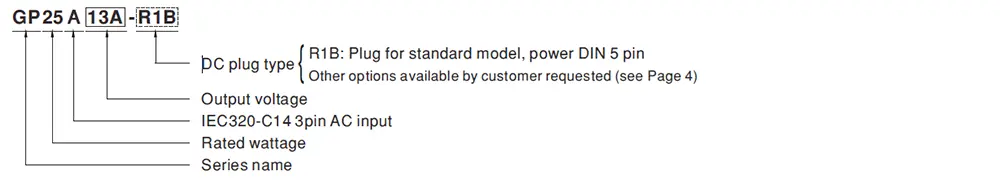

Mean Well Industrial Desktop Adaptor GP25A Series Model Encoding
Mean Well Industrial Desktop Adaptor GP25A Series Data Sheet Download
Specification
| ORDER NO. | GP25A13A-R1B | GP25A13D-R1B | GP25A14E-R1B | GP25A58F-R1B (option) | |||||||||||
|
OUTPUT |
SAFETY MODEL NO. | GP25A13A | GP25A13D | GP25A14E | GP25A58F | ||||||||||
| DC VOLTAGE Note.2 | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 16V | 48V | -16V | |||
| RATED SET CURRENT | 2.5A | 1.2A | 0.3A | 2.5A | 1A | 0.3A | 2.5A | 0.8A | 0.3A | 1.05A | 0.087A | 1.05A | |||
| CURRENT RANGE | 0.5 ~ 2.5A | 0.2 ~ 1.2A | 0.1 ~ 0.3A | 0.5 ~ 2.5A | 0.2 ~ 1A | 0.1 ~0.3A | 0.5 ~ 2.5A | 0.1 ~ 0.8A | 0.1 ~ 0.3A | 0.2 ~ 1.05A | 17mA ~ 87mA | 0.2 ~ 1.05A | |||
| RATED POWER | 28.5W | 28W | 29W | 37.77W | |||||||||||
| RIPPLE & NOISE (max.) Note.3 | 50mVp-p | 100mVp-p | 50mVp-p | 60mVp-p | 120mVp-p | 50mVp-p | 100mVp-p | 150mVp-p | 50mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |||
| VOLTAGE TOLERANCE Note.4 | ±5.0% | -5.0 ~ +10% | ±3.0% | ±5.0% | -5.0 ~ +5.0% | ±3.0% | ±5.0% | -5.0 ~ +15% | ±3.0% | ±5.0% | ±5.0% | -5.0 ~ +10% | |||
| LINE REGULATION Note.5 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||
| LOAD REGULATION Note.6 | ±5.0% | ±5.0% | ±3.0% | ±5.0% | ±5.0% | ±3.0% | ±5.0% | ±5.0% | ±3.0% | ±5.0% | ±5.0% | ±5.0% | |||
| SETUP, RISE, HOLD UP TIME | 800ms, 50ms, 20ms / 230VAC 1200ms, 50ms, 16ms / 115VAC at full load | ||||||||||||||
|
INPUT |
VOLTAGE RANGE Note.7 | 90 ~ 264VAC 135~ 370VDC | |||||||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||||||
| EFFICIENCY (Typ.) | 80% | 80% | 80.5% | 85% | |||||||||||
| AC CURRENT | 0.8A / 100VAC 0.4A / 230VAC | ||||||||||||||
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | ||||||||||||||
| LEAKAGE CURRENT (max.) | 0.75mA / 240VAC | ||||||||||||||
|
PROTECTION |
OVERLOAD | 110 ~ 160% rated output power | |||||||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||||||||
| OVER VOLTAGE | Protection type: Clamp by zener diode (5V only), output short | ||||||||||||||
|
ENVIRONMENT |
WORKING TEMP. | -20 ~ +70℃ (Refer to “Derating Curve”) | |||||||||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (-20 ~ 40℃) | ||||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||||||||
|
SAFETY & EMC (Note. 8) |
SAFETY STANDARDS | IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP25A58F-R1B), EAC TP TC 004 approved | |||||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC, I/P-FG:2121VDC | ||||||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||||||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | ||||||||||||
| Conducted emission | BS EN/EN55032(CISPR32), FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||||||||
| Radiated emission | BS EN/EN55032(CISPR32), FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||||||||
| Voltage flicker | BS EN/EN61000-3-3 | ——- | |||||||||||||
|
EMC IMMUNITY |
Parameter | Standard | Test Level /Note | ||||||||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | |||||||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||||||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 2, 1KV | |||||||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/L-N, 2KV/L, N-PE | |||||||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 2, 3V | |||||||||||||
| Voltage dips, interruption | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods,
＞95% interruptions 250 periods |
|||||||||||||
|
OTHERS |
LIFE | 3 years: 100% load 40℃, 8hours/day | |||||||||||||
| MTBF | 620K hrs min. MIL-HDBK-217F (25℃) | ||||||||||||||
| DIMENSION | 107.5*67*36mm (L*W*H) | ||||||||||||||
| PACKING | 0.3kg; 54pcs / 20kg / CARTON | ||||||||||||||
| CONNECTOR | PLUG | See page 4 | |||||||||||||
| CABLE | See page 4 | ||||||||||||||
Applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
