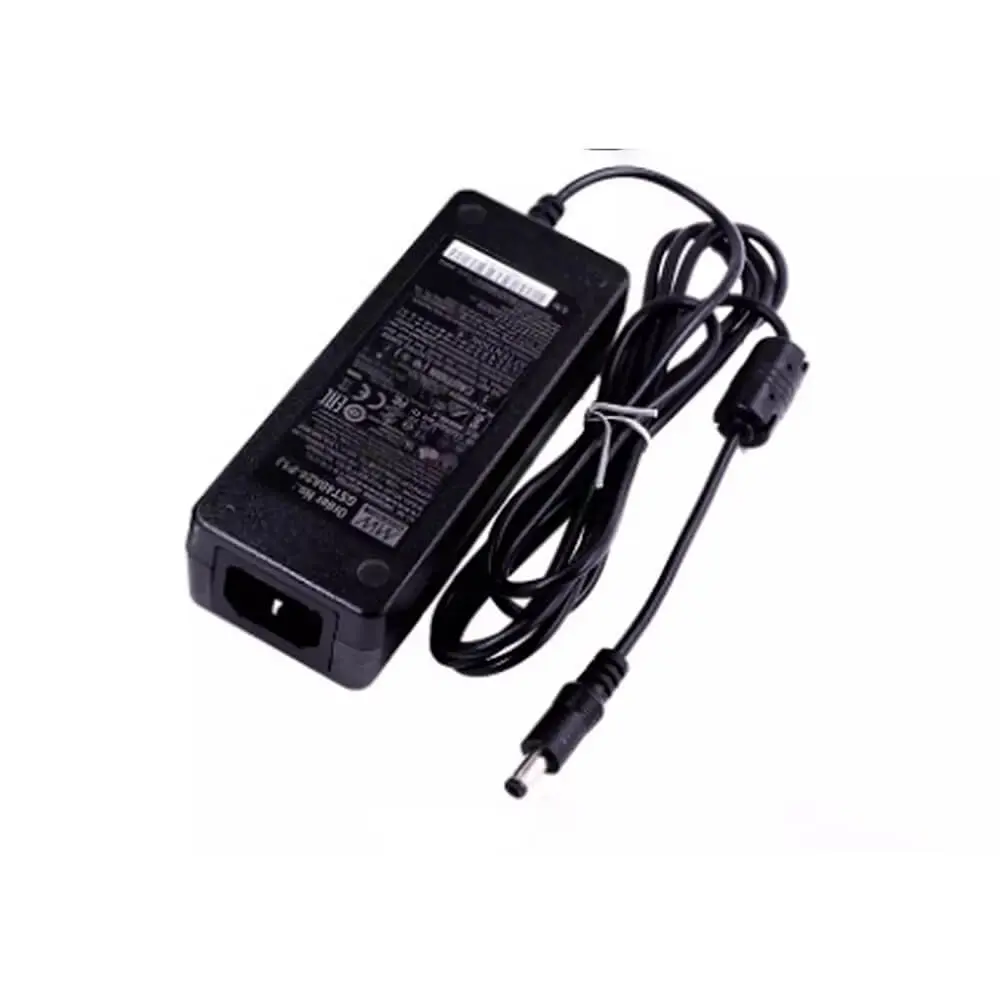

MW Mean Well Meanwell 40W AC-DC Reliable Green Industrial Adaptor GST40A Series
Features
- Global certificates
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14,Class I power unit
- No load power consumption< 0.075W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS.EU ErP and CoC Version 5
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- Pass LPS
- -30-+70℃ wide range working temperature
- LED indicator for power on
Description
The Mean Well GST40A series is a highly reliable, 40W desktop style single-output green adaptor series designed to connect electrical equipment externally. It is a class I power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopts an input range from 85VAC to 264VAC.
The GST40A series supplies different models with output voltages ranging between 5VDC and 48VDC (GST40A05-P1J, GST40A07-P1J, GST40A09-P1J, GST40A12-P1J, GST40A15-P1J, GST40A18-P1J, GST40A24-P1J, GST40A28-P1J, GST40A48-P1J) to satisfy the demands of various consumer electronic devices.
The Mean Well GST40A series power adapters are a versatile and efficient choice for industrial and commercial applications, providing reliable power with a focus on energy efficiency and safety compliance.
Mean Well Industrial Desktop Adaptor GST40A Series Model Encoding
Mean Well Industrial Desktop Adaptor GST40A Series Data Sheet Download
Specification
| ORDER NO. | GST40A05-P1J | GST40A07-P1J | GST40A09-P1J | GST40A12-P1J | GST40A15-P1J | GST40A18-P1J | GST40A24-P1J | GST40A48-P1J | ||
|
OUTPUT |
SAFETY MODEL NO. | GST40A05 | GST40A07 | GST40A09 | GST40A12 | GST40A15 | GST40A18 | GST40A24 | GST40A48 | |
| DC VOLTAGE Note.2 | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | ||
| RATED CURRENT | 5A | 5.34A | 4.45A | 3.34A | 2.67A | 2.22A | 1.67A | 0.84A | ||
| CURRENT RANGE | 0 ~ 5A | 0 ~ 5.34A | 0 ~ 4.45A | 0 ~ 3.34A | 0 ~ 2.67A | 0 ~ 2.22A | 0 ~ 1.67A | 0 ~ 0.84A | ||
| RATED POWER (max.) | 25W | 40W | 40W | 40W | 40W | 40W | 40W | 40W | ||
| RIPPLE & NOISE (max.) Note.3 | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | ||
| VOLTAGE TOLERANCE Note.4 | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | ±2.5% | ||
| LINE REGULATION Note.5 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | ±2.5% | ||
| SETUP, RISE TIME Note.6 | 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 50ms / 230VAC 15ms / 115VAC at full load | |||||||||
|
INPUT |
VOLTAGE RANGE | 90 ~ 264VAC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) | 84.5% | 87.5% | 88.5% | 89.5% | 90% | 90% | 91% | 92% | ||
| AC CURRENT (Typ.) | 1A / 115VAC 0.5A / 230VAC | |||||||||
| INRUSH CURRENT (max.) | Cold start 35A / 115AC 65A / 230VAC | |||||||||
| LEAKAGE CURRENT (max.) | 0.75mA / 240VAC | |||||||||
|
PROTECTION |
OVERLOAD |
105 ~ 150% rated output power | ||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
|
OVER VOLTAGE |
5.2 ~ 6.8V | 7.8 ~ 10.2V | 9.4 ~ 12.2V | 12.6 ~ 16.2V | 15.7 ~ 20.3V | 18.9 ~ 24.3V | 25.2 ~ 32.4V | 50.4 ~ 64.8V | ||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | ||||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0~50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
|
SAFETY & EMC (Note. 9) |
SAFETY STANDARDS Note. 7 | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN//EN62368-1, BSMI CNS 14336-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 60950.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | |||||||
|
Conducted emission |
BS EN/EN55032(CISPR32), FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B), CNS13438, GB17625.1 EAC TP TC 020, MSIP KN32 |
Class B |
||||||||
|
Radiated emission |
BS EN/EN55032(CISPR32), FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B), CNS13438, GB17625.1 EAC TP TC 020, MSIP KN32 |
Class B |
||||||||
| Harmonic current | BS EN/EN61000-3-2, GB9254 | Class A | ||||||||
| Voltage flicker | BS EN/EN61000-3-3 | ——- | ||||||||
|
EMC IMMUNITY |
BS EN/EN55035 | |||||||||
| Parameter | Standard | Test Level /Note | ||||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air; Level 4, 8KV contact | ||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 2, 1KV | ||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line , 2KV/Line-FG | ||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 2, 3V | ||||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 2, 3A/m | ||||||||
| Voltage dips, interruption | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods,
＞95% interruptions 250 periods |
||||||||
|
OTHERS |
MTBF | 3493.6K hrs min. Telcordia SR-332 (Bellcore); 728.2K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 125*50*31.5mm (L*W*H) | |||||||||
| PACKING | 0.28Kg; 40pcs/12.02Kg/1.04CUFT | |||||||||
|
CONNECTOR |
PLUG | See page 4~5; Other type available by customer requested | ||||||||
| CABLE | See page 4~5; Other type available by customer requested | |||||||||
Applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
