MW Mean Well Meanwell 60W AC-DC Reliable Green Industrial Adaptor GST60A Series
Features
- Global certificates
- Universal AC input / Full range
- 3 pole AC inlet IEC320-C14,Class I power unit
- No load power consumption< 0.075W
- Energy efficiency Level VI
- Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS.EU ErP and CoC Version 5
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Fully enclosed plastic case
- Pass LPS
- -30-+70℃ wide range working temperature
- LED indicator for power on
Description

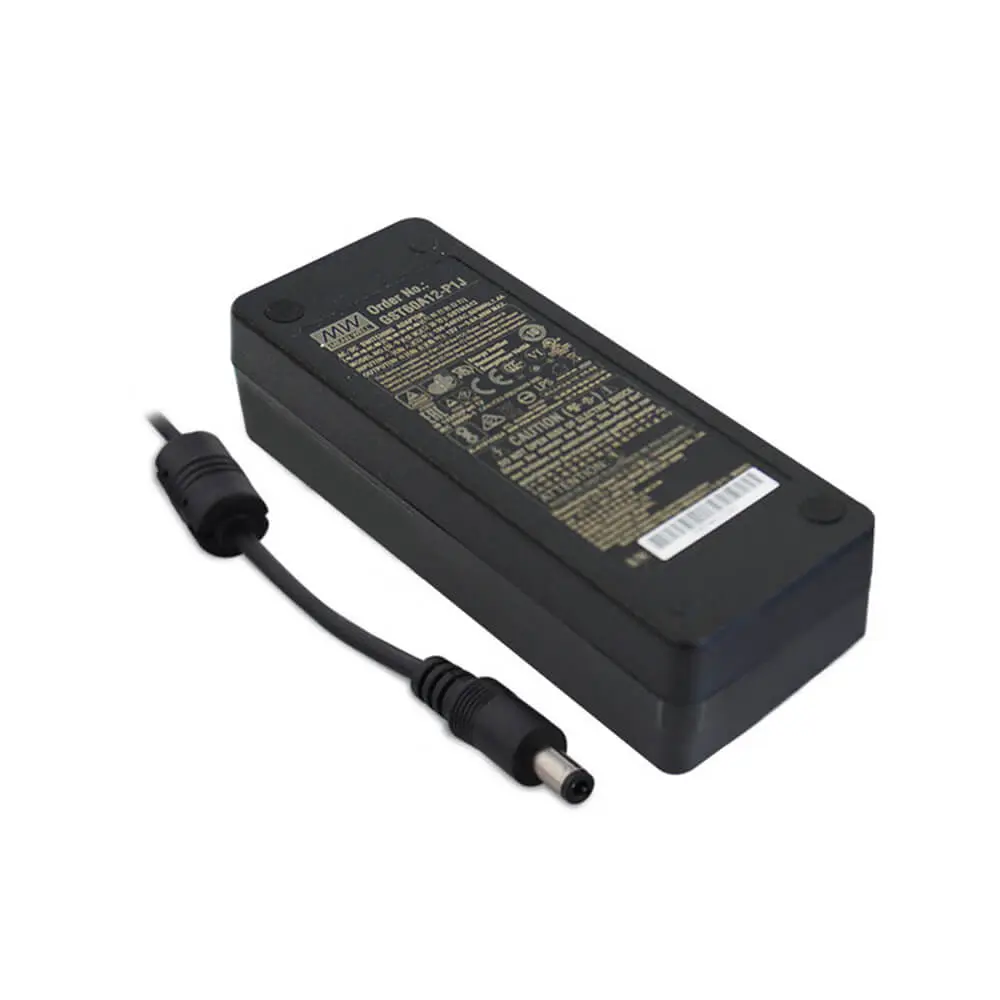

The Mean Well GST60A series is a line of AC-DC industrial desktop power adaptors designed for various applications, providing reliable power with a focus on efficiency and safety. The GST60A series delivers a maximum output power of 60W, making it suitable for a range of devices. The series includes various models with different output voltages, such as 12V and 24V, offering output currents of up to 5A depending on the specific model (e.g., GST60A12-P1J provides 12V at 5A, and GST60A24-P1J provides 24V at 2.5A). The GST60A series complies with energy efficiency regulations, including DoE Level VI and CoC Version 5, ensuring minimal energy waste and reduced operating costs. These power adapters come with multiple safety certifications, including TUV (EU), UL (North America), CCC (China), and others, which ensure compliance with global safety standards. The adapters are designed to operate in a wide temperature range of -30°C to +70°C, making them suitable for various environments. The Mean Well GST60A series offers a robust and efficient solution for powering a variety of devices in industrial and commercial settings, backed by comprehensive safety certifications and energy efficiency compliance.
Mean Well Industrial Desktop Adaptor GST60A Series Model Encoding
Mean Well Industrial Desktop Adaptor GST60A Series Data Sheet Download
Specification
| ORDER NO. | GST60A05-P1J | GST60A07-P1J | GST60A09-P1J | GST60A12-P1J | GST60A15-P1J | GST60A18-P1J | GST60A24-P1J | GST60A48-P1J | ||
|
OUTPUT |
SAFETY MODEL NO. | GST60A05 | GST60A07 | GST60A09 | GST60A12 | GST60A15 | GST60A18 | GST60A24 | GST60A48 | |
| DC VOLTAGE Note.2 | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | ||
| RATED CURRENT | 6A | 6A | 6A | 5A | 4A | 3.33A | 2.5A | 1.25A | ||
| CURRENT RANGE | 0 ~ 6A | 0 ~ 6A | 0 ~ 6A | 0 ~ 5A | 0 ~ 4A | 0 ~ 3.33A | 0 ~ 2.5A | 0 ~ 1.25A | ||
| RATED POWER (max.) | 30W | 45W | 54W | 60W | 60W | 60W | 60W | 60W | ||
| RIPPLE & NOISE (max.) Note.3 | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | ||
| VOLTAGE TOLERANCE Note.4 | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | ||
| LINE REGULATION Note.5 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±2.5% | ||
| SETUP, RISE TIME Note.6 | 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 50ms / 230VAC 15ms / 115VAC at full load | |||||||||
|
INPUT |
VOLTAGE RANGE Note.7 | 90 ~ 264VAC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) | 85.5% | 88.5% | 89% | 89.5% | 89.5% | 89.5% | 90.5% | 92% | ||
| AC CURRENT (Typ.) | 1.4A / 115VAC 1A / 230VAC | |||||||||
| INRUSH CURRENT (max.) | Cold start 35A / 115AC 65A / 230VAC | |||||||||
| LEAKAGE CURRENT (max.) | 0.75mA / 240VAC | |||||||||
|
PROTECTION |
OVERLOAD | 105 ~ 150% rated output power | ||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 5.2 ~ 6.8V | 7.8 ~ 10.2V | 9.4 ~ 12.2V | 12.6 ~ 16.2V | 15.7 ~ 20.3V | 18.9 ~ 24.3V | 25.2 ~ 32.4V | 50.4 ~ 64.8V | ||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | ||||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
|
SAFETY & EMC (Note. 10) |
SAFETY STANDARDS Note. 8 | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS 14336-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 60950.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | |||||||
| Conducted emission | BS EN/EN55032(CISPR32), FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B), CNS13438, GB17625.1 EAC TP TC 020, MSIP KN32 |
Class B |
||||||||
|
Radiated emission |
BS EN/EN55032(CISPR32), FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B), CNS13438, GB17625.1 EAC TP TC 020, MSIP KN32 |
Class B |
||||||||
| Harmonic current | BS EN/EN61000-3-2, GB9254 | Class A | ||||||||
| Voltage flicker | BS EN/EN61000-3-3 | ——- | ||||||||
|
EMC IMMUNITY |
BS EN/EN55035 | |||||||||
| Parameter | Standard | Test Level /Note | ||||||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air; Level 4, 8KV contact | ||||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | ||||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 2, 1KV | ||||||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line, 2KV/Line-FG | ||||||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 2, 3V | ||||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 2, 3A/m | ||||||||
| Voltage dips, interruption | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods,
＞95% interruptions 250 periods |
||||||||
|
OTHERS |
MTBF | 3620.0K hrs min. Telcordia SR-332 (Bellcore); 709.7K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 125*50*31.5mm (L*W*H) | |||||||||
| PACKING | 0.305Kg; 40pcs/13.02Kg/1.04CUFT | |||||||||
| CONNECTOR | PLUG | See page 4~5; Other type available by customer requested | ||||||||
| CABLE | See page 4~5; Other type available by customer requested | |||||||||
Applications
- Consumer electronic devices
- Telecommunication devices
- Office facilities
- Industrial equipments
