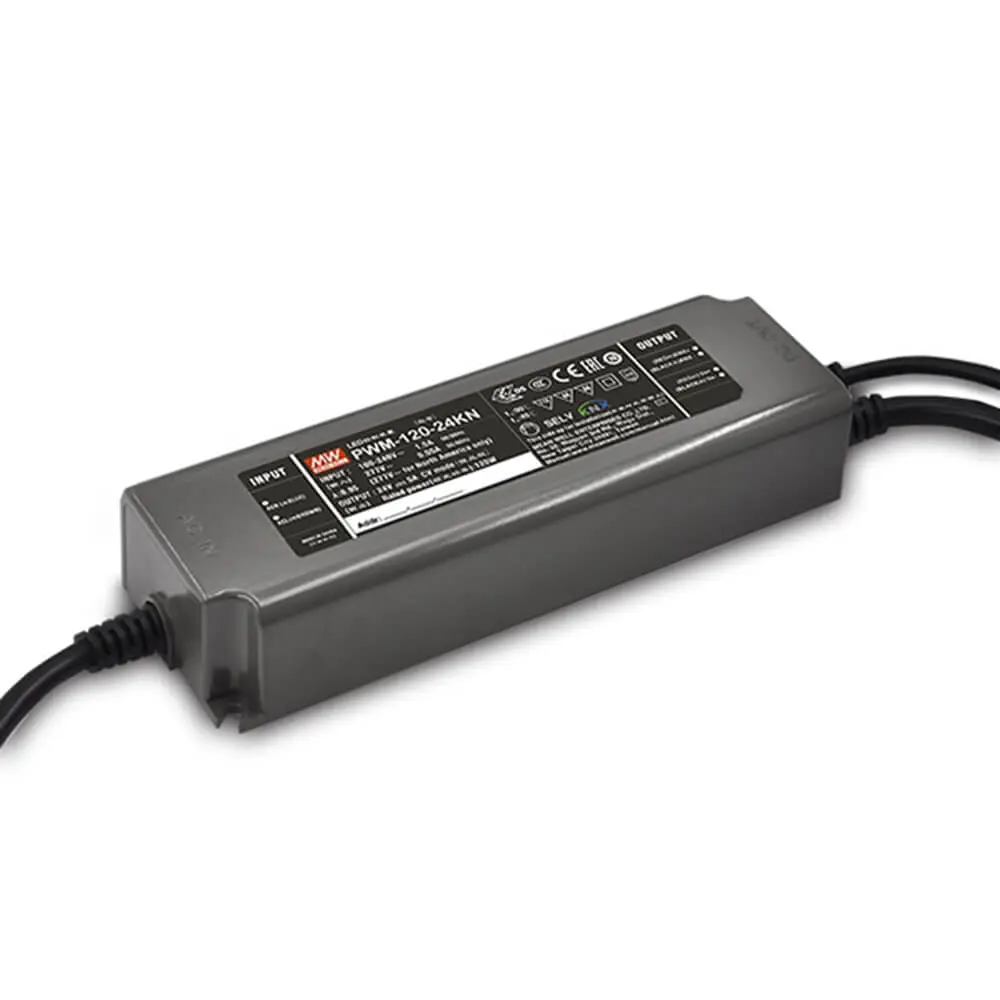

March 9, 2023MW Mean Well Meanwell 120W Constant Voltage PWM Output KNX LED Driver PWM-120-KN Series
Features
- Constant Voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE1789-2015 and EU Ecodesign SVM requirement
- Min. dimming level 0.01%
- Plastic housing with class II design
- Standby power consumption<0.5W
- Integrated KNX control protocol
- No need KNX-DALI gateway
- Typical lifetime>50000 hours
- 5 years warranty
Mean Well KNX LED Driver PWM-120-KN Series Data Sheet Download
Description
PWM-120-KN series is a 120W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs.The built-in KNX interface is to avoid using the complicated KNX-DALI gateway. PWM KN operates from 90~305VAC and offers two models with output voltage 12V & 24V.Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40°C ~ +90°C case temperature under free air convection. The minimal dimming level low to 0.01% is suitable for low light level applications e.g. cinema. The output frequency is changeable up to 4KHz complaint IEEE1789-2015 no risk requirement and EU Ecodesign stroboscopic visibilitymeasure(SVM) requirement providing a great solution for health concern due to light fickering.

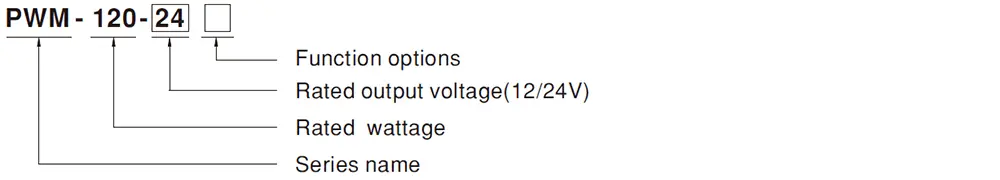

Mean Well KNX LED Driver PWM-120-KN Series Model Encoding
| Type | Function | Note |
| KN | KNX control technology | In stock |
| KNBST | KNX control technology with BST14 connector | by request |
Specification
| MODEL | PWM-120-12 | PWM-120-24 | |
|
OUTPUT |
DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 10A | 5A | |
| RATED POWER | 120W | 120W | |
| DIMMING RANGE | 0 ~ 100% | ||
| PWM FREQUENCY (Typ.) | 200~4000Hz user changeable via ETS | ||
| SETUP, RISE TIME Note.2 | 500ms, 80ms/ 230VAC or 115VAC | ||
| HOLD UP TIME (Typ.) | 16ms/230VAC or 115VAC | ||
|
INPUT |
VOLTAGE RANGE Note.3 | 90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||
| TOTAL HARMONIC DISTORTION | THD< 20% (@load≧60%/115VAC, 230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION” section) |
||
| EFFICIENCY (Typ.) | 88.5% | 90% | |
| AC CURRENT (Typ.) | 1.3A / 115VAC 0.65A / 230VAC 0.55A / 277VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 60A (twidth=520μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | ||
| LEAKAGE CURRENT | <0.25mA / 277VAC | ||
| STANDY POWER CONSUMPTION | <0.5W | ||
|
PROTECTION |
OVERLOAD | 108 ~ 130% rated output power | |
| Hiccup mode, recovers automatically after fault condition is removed | |||
| SHORT CIRCUIT | Shut down o/p voltage, re-power on to recover | ||
|
OVER VOLTAGE |
15 ~ 17V | 28 ~ 34V | |
| Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |
| MAX. CASE TEMP. | Tcase=+90℃ | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃, except 0 ~ 40℃ for 12V) | ||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||
|
SAFETY & EMC |
SAFETY STANDARDS Note.5 | ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14, GB19510.1,
EAC TP TC 004 approved |
|
| KNX STANDARDS | Certified protocol | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION Note.6 | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV), EAC TP TC 020 | ||
|
OTHERS |
MTBF | 1915.2K hrs min. Telcordia SR-332 (Bellcore); 205.8K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 191*63*37.5mm (L*W*H) | ||
| PACKING | 0.80Kg; 15pcs/13.0Kg/0.87CUFT | ||
Applications
- LED strip lighting
- Indoor LED lighting
- LED decorative lighting
- LED architecture lighting
