May 1, 2022MW Mean Well Meanwell 150-200W Constant Current Mode LED Driver ELG-200-C series
Features
- Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer;
- 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI; Auxiliary DC output
- Typical lifetime>50000 hours
- 5 years warranty
Mean Well LED Driver ELG-200-C series Data Sheet Download
Description
ELG-200-C series is a 200W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-200-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

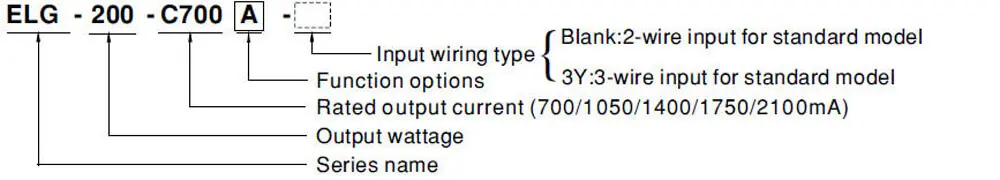

Mean Well LED Driver ELG-200-C series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed. | In Stock |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| DA | IP67 | DALI control technology. | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | In Stock |
Specification
| MODEL | ELG-200-C700 | ELG-200-C1050 | ELG-200-C1400 | ELG-200-C1750 | ELG-200-C2100 | |
|
OUTPUT |
RATED CURRENT | 700mA | 1050mA | 1400mA | 1750mA | 2100mA |
|
RATED POWER |
200VAC ~ 305VAC | |||||
| 200.2W | 199.5W | 198.8W | 199.5W | 201.6W | ||
| 100VAC ~ 180VAC | ||||||
| 150.5W | 150.15W | 149.8W | 150.5W | 151.2W | ||
| CONSTANT CURRENT REGION Note.2 | 142 ~ 286V | 95 ~ 190V | 71 ~ 142V | 57 ~ 114V | 48 ~ 96V | |
| OPEN CIRCUIT VOLTAGE(max.) | 300V | 200V | 160V | 120V | 105V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 350 ~ 700mA | 525 ~ 1050mA | 700 ~ 1400mA | 875 ~ 1750mA | 1050 ~ 2100mA | ||
| CURRENT RIPPLE | 5.0% max. @rated current | |||||
| CURRENT TOLERANCE | ±5.0% | |||||
| SET UP TIME Note.4 | 800ms/115VAC, 500ms/230VAC | |||||
|
INPUT |
VOLTAGE RANGE Note.3 | 100 ~ 305VAC 142 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR (Typ.) | PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||||
| EFFICIENCY (Typ.) | 93% | 93% | 92% | 92% | 92% | |
| AC CURRENT (Typ.) | 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC | |||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type | |||||
|
PROTECTION |
SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 315 ~ 370V | 205 ~ 250V | 160 ~ 180V | 125 ~ 150V | 105 ~ 130V | |
| Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||
| MAX. CASE TEMP. | Tcase=+85℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB19510.14,GB19510.1;EAC TP TC 004;BIS IS15885(for 700A only);
IP65 or IP67;KC61347-1,KC61347-2-13 approved |
||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB17625.1,
GB17743;EAC TP TC 020; KC KN15,KN61547 |
|||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV,
Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547 |
|||||
|
OTHERS |
MTBF | 958.9K hrs min. Telcordia SR-332 (Bellcore) 235Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 244*71*37.5 mm (L*W*H) | |||||
| PACKING | 1.22Kg; 12pcs /15.2kg / 0.72CUFT | |||||
Application
- LED street lighting
- LED harbor lighting
- LED bay lighting
- LED greenhouse lighting
- LED flood lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
