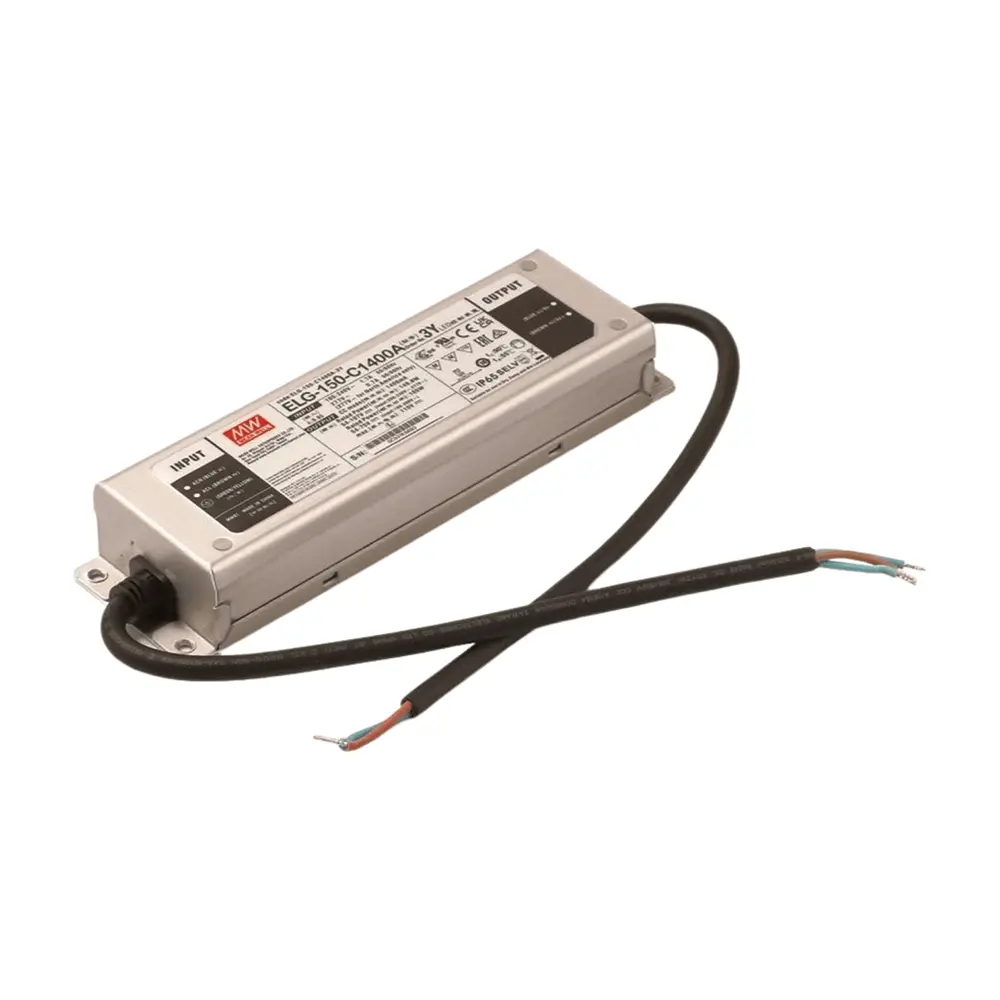

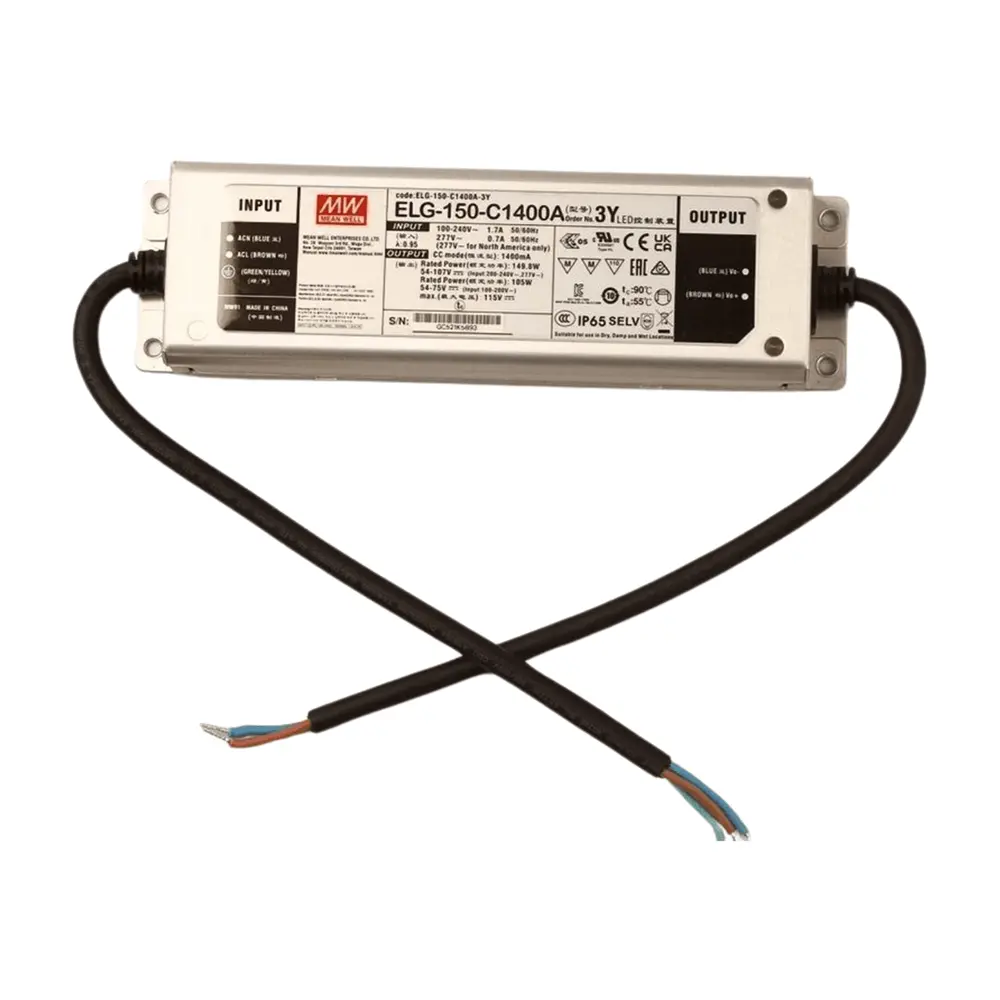

May 1, 2022MW Mean Well Meanwell 105-150W Constant Current Mode LED Driver ELG-150-C series
Features
- Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer;
- 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI; Auxiliary DC output
- Typical lifetime>50000 hours
- 5 years warranty
Mean Well LED Driver ELG-150-C series Data Sheet Download
Description
ELG-150-C series is a 150W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-150-C operates from 100~360VAC and offers models with different rated current ranging between 500mA and 2100mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

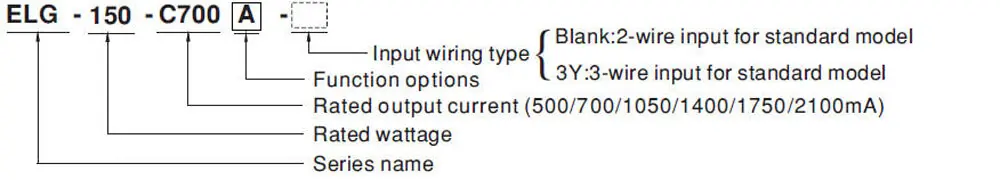

Mean Well LED Driver ELG-150-C series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed. | In Stock |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| DA | IP67 | DALI control technology. | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | In Stock |
| BE | IP67 | 3 in 1 dimming function and Auxiliary DC output | In Stock |
Specification
| MODEL | ELG-150-C500 | ELG-150-C700 | ELG-150-C1050 | ELG-150-C1400 | ELG-150-C1750 | ELG-150-C2100 | |||
|
OUTPUT |
RATED CURRENT | 500mA | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | ||
|
RATED POWER |
100VAC ~ 180VAC | ||||||||
| (For All the Types) | 105W | 105W | 105W | 105W | 105W | 105W | |||
| 200VAC ~ 305VAC | |||||||||
| (Except for BE Type) | 150W | 149.8W | 150.15W | 149.8W | 150.5W | 151.2W | |||
| (For BE Type only) | 135W | 134.4W | 134.4W | 133W | 133W | 134.4W | |||
| CONSTANT CURRENT REGION Note.2 | 150 ~ 300V | 107 ~ 214V | 72 ~ 143V | 54 ~ 107V | 43 ~ 86V | 36 ~ 72V | |||
| CONSTANT CURRENT REGION Note.2
(For BE Type only) |
150 ~ 270V | 107 ~ 192V | 72 ~ 128V | 54 ~ 95V | 43 ~ 76V | 36 ~ 64V | |||
| OPEN CIRCUIT VOLTAGE(max.) | 315V | 225V | 151V | 115V | 94V | 80V | |||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||||
| 250 ~ 500mA | 350 ~ 700mA | 525 ~ 1050mA | 700 ~ 1400mA | 875 ~ 1750mA | 1050 ~ 2100mA | ||||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||||||
| CURRENT TOLERANCE | ±5.0% | ||||||||
| AUXILIARY DC OUTPUT | Nominal 15V(deviation 11.5~15.5V)@0.3A for BE-Type only | ||||||||
| SET UP TIME Note.4 | 1600ms/115VAC | 500ms/230VAC | |||||||
|
INPUT |
VOLTAGE RANGE Note.3 |
100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr (Please refer to “STATIC CHARACTERISTIC” section) | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
|
POWER FACTOR (Typ.) |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | ||||||||
| EFFICIENCY (Typ.) | 92% | 92% | 92% | 91% | 91% | 91% | |||
| EFFICIENCY (Typ.)(for BE Type only) | 90% | 90% | 90% | 89% | 89% | 89% | |||
| AC CURRENT (Typ.) | 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC | ||||||||
| INRUSH CURRENT(Typ.) | COLD START 65A(twidth=485μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | ||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC |
||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type
Standby power consumption <0.5W for B / AB / DA-Type |
||||||||
|
PROTECTION |
SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||
|
OVER VOLTAGE |
320 ~ 360V | 230 ~ 265V | 155 ~ 180V | 128 ~ 150V | 96 ~ 106V | 82 ~ 92V | |||
| Shut down o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||||
| MAX. CASE TEMP. | Tcase=+90℃ | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750(type”HL”)(except for BE-type), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14,EAC TP TC 004,BIS IS15885(for 700A,1050A,700DA only),
IP65 or IP67; KC61347-1,KC61347-2-13 approved |
|||||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB17743,
GB17625.1;EAC TP TC 020; KC KN15,KN61547 |
||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV,
Line-Line 4KV), EAC TP TC 020; KC KN15,KN61547 |
||||||||
|
OTHERS |
MTBF | 1098.95K hrs min. Telcordia SR-332 (Bellcore) 308.5Khrs min. MIL-HDBK-217F (25℃) | |||||||

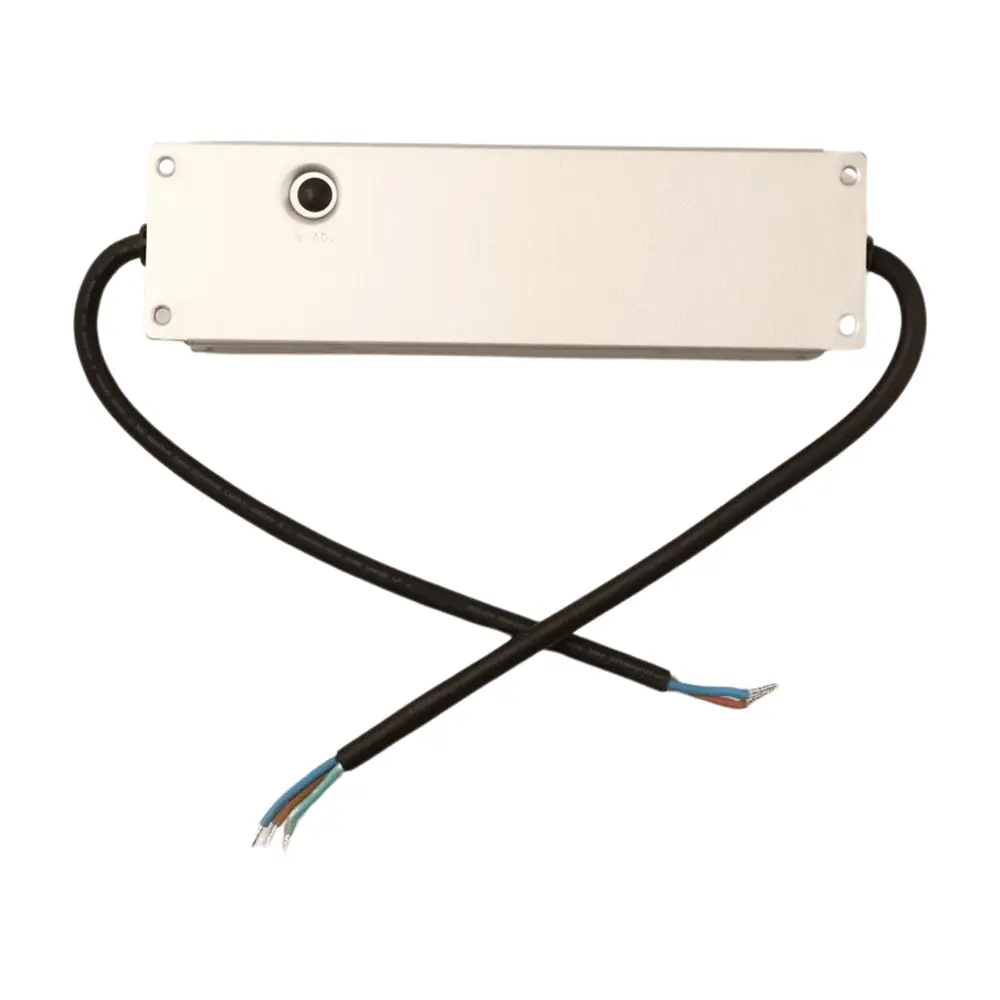

| DIMENSION | 219*63*35.5 mm (L*W*H) | ||||||||

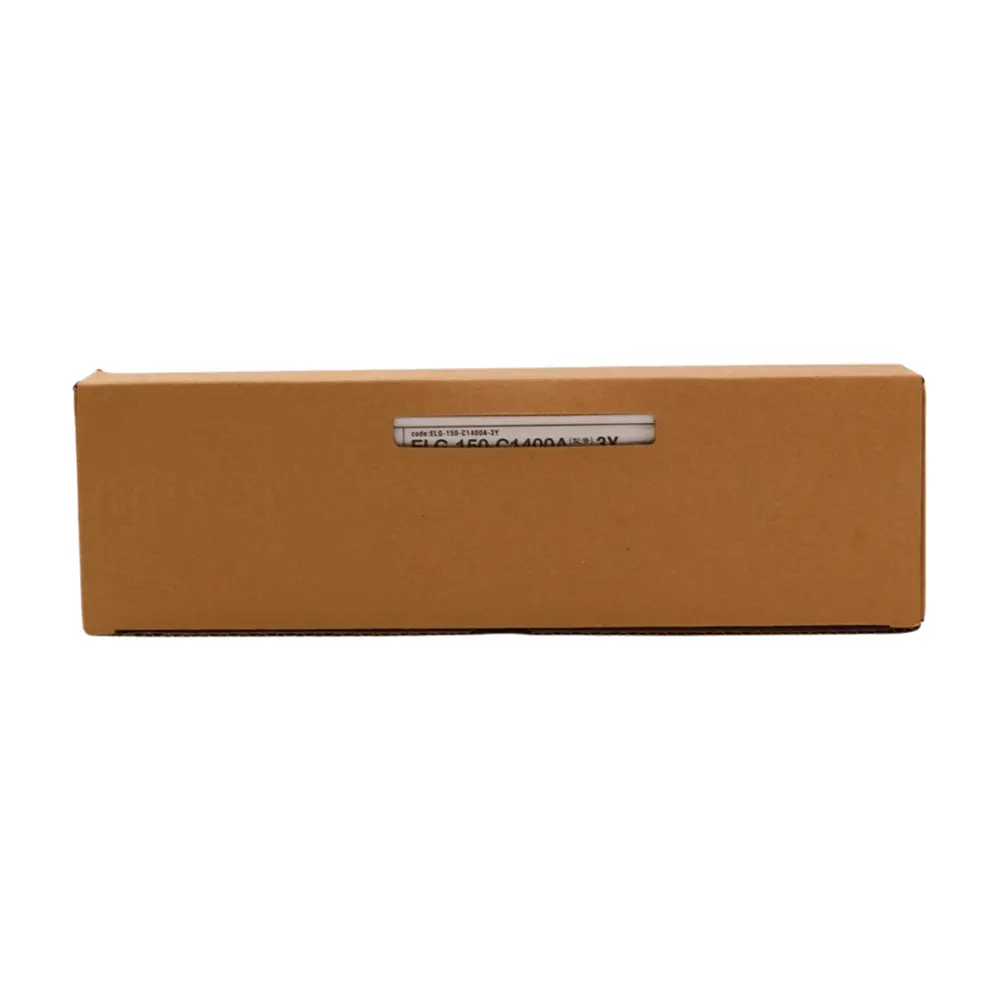

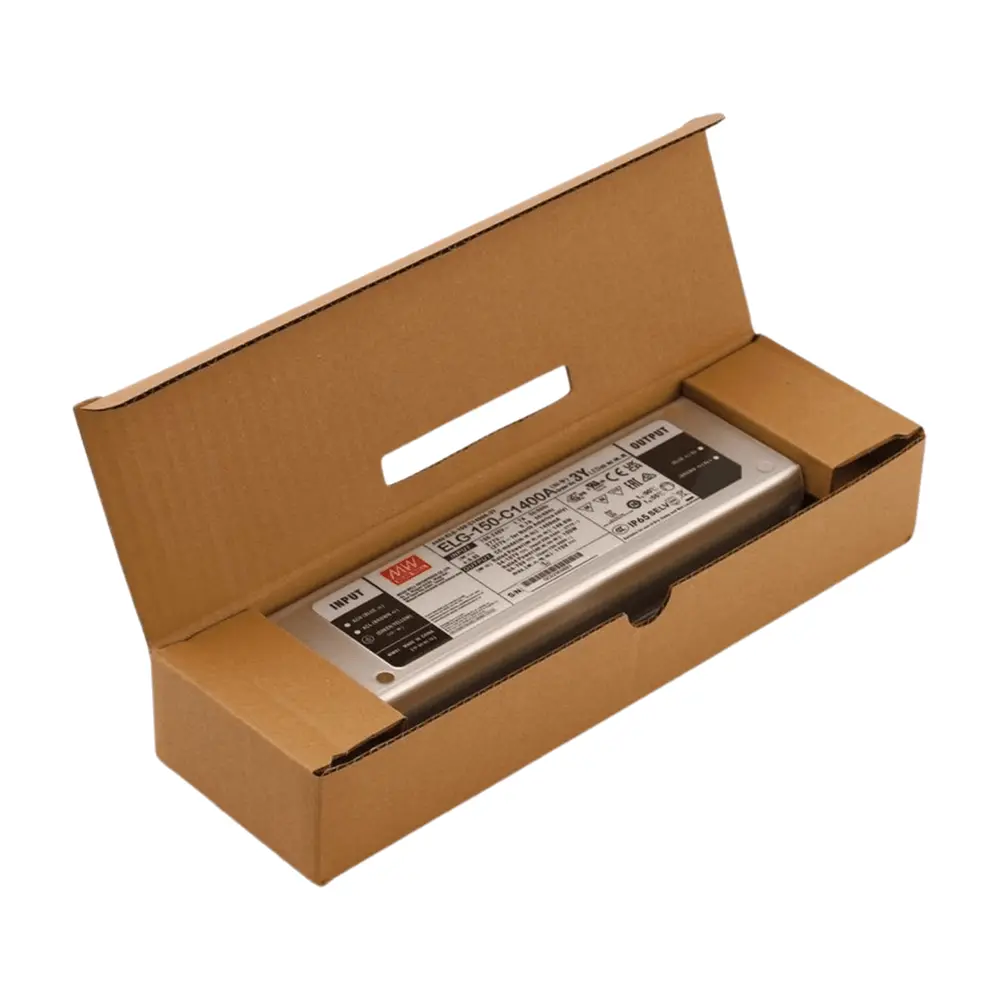

| PACKING | 0.95Kg; 16pcs / 16.0kg / 0.77CUFT | ||||||||
Application
- LED street lighting
- LED harbor lighting
- LED bay lighting
- LED greenhouse lighting
- LED flood lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
