MEAN WELL XLG-240-DA2 Series 240W DALI-2 LED Driver

Overview

The MEAN WELL XLG-240-DA2 Series is a 240W constant power mode AC/DC LED driver designed for LED lighting applications that require DALI-2 dimming, stable output, and reliable indoor or outdoor installation.

As part of the MEAN WELL product range, the XLG-240-DA2 Series belongs to the AC/DC LED driver category and supports a wide 100–305Vac input range. The series includes XLG-240-L-DA2, XLG-240-M-DA2, and XLG-240-H-DA2 model options for different output voltage and current requirements.

With its metal housing, IP67 rating, surge protection, DALI-2 dimming capability, and optional 12V/250mA auxiliary power version, the XLG-240-DA2 Series is suitable for street lighting, floodlight lighting, bay lighting, stage lighting, fishing lighting, horticulture lighting, and other outdoor LED lighting systems.

Features

• 240W constant power mode AC/DC LED driver
• Wide 100–305Vac input range for global LED lighting applications
• DALI-2 dimming function with minimum dimming level of 8%
• Output current adjustable via built-in potentiometer
• Available in XLG-240-L-DA2, XLG-240-M-DA2, and XLG-240-H-DA2 model options
• Full power output at 70–100% constant power mode operation
• Metal case with IP67 protection for outdoor applications
• Surge protection with 6KV/4KV rating
• Optional 12V/250mA auxiliary power version available
• Short circuit and over temperature protection
• Standby power consumption less than 0.5W for standard DA2 type
• Typical lifetime greater than 50,000 hours
• 5 years warranty

Need help selecting the right output range? Compare the main specifications of XLG-240-L-DA2, XLG-240-M-DA2, and XLG-240-H-DA2 below.

Models in the XLG-240-DA2 Series

This product line includes standard models and India version options: XLG-240-L-DA2, XLG-240-M-DA2, XLG-240-H-DA2, XLG-240I-L-DA2, XLG-240I-M-DA2, and XLG-240I-H-DA2.

All models share the same 240W constant power mode LED driver design, 100–305Vac input range, DALI-2 dimming function, metal housing, and IP67 protection for indoor or outdoor LED lighting applications. DA2-A auxiliary power versions are also available by request for applications requiring an additional 12V/250mA auxiliary DC output.

XLG-240-L-DA2

XLG-240-L-DA2 is the standard L-type model in the MEAN WELL XLG-240-DA2 Series. It provides 700mA rated current, 239.4W rated power, a 178–342V constant current region, and a 350–1050mA current adjustment range. This model is suitable for LED modules that require a higher output voltage range with lower operating current.

XLG-240-M-DA2

XLG-240-M-DA2 is the standard M-type model in the MEAN WELL XLG-240-DA2 Series. It provides 1400mA rated current, 239.4W rated power, a 90–171V constant current region, and a 700–2100mA current adjustment range. This model is suitable for LED modules that require a medium output voltage and current range.

XLG-240-H-DA2

XLG-240-H-DA2 is the standard H-type model in the MEAN WELL XLG-240-DA2 Series. It provides 4900mA rated current, 239.6W rated power, a 27–56V constant current region, and a 2400–6660mA current adjustment range. This model is suitable for LED modules that require a lower output voltage range with higher operating current.

XLG-240I-L-DA2

XLG-240I-L-DA2 is the India version of the L-type model. It follows the same main output range as XLG-240-L-DA2, with 700mA rated current, 239.4W rated power, a 178–342V constant current region, and a 350–1050mA current adjustment range. The India version includes input over voltage protection and is intended for projects that require this market-specific option.

XLG-240I-M-DA2

XLG-240I-M-DA2 is the India version of the M-type model. It follows the same main output range as XLG-240-M-DA2, with 1400mA rated current, 239.4W rated power, a 90–171V constant current region, and a 700–2100mA current adjustment range. The India version includes input over voltage protection for market-specific project requirements.

XLG-240I-H-DA2

XLG-240I-H-DA2 is the India version of the H-type model. It follows the same main output range as XLG-240-H-DA2, with 4900mA rated current, 239.6W rated power, a 27–56V constant current region, and a 2400–6660mA current adjustment range. The India version includes input over voltage protection and is suitable for projects requiring the India-specific configuration.

DA2-A Auxiliary Power Option

The XLG-240-DA2 Series also supports DA2-A versions by request. DA2-A models provide the same main DALI-2 control function and output range structure, with an additional 12V/250mA auxiliary DC output for applications that require auxiliary power support.

Related MEAN WELL XLG DA2 LED Driver Models

If you are evaluating similar MEAN WELL DALI-2 LED driver options for outdoor lighting, constant power LED applications, or different output power requirements, the following LED driver page and XLG DA2 models may also be relevant for comparison:

• MEAN WELL LED Drivers – Browse AC/DC LED driver options for indoor and outdoor LED lighting systems, including constant power, dimming, and outdoor-rated driver solutions.
• XLG-100-DA2 Series – Lower-power 100W DALI-2 LED driver option for applications requiring less output capacity than the XLG-240-DA2 Series.
• XLG-150-DA2 Series – 150W DALI-2 LED driver option for mid-power outdoor lighting projects below the 240W level.
• XLG-200-DA2 Series – 200W DALI-2 LED driver option for projects requiring slightly less output capacity than the XLG-240-DA2 Series.

DALI-2 Dimming Operation

The MEAN WELL XLG-240-DA2 Series includes DALI-2 dimming control for LED lighting systems that require digital dimming, addressable control, and flexible lighting management.

According to the datasheet, the DA2 type supports DALI-2 control technology with output current adjustable via the built-in potentiometer. The DALI interface uses DA+ and DA- control wires, and the DALI protocol supports 16 groups and 64 addresses.

With DALI-2 dimming, the XLG-240-DA2 Series is suitable for street lighting, floodlight lighting, bay lighting, stage lighting, fishing lighting, horticulture lighting, and other projects where controlled dimming and outdoor LED driver reliability are required.

DALI-2 Control Interface

The DALI signal is applied between DA+ and DA-. The driver uses a purple wire for DA+ and a pink wire for DA-, while the LED output uses red for V+ and black for V-.

This makes the XLG-240-DA2 Series suitable for lighting systems that require a DALI-2 LED driver with separated power output and digital dimming control wiring.

Minimum Dimming Level

The XLG-240-DA2 Series supports DALI-2 dimming with a minimum level of 8%. This is useful for applications where the lighting system needs controlled low-level output instead of simple ON/OFF operation.

For projects with strict dimming performance requirements, users should confirm the controller compatibility, dimming range, LED module load, and final system behavior before mass installation.

Output Current Adjustment

The DA2 version supports output current adjustment via the built-in potentiometer. This allows the output current range to be matched with the LED module requirements during system design or installation.

XLG-240-L-DA2 supports a 350–1050mA adjustment range, XLG-240-M-DA2 supports a 700–2100mA adjustment range, and XLG-240-H-DA2 supports a 2400–6660mA adjustment range. These options help users select the correct output range for different LED module voltage and current requirements.

Auxiliary Power Option

The XLG-240-DA2 Series also provides a DA2-A option by request, with 12V/250mA auxiliary power available for applications that require an additional auxiliary output.

Need wiring and installation details for the XLG-240-DA2 Series? Continue below to review mechanical dimensions, DALI-2 wiring, auxiliary power option, safety approvals, and datasheet download.

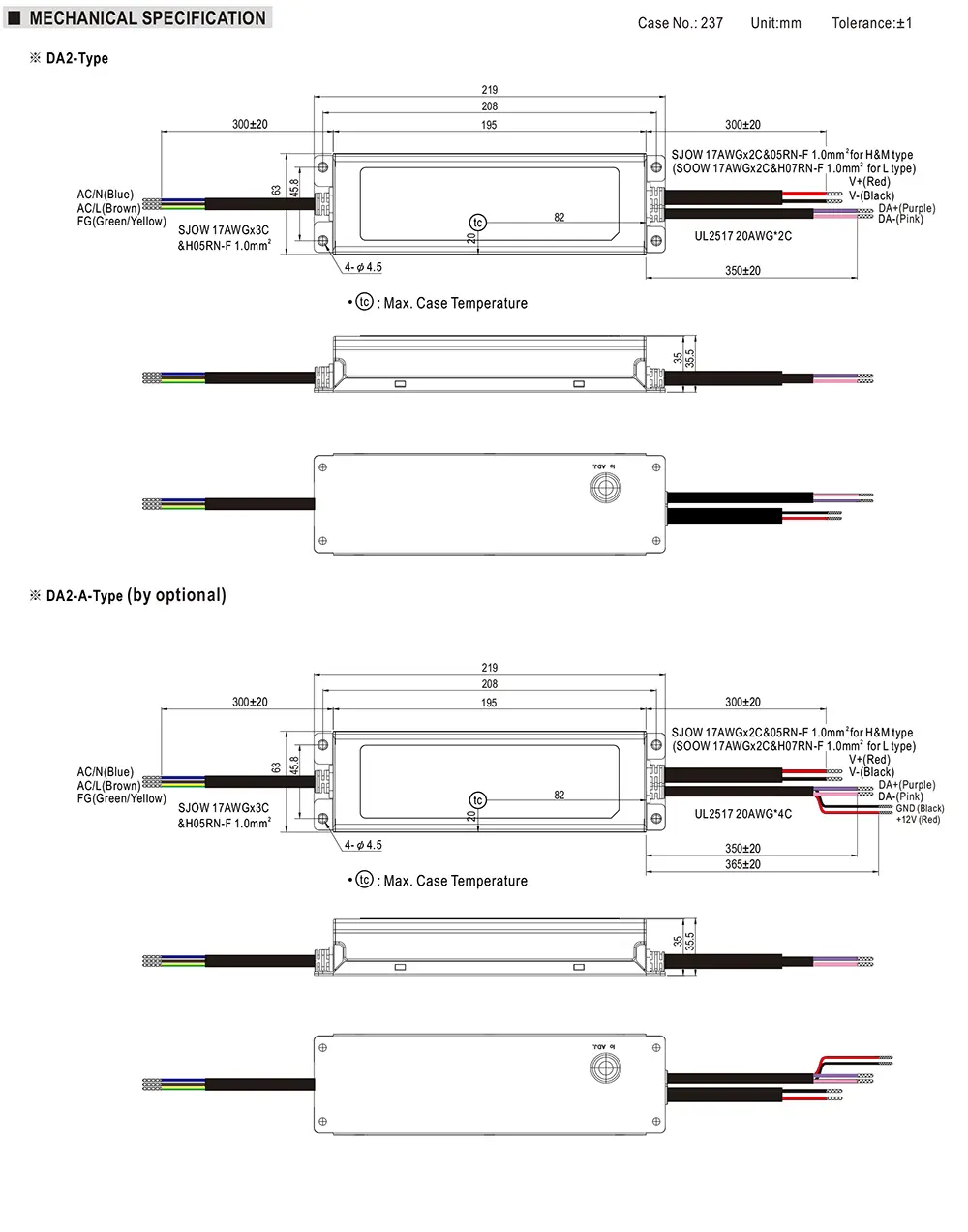

Mechanical Dimensions and Installation

The MEAN WELL XLG-240-DA2 Series uses a metal housing with overall dimensions of 219 × 63 × 35.5mm. The DA2 type includes AC input wires, LED output wires, DALI control wires, and functional ground connection for integration into indoor or outdoor LED lighting systems.

Dimensions

The overall mechanical size is 219 × 63 × 35.5mm. This housing size makes the XLG-240-DA2 Series suitable for 240W outdoor LED lighting applications where mechanical strength, heat dissipation, wiring access, and reliable installation are important.

Wiring Configuration

The XLG-240-DA2 Series uses wire leads instead of terminal blocks. The AC input side includes AC/L brown, AC/N blue, and FG green/yellow wires. The LED output side includes V+ red and V- black wires. The DALI control interface uses DA+ purple and DA- pink wires.

DA2-A Auxiliary Wiring

For the DA2-A auxiliary power version, the driver also includes a 12V auxiliary output with +12V red and GND black wires. This option is available by request for applications that require auxiliary power support.

Installation Notes

The series is rated IP67 for indoor or outdoor installations, but users should still review the installation manual and recommended mounting direction before final assembly. Proper cable routing, waterproof installation practice, heat dissipation, and driver placement are important for long-term LED lighting system reliability.

Need application and compliance information for the XLG-240-DA2 Series? Continue below to explore recommended applications, certifications, safety standards, and datasheet download.

Applications

The MEAN WELL XLG-240-DA2 Series is suitable for LED lighting systems that require 240W constant power output, DALI-2 dimming control, IP67 protection, and reliable operation in indoor or outdoor environments.

With its wide 100–305Vac input range, metal housing, surge protection, optional auxiliary power version, and DALI-2 control interface, it is well suited for outdoor lighting projects where dimming control, driver durability, and installation reliability are important.

• Street lighting
• Floodlight lighting
• Bay lighting
• Horticulture lighting
• Fishing lighting
• Stage lighting

Need certification and compliance details for your project? Continue below to review the safety standards, EMC information, DALI-2 compliance, and related approval data for this series.

Certifications and Safety

The MEAN WELL XLG-240-DA2 Series is designed for LED lighting applications that require international safety, EMC, DALI-2, and outdoor installation compliance.

According to the official datasheet, the series includes safety approvals and compliance information for AC/DC LED driver applications, outdoor lighting systems, and DALI-2 controlled luminaires.

• UL8750 Type HL
• CSA C22.2 No. 250.13-12
• ENEC: BS EN/EN61347-1, BS EN/EN61347-2-13
• IP67 protection for indoor or outdoor installations
• IS 15885 Part 2/Sec 13 for XLG-240I-DA2 India version only
• GB/T19510.1 and GB/T19510.213
• EAC TP TC 004 approved

The datasheet also lists EMC-related standards such as BS EN/EN55015, CISPR15, GB/T 17743, BS EN/EN61000-3-2, GB17625.1, BS EN/EN61000-3-3, and BS EN/EN61547.

For DALI-2 control, the DA2 type complies with IEC62386-101, IEC62386-102, IEC62386-207, and IEC62386-251. It is classified as Device Type 6, also known as DT6.

The XLG-240-DA2 Series also includes 4KV line-to-line and 6KV line-to-earth surge protection. India version models include input over voltage protection and can survive 440Vac input voltage stress for 48 hours.

The DA2-A version is available by request with 12V/250mA auxiliary power output. For projects requiring auxiliary power, users should confirm model availability and final compliance requirements before selection.
