April 30, 2022MW Mean Well Meanwell 144-200W Constant Voltage + Constant Current LED Driver ELG-200 series
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer;
- 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI; Auxiliary DC output
- Typical lifetime>50000 hours
- 5 years warranty
Mean Well LED Driver ELG-200 Series Data Sheet Download
Description
ELG-200 series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-200 operates from 100 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

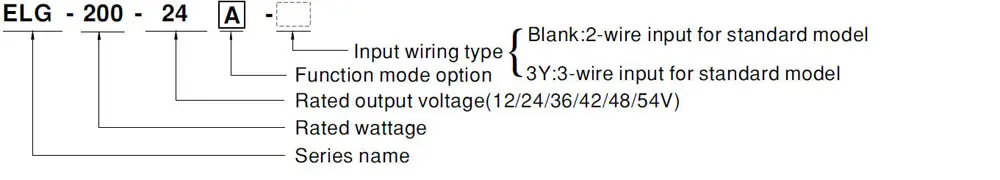

Mean Well LED Driver ELG-200 Series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed. | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| DA | IP67 | DALI control technology. | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | In Stock |
Specification
| MODEL | ELG-200-12 | ELG-200-24 | ELG-200-36 | ELG-200-42 | ELG-200-48 | ELG-200-54 | |
|
OUTPUT |
DC VOLTAGE | 12V | 24V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION Note.2 | 6 ~ 12V | 12 ~ 24V | 18 ~ 36V | 21 ~ 42V | 24 ~ 48V | 27 ~ 54V | |
| RATED CURRENT | 16A | 8.4A | 5.55A | 4.76A | 4.16A | 3.72A | |
|
RATED POWER |
200VAC ~ 305VAC | ||||||
| 192W | 201.6W | 199.8W | 199.9W | 199.68W | 200.88W | ||
| 100VAC ~ 180VAC | |||||||
| 144W | 150W | 149.76W | 149.94W | 149.76W | 150.12W | ||
| RIPPLE & NOISE (max.) Note.3 | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||
| 11.2 ~ 12.8V | 22.4 ~ 25.6V | 33.5 ~ 38.5V | 39 ~ 45V | 44.8 ~ 51.2V | 50 ~ 57V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||
| 8 ~ 16A | 4.2 ~ 8.4A | 2.78 ~ 5.55A | 2.38 ~ 4.76A | 2.08 ~ 4.16A | 1.86 ~ 3.72A | ||
| VOLTAGE TOLERANCE Note.4 | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME Note.6 | 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC | ||||||
| HOLD UP TIME (Typ.) | 10ms/ 230VAC 10ms/ 115VAC | ||||||
|
INPUT |
VOLTAGE RANGE Note.5 | 100 ~ 305VAC 142 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
||||||
| EFFICIENCY (Typ.) | 90% | 92% | 92% | 92.5% | 93% | 93% | |
| AC CURRENT | 1.8A / 115VAC 1.2A / 230VAC 1.0A/277VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=510μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||
| NO LOAD / STANDBY
POWER CONSUMPTION Note.7 |
No load power consumption <0.5W for Blank / A / Dx / D-Type Standby power consumption <0.5W for B / AB / DA-Type | ||||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | |||||
| Constant current limiting, recovers automatically after fault condition is removed | |||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 13.5 ~ 18V | 27 ~ 34V | 42 ~ 49V | 47 ~ 54V | 54 ~ 63V | 60 ~ 67V | |
| Shut down output voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | ||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP. | Tcase=+90℃ | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +90℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750(type”HL”), CSA C22.2 No. 250.13-12;IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent,
BS EN/EN62384; EAC TP TC 004;BIS IS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13 approved |
|||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ;BS EN/ EN61000-3-3;GB17625.1,GB17743; EAC TP TC 020; KC KN15,KN61547 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547 | ||||||
|
OTHERS |
MTBF | 826.7K hrs min. Telcordia SR-332 (Bellcore) ; 200.8Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 244*71*37.5mm (L*W*H) | ||||||
| PACKING | 1.22Kg; 12pcs / 15.2Kg / 0.72CUFT | ||||||
Application
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified)
