May 1, 2022MW Mean Well Meanwell 300W Constant Voltage + Constant Current LED Driver ELG-300 series
Features
‧Constant Voltage + Constant Current mode output
‧Protection Functions: OCP,SCP,OVP,OTP
‧IP67 rating for indoor or outdoor installations
‧Output adjustable via potentiometer
‧Typical lifetime>50000 hours
‧5 years warranty
Mean Well LED Driver ELG-300 Series Data Sheet Download
Description
ELG-300 series is a 300W LED driver featuring with constant current and Constant voltage mode design. ELG-300 operates from 100~305VAC and offers CV mode or CC mode applications. Thanks to the high efficiency up to 94%, with the fanless design, the ambient temperature can be operated for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment- adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world ,as to provide the optimal design flexibility for LED lighting system.

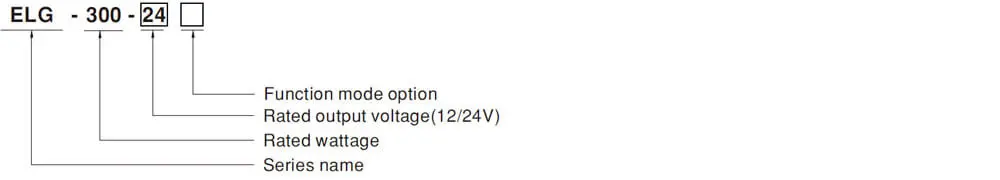

Mean Well LED Driver ELG-300 Series Model Encoding
| Type | IP Level | Function | Note |
| A | IP67 | Io and Vo adjustable through built-in potentiometer | In Stock |
Specification
| MODEL | ELG-300-12A | ELG-300-24A | |||
|
OUTPUT |
DC VOLTAGE | 12V | 24V | ||
| CONSTANT CURRENT REGION Note.2 | 10~ 12V | 14.4~ 24V | |||
| RATED CURRENT | 200VAC ~ 305VAC | 22A | 12.5A | ||
| 100VAC ~ 180VAC | 18.7A | 10.63A | |||
| RATED POWER | 200VAC ~ 305VAC | 264W | 300W | ||
| 100VAC ~ 180VAC | 224.4W | 255W | |||
| RIPPLE & NOISE (max.) Note.3 | 150mVp-p | 240mVp-p | |||
| VOLTAGE ADJ. RANGE | 11.2 ~12.8V | 22.4 ~25.6V | |||
| CURRENT ADJ. RANGE | 11 ~ 22A | 6.25 ~ 12.5A | |||
| VOLTAGE TOLERANCE Note.4 | ±3.0% | ±2.0% | |||
| LINE REGULATION | ±0.5% | ±0.5% | |||
| LOAD REGULATION | ±2.0% | ±1.0% | |||
| SETUP, RISE TIME Note.6 | 500ms, 100ms/230VAC, 500ms, 100ms/115VAC | ||||
| HOLD UP TIME (Typ.) | 10ms/ 230VAC 10ms/ 115VAC | ||||
|
INPUT |
VOLTAGE RANGE |
Note.5 |
100 ~ 305VAC 142 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF≧0.95/115VAC, PF≧0.93/230VAC, PF≧0.90/277VAC@full load | ||||
| TOTAL HARMONIC DISTORTION | THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) | ||||
| EFFICIENCY (Typ.) | 91% | 94% | |||
| AC CURRENT | 3A / 115VAC 1.6A / 230VAC 1.3A/277VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | |||
| Constant current limiting, recovers automatically after fault condition is removed | |||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 13.5 ~ 17V | 27 ~ 34V | |||
| Shut down output voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | ||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750(type”HL”)(Except for 12V), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004; GB19510.1,GB19510.14; KC61347-1,KC61347-2-13; IS15885(Part2/Sec13),IP67 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;KN15 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),KN61547 | ||||
|
OTHERS |
MTBF | 609K hrs min. Telcordia SR-332 (Bellcore) ; 191Khrs min. | MIL-HDBK-217F (25℃) | ||
| DIMENSION | 246*77*39.5mm (L*W*H) | ||||
| PACKING | 1.45 Kg; 9pcs /13.5Kg / 0.76CUFT | ||||
Application
- LED bay lighting
- LED stage lighting
- LED flood lighting
- LED strip lighting
- DMX control system
