May 1, 2022MW Mean Well Meanwell 300W Constant Current Mode LED Driver ELG-300-C series
Features
- Full power at 65~100% operation(Constant Power )
- Protection Functions: OCP,SCP,OVP,OTP
- IP67 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; DALI-2 dimming
- Typical lifetime>50000 hours and 5 years warranty
- Surge protection with 6KV/4KV
- Latest safety requirements of IEC61347/GB19510 and UL8750
Mean Well LED Driver ELG-300-C series Data Sheet Download
Description
ELGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output. ELGC-300 operates from 100~305VAC and offers models with different rated current ranging between 1300mA and 8000mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. ELGC-300 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

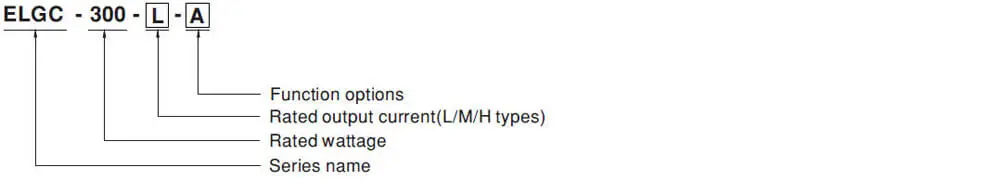

LED Driver ELG-300-C series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Blank type available by modification | By request |
| A | IP67 | Output constant power adjustable via built-in Io potentiometer | In Stock |
| AB | IP67 | Output constant power adjustable via built-in Io potentiometer +
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| ADA | IP67 | DALI-2 control technology with Io Adjustable via built-in Potentiometer | In Stock |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | By request |
Specification
| MODEL | ELGC-300-L- | ELGC-300-M- | ELGC-300-H- | ||||
|
OUTPUT |
DEFAULT CURRENT | 1400mA | 2800mA | 5600mA | |||
| RATED POWER | (200 ~ 305VAC) | 301W | 301W | 301 | |||
| (100 ~ 180VAC) | 256W | 256W | 256W | ||||
| CONSTANT CURRENT REGION | 116 ~232V | 58 ~ 116V | 29 ~ 58V | ||||
| FULL POWER CURRENT RANGE | 1300~2000mA | 2600~4000mA | 5200~8000mA | ||||
| OPEN CIRCUIT VOLTAGE (max.) | 240V | 120V | 62V | ||||
| CURRENT ADJ. RANGE | (200 ~ 305VAC) | 650~2000mA | 1300~4000mA | 2600~8000mA | |||
| (100 ~ 180VAC) | 650~1700mA | 1300~3400mA | 2600~6800mA | ||||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| SET UP TIME | Note.9 | 500ms/230VAC, 500ms/115VAC | |||||
|
INPUT |
VOLTAGE RANGE |
Note.2 |
100 ~ 305VAC 142VDC ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” ang “ DRIVING METHODS OF LED MODULE”section) |
||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
|
POWER FACTOR (Typ.) |
PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load
(Please refer to “Power Factor Characteristic” section) |
||||||
|
TOTAL HARMONIC DISTORTION |
THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section | ||||||
| EFFICIENCY (Typ.) | 94.5% | 93.5% | 92.5% | ||||
| AC CURRENT (Typ.) | 3A / 115VAC 1.6A / 230VAC 1.3A / 277VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 45A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER |
2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC |
||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||
| STANDBY POWER CONSUMPTION |
Note.5 |
Standby power consumption <0.5W for AB / ADA-Type(Dimming OFF) |
|||||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||
|
OVER VOLTAGE |
241 ~ 275V | 121 ~ 145V | 61 ~ 78V | ||||
| Shut down output voltage, re-power on to recovery | |||||||
| OVER TEMPERATURE | Tcase>85℃±5℃,derate power automatically by 6%/℃ max | ||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;
EAC TP TC 004;GB19510.1,GB19510.14; IP67;KC61347-1,KC61347-2-13 approved |
|||||
| DALI STANDARDS | Compliance to IEC62386-101,102,207 for ADA Type only | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3;KN15 | ||||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);KN61547 | ||||||
|
OTHERS |
MTBF | 565K hrs min. Telcordia SR-332(Bellcore) ; 166 K hrs min. MIL-HDBK-217F (25℃) | |||||
| LIFETIME | Note.4 | 50000 hrs min. | |||||
| DIMENSION | 246*77*39.5mm (L*W*H) | ||||||
| PACKING | 1.45Kg;9pcs/14Kg/0.76CUFT | ||||||
Application
- LED bay lighting
- LED stage lighting
- LED flood lighting
- LED fishing lighting
- LED horticulture lighting
- Stadium lighting
- Type “HL” for use in classⅠ,Division 2
