May 3, 2022MW Mean Well Meanwell 105~150W Class Ⅱ Constant Current Mode LED Driver ELGT-150-C series
Features
- Metal housing design with functional Ground
- Class Ⅱ design
- Constant Current mode output
- Built-in active PFC function
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer;
- 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI;
- Typical lifetime>50000 hours
- 5 years warranty
Mean Well LED Driver ELGT-150-C series Data Sheet Download
Description
ELGT-150-C series is a 105~150W LED AC/DC classⅡ driver featuring the constant current mode and high voltage output. ELGT-150-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 1400mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELGT-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

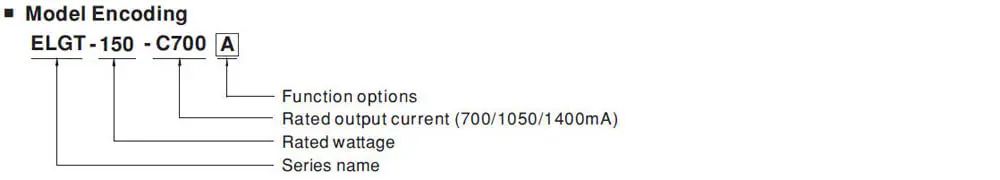

Mean Well LED Driver ELGT-150-C series Model Encoding
| Type | IP Level | Function |
| Blank | IP67 | Io fixed. |
| A | IP65 | Io adjustable through built-in potentiometer. |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
| AB | IP65 | Io adjustable through built-in potentiometer&
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
| DA | IP67 | DALI control technology. |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. |
Specification
| MODEL | ELGT-150-C700 | ELGT-150-C1050 | ELGT-150-C1400 | |||
|
OUTPUT |
RATED CURRENT | 700mA | 1050mA | 1400mA | ||
|
RATED POWER |
200VAC ~ 305VAC | |||||
| 149.8W | 150.15W | 149.8W | ||||
| 100VAC ~ 180VAC | ||||||
| 105W | 105W | 105W | ||||
| CONSTANT CURRENT REGION Note.2 | 107 ~ 214V | 72 ~ 143V | 54 ~ 107V | |||
| OPEN CIRCUIT VOLTAGE(max.) | 225V | 151V | 115V | |||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 350 ~ 700mA | 525 ~ 1050mA | 700 ~ 1400mA | ||||
| CURRENT RIPPLE | 5.0% max. @rated current | |||||
| CURRENT TOLERANCE | ±5.0% | |||||
| SET UP TIME Note.4 | 1600ms/115VAC | 500ms/230VAC | ||||
|
INPUT |
VOLTAGE RANGE Note.3 |
100 ~ 305VAC 142 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
|
POWER FACTOR (Typ.) |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@load≧50%/115VC; @load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | |||||
| EFFICIENCY (Typ.) | 92% | 92% | 91% | |||
| AC CURRENT (Typ.) | 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 65A(twidth=485μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC |
|||||
| LEAKAGE CURRENT | <0.7mA / 240VAC | |||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / D2-Type Standby power consumption <0.5W for B / DA-Type | |||||
|
PROTECTION |
SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||
|
OVER VOLTAGE |
230 ~ 265V | 155 ~ 180V | 128 ~ 150V | |||
| Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
|
SAFETY & EMC |
SAFETY STANDARDS |
ENEC BS EN/EN61347-1(except for AB-Type), BS EN/EN61347-2-13(except for AB-Type) independent, BS EN/EN62384(except for AB-Type); EAC TP TC 004;IP65 or IP67 approved | ||||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-CASE:3.75KVAC O/P-CASE:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; EAC TP TC 020 | |||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020 | |||||
|
OTHERS |
MTBF | 1098.95K hrs min. Telcordia SR-332 (Bellcore) 308.5Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 219*63*35.5 mm (L*W*H) | |||||
| PACKING | 0.95Kg; 16pcs / 16.0kg / 0.77CUFT | |||||
Application
- LED street lighting
- LED harbor lighting
- LED bay lighting
- LED greenhouse lighting
- LED flood lighting
- Comply with class Ⅱ application
