May 4, 2022100W Constant Current Mode LED Driver HBG-100 series
Features
‧Constant Current mode output
‧Circular metal housing with class Ⅰ design
‧Built-in active PFC function
‧IP67 / IP65 rating for indoor or outdoor installations
‧Function options: output adjustable via potentiometer;
3 in 1 dimming; DALI
‧Typical lifetime>50000 hours
‧5 years warranty
Data Sheet Download
Description
HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%,with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

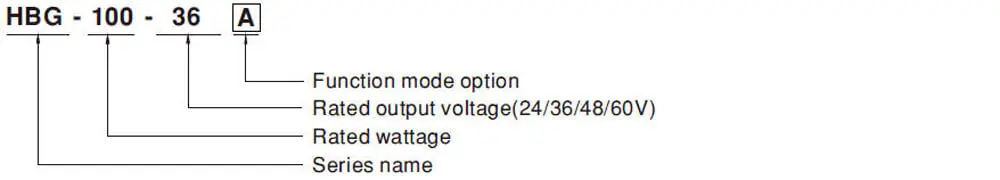

Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed. | In Stock |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer with 3 in 1 dimming function | In Stock |
| DA | IP67 | DALI control technology. | In Stock |
Specification
| MODEL | HBG-100-24 | HBG-100-36 | HBG-100-48 | HBG-100-60 | ||||
|
OUTPUT |
RATED CURRENT | 4A | 2.7A | 2A | 16A | |||
| RATED POWER | 96W | 97.2W | 96W | 96W | ||||
| CONSTANT CURRENT REGION Note.2 | 14.4 – 24V | 21.6-36V | 288 -48V | 36- 60V | ||||
| OPEN CIRCUITVOLTAGE (max.) | 25V | 37V | 49V | 62V | ||||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type (via built-in potentiometer) | |||||||
| 2.4-4A | 1.62-2.7A | 12-2A | 10-1 6A | |||||
| CURRENT RIPPLE | 5.0% max. @rated current | |||||||
| CURRENT TOLERANCE | 士5.0% | |||||||
| SETUP TIME | Note.4 | 2000ms / 115VAC | 500ms / 230VAC | |||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
90 – 305VAC 127- 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||||
| FREQUENCY RANGE | 47 – 63Hz | |||||||
|
POWER FACTOR |
PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||||
|
TOTAL HARMONIC DISTORTION |
THO< 20% (@1oad三60%/115VC,230VAC; @load 75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||||||
| EFFICIENCY (Typ.) | Note.5 | 90.5% | 91% | 91% | 91.5% | |||
| AC CURRENT (Typ.) | 1.1A / 115VAC | 0.5A / 230VAC | 0.45A/ 277VAC | |||||
| INRUSH CURRENT (Typ.) | COLD START 60A (twidth=550µS measured at 50% Ipeak) at 230VAC; Per NEMA410 | |||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |||||||
| LEAKAGE CURRENT | <O.75mA / 277VAC | |||||||
| NO LOAD/ STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for 8/AB/DA-Type Blank/A-Type please refer to Note. 7 | |||||||
|
PROTECTION |
OVER CURRENT | 95-108% | ||||||
| Constant current limiting | ||||||||
|
OVER VOLTAGE |
28- 35V | 41 -49V | 54- 63V | 65- 75V | ||||
| Shut down o/p voltage re-power on to recovery | ||||||||
| OVER TEMPERATURE | Shut down o/p voltage re-power on to recovery | |||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 – +85°C (Please refer to ” OUTPUT LOAD vs TEMPERATURE” section) | ||||||
| MAX. CASE TEMP. | Tcase=+85°C | |||||||
| WORKING HUMIDITY | 20 – 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 – +80°C, 10 – 95% RH | |||||||
| TEMP. COEFFICIENT | 士0 03%/°C (0 – 50°C) | |||||||
| VIBRATION | 10- 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1, GB19510.14, BIS IS15885(/o「 36A,48A,60A only), EAC TP TC 004,IP65 or IP67 approved | ||||||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | |||||||
| WITHSTAND VOLTAGE | I/P-0 /P:3. 75KVAC | I/P-FG:2KVAC | O/P-FG:0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-0 /P, 1/P-FG, 0 /P-FG:1QOM Ohms / 500VDC / 25°C/ 70% RH | |||||||
|
EMC EMISSION |
Note.7 |
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≥60%); BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | ||||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity: Line-Earth:4KV, Line-Line:2KV,) EAC TP TC 020 | |||||||
|
OTHERS |
MTBF | 985.6K hrs min. Telcordia SR-332 (Bellcore); 300Kh「s min. MIL-HDBK-217F (25°C) | ||||||
| DIMENSION | 心130mm*66.5mm (D * H) | |||||||
| PACKING | 1.18Kg; 12pcs/15.7Kg/1.43CUFT (Blank /A/B Type),1.89CUFT (E Type) | |||||||
Application
‧LED bay lighting
‧LED stage lighting
‧LED spot lighting
‧Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
