May 4, 2022200W Constant Voltage + Constant Current LED Driver HBG-200 series
Features
- Constant Voltage + Constant Current mode output
- Circular metal housing with class Ⅰ design
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HBG-200 series is a 200W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 36Vand 60V. Thanks to the high efficiency up to 93.5%,with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

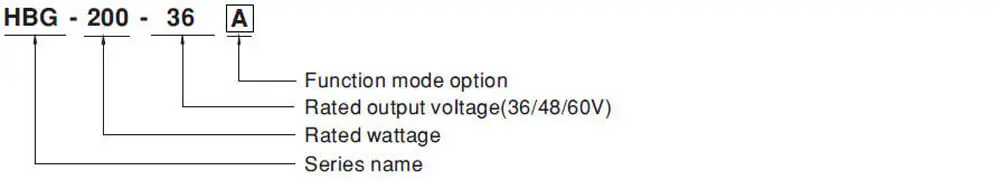

Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io fixed. | In Stock |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer with 3 in 1 dimming function | In Stock |
| DA | IP67 | DALI control technology. | In Stock |
Specification
| MODEL | HBG-200-36 | HBG-200-48 | HBG-200-60 | |
|
OUTPUT |
DC VOLTAGE | 36V | 48V | 60V |
| CONSTANT CURRENT REGION Note.2 | 21.6 ~ 36V | 28.8 ~ 48V | 36 ~ 60V | |
| RATED CURRENT | 5.5A | 4.1A | 3.3A | |
| RATED POWER | 198W | 196.8W | 198W | |
| RIPPLE & NOISE (max.) Note.3 | 250mVp-p | 250mVp-p | 350mVp-p | |
|
CURRENT ADJ. RANGE |
Adjustable for A-Type and AB-Type (via built-in potentiometer) | |||
| 3.3 ~ 5.5A | 2.46 ~ 4.1A | 1.98 ~ 3.3A | ||
| VOLTAGE TOLERANCE Note.4 | ±2.0% | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGULATION | ±1.0% | |||
| SETUP, RISE TIME Note.6 | 2500ms,200ms /115VAC 500ms,200ms /230VAC | |||
| HOLD UP TIME (Typ.) | 12ms /115VAC, 230VAC | |||
|
INPUT |
VOLTAGE RANGE Note.5 |
90 ~ 305VAC 127~417VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
|
POWER FACTOR |
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@load≧60%/115VC,230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||
| EFFICIENCY (Typ.) | 92% | 93% | 93.5% | |
| AC CURRENT (Typ.) | 1.9A / 115VAC 1A / 230VAC 0.9A / 277VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 85A (twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A
CIRCUIT BREAKER |
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| NO LOAD / STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for B/AB/DA-Type
Blank/A-Type please refer to Note.8 |
|||
|
PROTECTION |
OVER CURRENT |
95~108% | ||
| Constant current limiting, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Hiccup mode or constant current limiting, recovers automatically after fault condition is removed | |||
|
OVER VOLTAGE |
41 ~ 47V | 54 ~ 62V | 65 ~ 75V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||
| MAX. CASE TEMP. | Tcase=+85℃ | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1; EAC TP TC 004,IP65 or IP67 approved | ||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA type only | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%); BS EN/EN61000-3-3; GB17625.1, GB17743, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV),EAC TP TC 020 | |||
|
OTHERS |
MTBF | 252.3Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | Refer to mechanical specification | |||
| PACKING | 1.53Kg; 8pcs/13.8Kg/1.61CUFT | |||
Application
- LED high/low bay lighting
- LED canopy lighting
- LED stage lighting
- LED spot lighting
- Outdoor architectural lighting system
- Type “HL” for use in Class I, Division 2 hazardous (Classified)
