HBG-60-P series
May 3, 2022
HBG-100P series
May 3, 202260W Constant Current Mode LED Driver HBG-60 series
Features
‧Constant Current mode output
‧Circular plastic housing with class II design
‧Built-in active PFC function
‧Class 2 power unit
‧Typical lifetime>50000 hours
‧5 years warranty
Data Sheet Download
Description
HBG-60 series is a 60W AC/DC LED driver featuring the circular shape design with the plastic enclosure. It operates from 90~295VAC and offers the constant current output models with different rated current between 1050mA and 2100mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection.

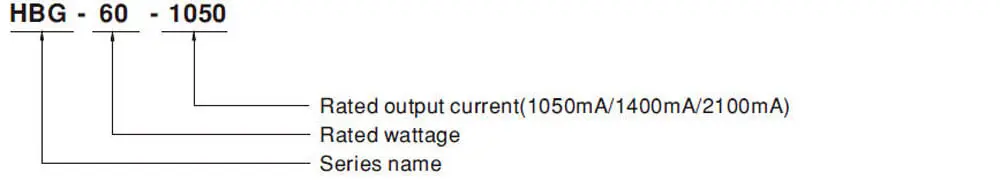

Model Encoding
Specification
| MODEL | HBG-60-1050 | HBG-60-1400 | HBG-60-2100 | |
|
OUTPUT |
RATED CURRENT | 1050mA | 1400mA | 2100mA |
| RATED POWER | 57.75W | 60.2W | 60.9W | |
| CONSTANT CURRENT REGION Note.2 | 37 ~ 55V | 28 ~ 43V | 19 ~ 29V | |
| OPEN CIRCUIT VOLTAGE(max.) | 60V | 50V | 35V | |
| CURRENT ADJ. RANGE | 680 ~ 1050mA | 910 ~ 1400mA | 1360mA ~ 2100mA | |
| CURRENT RIPPLE | 25% max. @rated current | |||
| CURRENT TOLERANCE | ±5.0% | |||
| SET UP TIME Note.4 | 500ms / 230VAC 1200ms / 115VAC | |||
|
INPUT |
VOLTAGE RANGE Note.3 | 90 ~ 295VAC 127 ~ 417VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||
| TOTAL HARMONIC DISTORTION | THD< 20% (@load≧65%/115VC,230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||
| EFFICIENCY (Typ.) | 90% | 89% | 89% | |
| AC CURRENT (Typ.) | 0.7A/115VAC 0.4A/230VAC 0.3A/277VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 45A (twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 28 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| PROTECTION | OVER CURRENT | Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||
| MAX. CASE TEMP. | Tcase=+85℃ | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION Note.8 | Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (@load≧65%); BS EN/EN61000-3-3, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity: Line-Line:2KV), EAC TP TC 020 | |||
|
OTHERS |
MTBF | 1504.1K hrs min. Telcordia SR-332 (Bellcore); 452Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | ψ110mm * 60.5mm (D * H) | |||
| PACKING | 0.5Kg; 20pcs/ 11Kg/ 0.94CUFT | |||
Application
‧LED bay lighting
‧LED stage lighting
‧LED spot lighting
‧LED down lighting
