May 21, 2022250W Constant Current Mode LED Driver HLG-240H-C series
Features
- Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Data Sheet Download
Description
HLG-240H-C series is a 250W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-240H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

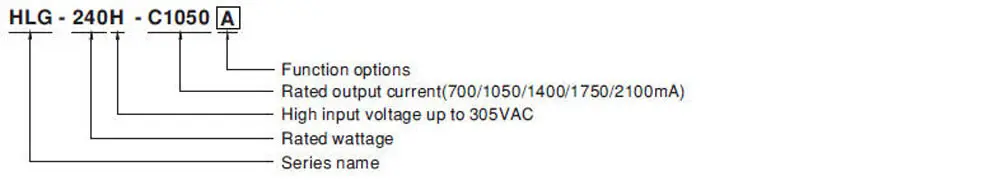

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) |
In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | By request |
Specification
| MODEL | HLG-240H-C700 | HLG-240H-C1050 | HLG-240H-C1400 | HLG-240H-C1750 | HLG-240H-C2100 | ||||
|
OUTPUT |
RATED CURRENT | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | |||
| RATED POWER | 249.9W | 249.9W | 250.6W | 250.25W | 249.9W | ||||
| CONSTANT CURRENT REGION Note.2 | 178 ~ 357V | 119 ~ 238V | 89 ~ 179V | 71 ~ 143V | 59 ~ 119V | ||||
| OPEN CIRCUIT VOLTAGE (max.) | 360V | 241V | 182V | 146V | 122V | ||||
|
CURRENT ADJ. RANGE |
Can be adjusted by internal potentiometer (A/AB type only) | ||||||||
| 350 ~ 700mA | 525 ~ 1050mA | 700 ~ 1400mA | 875 ~ 1750mA | 1050 ~ 2100mA | |||||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||||||
| CURRENT TOLERANCE | ±5% | ||||||||
| SET UP TIME | Note.4 | 1000ms/115VAC, or 500ms/230VAC | |||||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| POWER FACTOR (Typ.) | PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||||
| TOTAL HARMONIC DISTORTION | THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
||||||||
| EFFICIENCY (Typ.) | 93.5% | 93.5% | 94% | 94% | 93.5% | ||||
| AC CURRENT (Typ.) | 2.5A / 115VAC 1.3A / 230VAC 1.1A / 277VAC | ||||||||
| INRUSH CURRENT(Typ.) | COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC |
||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||
|
OVER VOLTAGE |
375 ~ 410V | 250 ~ 275V | 188 ~ 206V | 150 ~ 165V | 125 ~ 137V | ||||
| Shut down and latch off o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃(Refer to “Derating Curve”) | |||||||
| MAX. CASE TEMP. | Tcase=+90℃ | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384
independent; GB19510.1,GB19510.14; IP65 or IP67, EAC TP TC 004 approved |
|||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020 | ||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020 | ||||||||
|
OTHERS |
MTBF | 180K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 244.2*68*38.8mm (L*W*H) | ||||||||
| PACKING | 1.3Kg; 12pcs/16.6Kg/0.84CUFT | ||||||||
Application
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED bay lighting
- Type “HL” for use in Class Ⅰ, Division 2 hazardous (Classified)
