May 20, 202270W Constant Current Mode LED Driver HLG-60H-C series
Features
- Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Data Sheet Download
Description
HLG-60H-C series is a 70W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-60H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 700mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

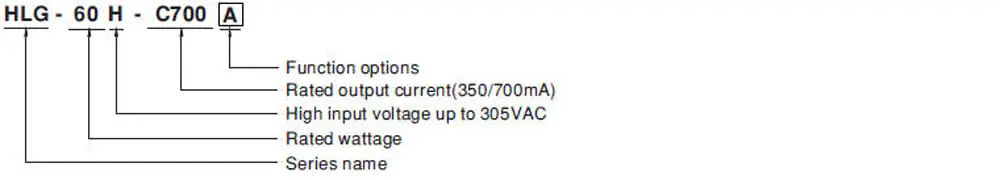

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) |
In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By request |
Specification
| MODEL | HLG-60H-C350 | HLG-60H-C700 | ||||
|
OUTPUT |
RATED CURRENT | 350mA | 700mA | |||
| RATED POWER | 70W | 70W | ||||
| CONSTANT CURRENT REGION Note.2 | 100 ~ 200V | 50 ~ 100V | ||||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | |||||
| 210 ~ 350mA | 420 ~ 700mA | |||||
| CURRENT RIPPLE | 5.0% max. @rated current | |||||
| CURRENT TOLERANCE | ±5% | |||||
| SET UP TIME | Note.4 | 750ms/115VAC, 500ms/230VAC | ||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| POWER FACTOR (Typ.) | PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||
| TOTAL HARMONIC DISTORTION | THD< 20% (@ load≧60% /115VAC, 230VAC; @ load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||||
| EFFICIENCY (Typ.) | 91% | 90.5% | ||||
| AC CURRENT (Typ.) | 0.69A / 115VAC 0.35A / 230VAC 0.29A / 277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=275μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
8 units (circuit breaker of type B) / 13 units (circuit breaker of type C) at 230VAC |
|||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||
|
PROTECTION |
SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||
|
OVER VOLTAGE |
230 ~ 250V | 120 ~ 140V | ||||
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +80℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||
| MAX. CASE TEMP. | Tcase=+80℃ | |||||
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.6 |
UL8750, CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, GB19510.1,GB19510.14,
EAC TP TC 004,IP65 or IP67 approved |
||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
|
EMC EMISSION |
Note.6 |
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020 | ||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||||
|
OTHERS |
MTBF | 878.1K hrs min. Telcordia SR-332 (Bellcore) ; 338K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 171*61.5*36.8 mm (L*W*H) | |||||
| PACKING | 0.73Kg; 20pcs/15.6Kg/0.9CUFT | |||||
Application
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED greenhouse lighting
- LED bay lighting
