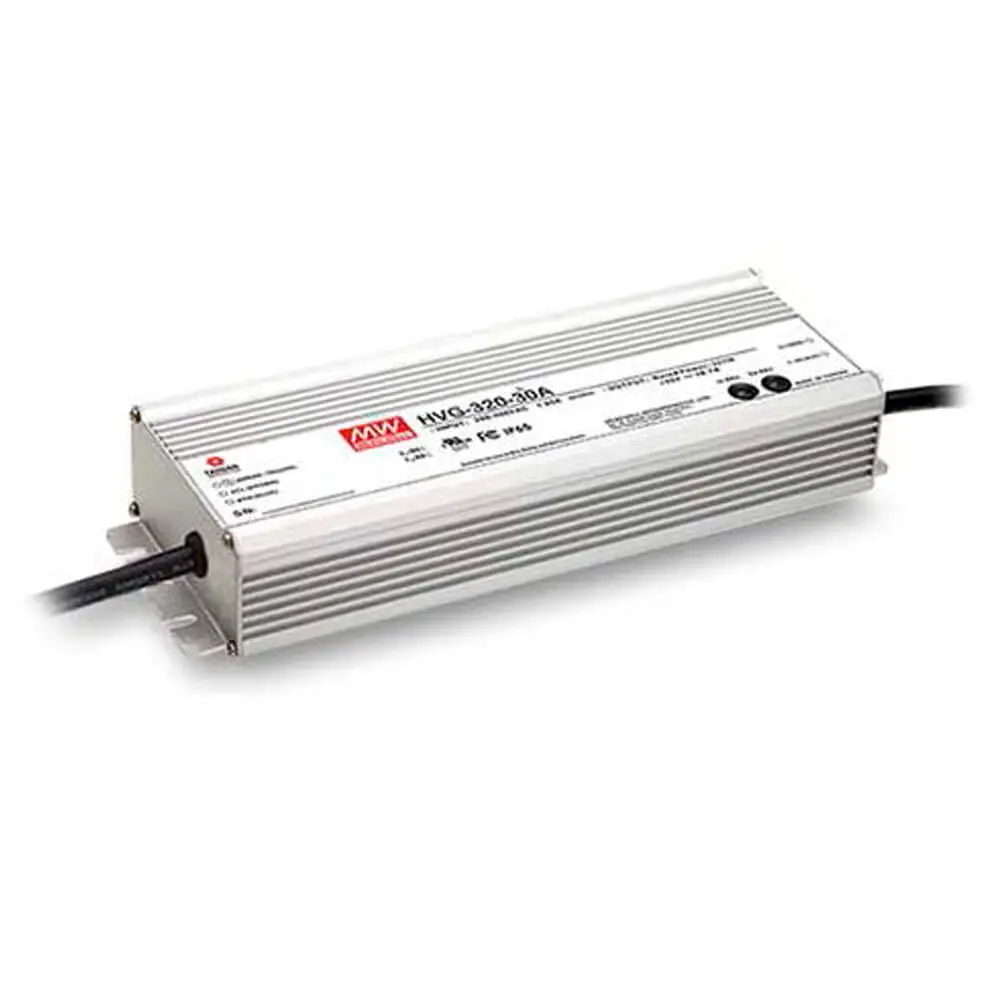

May 21, 2022320W Constant Voltage + Constant Current LED Driver HVG-320 series
Features
- Wide input range 180 ~ 528VAC
- Constant Voltage + Constant Current mode output
- Metal housing with Class Ⅰ design
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVG-320 series is a 320W AC/DC LED power supply featuring the dual mode constant voltage and constant current output. HVG-320 operates from 180~528VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-320 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

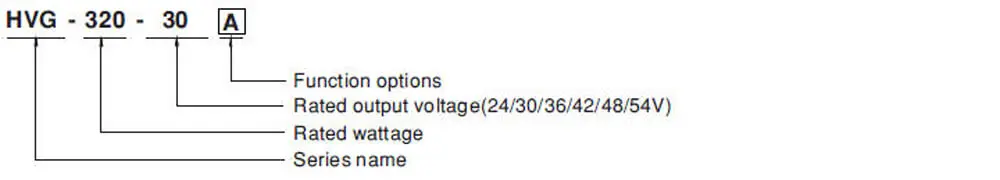

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io and Vo adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | By request |
Specification
| MODEL | HVG-320-24 | HVG-320-30 | HVG-320-36 | HVG-320-42 | HVG-320-48 | HVG-320-54 | ||||
|
OUTPUT |
DC VOLTAGE | 24V | 30V | 36V | 42V | 48V | 54V | |||
| CONSTANT CURRENT REGION Note.4 | 12 ~ 24V | 15 ~ 30V | 18 ~ 36V | 21 ~ 42V | 24 ~ 48V | 27 ~ 54V | ||||
| RATED CURRENT | 13.4A | 10.7A | 8.9A | 7.6A | 6.7A | 6A | ||||
| RATED POWER | 321.6W | 321W | 320.4W | 319.2W | 321.6W | 324W | ||||
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | ||||
|
VOLTAGE ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | |||||||||
| 21 ~ 26V | 26 ~ 32V | 32 ~ 39V | 38 ~ 45V | 43 ~ 52V | 49 ~ 58V | |||||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via the built-in potentiometer) | |||||||||
| 6.7 ~ 13.4A | 5.35 ~ 10.7A | 4.45 ~ 8.9A | 3.8 ~ 7.6A | 3.35 ~ 6.7A | 3 ~ 6A | |||||
| VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||||
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||||
| SETUP, RISE TIME | Note.6 | 500ms, 150ms /230VAC, 347VAC, 480VAC | ||||||||
| HOLD UP TIME (Typ.) | 15ms / 347VAC, 480VAC | |||||||||
|
INPUT |
VOLTAGE RANGE |
Note.5 |
180 ~ 528VAC 254VDC ~ 747VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
|
POWER FACTOR (Typ.) |
PF≧0.98/230VAC, PF≧0.98/277VAC, PF≧0.97/347VAC, PF≧0.95/480VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@ load≧50%/230VAC, 277VAC, 347VAC, 480VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||||||||
| EFFICIENCY (Typ.) | 92.5% | 93% | 93.5% | 93.5% | 94% | 94% | ||||
| AC CURRENT (Typ.) | 1.1A / 347VAC 0.8A / 480VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=850μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |||||||||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER | 2unit(circuit breaker of type B) / 4units(circuit breaker of type C) at 480VAC | |||||||||
| LEAKAGE CURRENT | <0.75mA / 480VAC | |||||||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||||
|
OVER VOLTAGE |
27 ~ 33V | 33 ~ 37V | 40 ~ 46V | 46.5 ~ 53V | 53.5 ~ 60V | 59 ~ 65V | ||||
| Shut down and latch off o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||||||
| MAX. CASE TEMP. | Tcase=+85℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to FCC Part 15 Subpart B, EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||||||||
|
OTHERS |
MTBF | 124.3K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 262*90*43.8mm (L*W*H) | |||||||||
| PACKING | 2Kg; 8pcs/17Kg/0.92CUFT | |||||||||
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified)
