May 29, 20221000W Constant Current Mode LED Driver HVGC-1000 series
Features
- Wide input range 180 ~ 528VAC
- Constant power mode output
- Metal housing with ClassⅠdesign
- Surge protection with 8KV/4KV
- Built-in active PFC function
- IP67 design for indoor or outdoor installation
- 3 in 1 dimming (dim to off and lsolation);
- Smart timer dimming and DALI-2
- Support with auxiliary DC output 12V/500mA
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVGC-1000 series is a 1000W LED AC/DC driver featuring the constant power mode with wide output voltage range. HVGC-1000 operates from 180~528VAC and offers models with different rated current ranging between 1320mA and 7000mA. Thanks to the high efficiency up to 96%, with the fanless design, all models are able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications, such as horticulture lighting and stadium light HVGC-1000 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

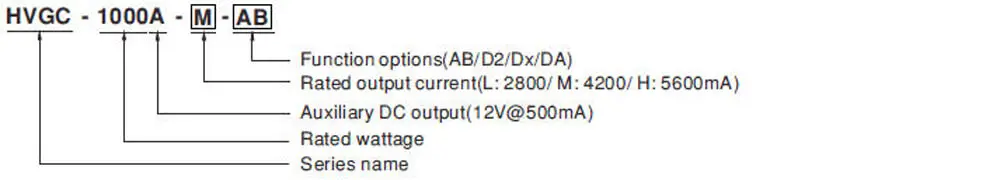

Model Encoding
| Type | IP Level | Function | Note |
| AB | IP67 | Standard constant power output with 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and built-in potentiometer. | In Stock |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | By request |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| DA | IP67 | DALI control technology with Io Adjustable via built-in potentiometer. | By request |
Specification
| MODEL | HVGC-1000A-L- | HVGC-1000A-M- | HVGC-1000A-H- | |||
|
OUTPUT |
RATED CURRENT | 2800mA | 4200mA | 5600mA | ||
| RATED POWER | 1003.2W | 1008W | 1008W | |||
| CONSTANT CURRENT REGION Note.2 | 150 ~ 380V | 95 ~ 240V | 70 ~ 180V | |||
| FULL POWER CURRENT RANGE | 2640~3280mA | 4200~5250mA | 5600~7000mA | |||
| OPEN CIRCUIT VOLTAGE (max.) | 400V | 250V | 190V | |||
| CURRENT ADJ. RANGE | 1320~3280mA | 2100~5250mA | 2800~7000mA | |||
| CURRENT RIPPLE | 3.0% max. @ rated current | |||||
| CURRENT TOLERANCE | ±5% | |||||
| AUXILIARY POWER | Nominal 12V (Tolerance: ±10%, R&N:150mVp-p) @500mA for HVGC-1000A only | |||||
| SET UP TIME | Note.4 | 500ms/230VAC, 347VAC, 480VAC | ||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
180 ~ 528VAC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
|
POWER FACTOR (Typ.) |
PF≧0.98 / 230VAC, PF≧0.98 / 277VAC, PF≧0.97 / 347VAC, PF≧0.96 / 400VAC, PF≧0.95 / 480VAC at full load
(Please refer to “Power Factor Characteristic” section) |
|||||
| TOTAL HARMONIC DISTORTION | THD< 10% @ 347VAC> 80% loading
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||||
| EFFICIENCY (Typ.) | 95.5% | 96% | 96% | |||
| AC CURRENT (Typ.) | 3.15A / 347VAC 2.28A / 480VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 40A (twidth=1850μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |||||
| MAX. NO. of PSUs on CIRCUIT BREAKER | 4 Unit for 30A type B circuit breaker / 8 unit for 30A type C circuit breaker at 480VAC | |||||
| LEAKAGE CURRENT | <0.75mA / 480VAC | |||||
| STANDBY
POWER CONSUMPTION |
Standby power consumption <2W for AB-Type(Dimming OFF) | |||||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||
|
OVER VOLTAGE |
400 ~ 425V | 250 ~ 270V | 190 ~ 205V | |||
| Shut down output voltage, re-power on to recovery | ||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750(type”HL”), CAN/CSA C22.2 NO. 250. 13-17, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; CCC GB19510.1, GB19510.14; EAC TP TC 004, IP67 approved | ||||
| DALI STANDARDS | Compare to IEC62386-101.102.207 for DA-Type only (Device type 6, DT6) | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
|
EMC EMISSION |
FCC Part 15 class B, EAC TP TC 020 | |||||
| Parameter | Standard | Test Level/Note | ||||
| Conducted | BS EN/EN55015(CISPR15)/GB/T17743 | —– | ||||
| Radiated | BS EN/EN55015(CISPR15)/GB/T17743 | —– | ||||
| Harmonic Current | BS EN/EN61000-3-2/GB/T17625.1 | Class C @load≥50% | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | —– | ||||
|
EMC IMMUNITY |
BS EN/EN61547, CCC GB/T17743 and GB17625 | |||||
| Parameter | Standard | Test Level/Note | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||||
| Radiated | BS EN/EN61000-4-3 | Level 2 | ||||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | ||||
| Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 8KV/Line-Earth | ||||
| Conducted | BS EN/EN61000-4-6 | Level 2 | ||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods |
||||
|
OTHERS |
MTBF | 682.8K hrs min. Telcordia SR-332(Bellcore); 68.4K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 310*144*48.5mm (L*W*H) | |||||
| PACKING | 4.2Kg; 4pcs/17.8Kg/1.16CUFT | |||||
Application
- Harbor lighting
- High-bay lighting
- Flood lighting
- Fishing lamp
- Horticulture lighting
- Stadium lighting
- Type HL for use in ClassⅠ, Division 2
- hazardous (Classified) location.
