May 22, 2022480W Constant Current Mode LED Driver HVGC-480 series
Features
- Wide input range 180 ~ 528VAC
- Constant Current mode output
- Metal housing with Class Ⅰ design
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVGC-480 series is a 480W LED AC/DC LED drive featuring the constant current mode and high voltage output. HVGC-480 operates from 180~528VAC and offers models with different rated current ranging between 1400mA and 3500mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-480 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

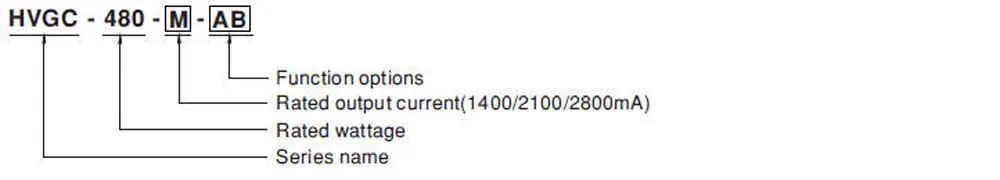

Model Encoding
| Type | IP Level | Function | Note |
| AB | IP65 | Standard constant power output with 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and built-in potentiometer. | In Stock |
| Blank | IP67 | Io and Vo fixed. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | By request |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| ADA | IP65 | ADA IP65 DALI control technology with Io Adjustable via built-in potentiometer | By request |
Specification
| MODEL | HVGC-480-L- | HVGC-480-M- | HVGC-480-H- | |
|
OUTPUT |
RATED CURRENT | 1400mA | 2100mA | 2800mA |
| RATED POWER | 480W | 480W | 480W | |
| CONSTANT CURRENT REGION Note.2 | 137 ~ 343V | 92 ~ 228.5V | 68 ~ 171.5V | |
| FULL POWER CURRENT RANGE | 1400~1750mA | 2100~2625mA | 2800~3500mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 350V | 240V | 180V | |
| CURRENT ADJ. RANGE(Typ.) | 700~1750mA | 1050~2625mA | 1400~3500mA | |
| CURRENT RIPPLE | 5.0% max. @rated current | |||
| CURRENT TOLERANCE | ±5% | |||
| SET UP TIME Note.4 | 500ms/230VAC, 347VAC, 480VAC | |||
|
INPUT |
VOLTAGE RANGE Note.3 |
180 ~ 528VAC 254VDC ~ 747VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
|
POWER FACTOR (Typ.) |
PF≧0.98 / 230VAC, PF≧0.98 / 277VAC, PF≧0.97 / 347VAC, PF≧0.96 / 400VAC, PF≧0.95 / 480VAC at full load
(Please refer to “Power Factor Characteristic” section) |
|||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@ load≧50% at 230VAC/277VAC/347VAC/400VAC/480VAC input
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||
| EFFICIENCY (Typ.) | 94.5% | 94.5% | 94.5% | |
| AC CURRENT (Typ.) | 1.52A / 347VAC 1.11A / 480VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 40A (twidth=1100μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER | 2 unit (circuit breaker of type B) / 4 units (circuit breaker of type C) at 480VAC | |||
| LEAKAGE CURRENT | <0.75mA / 480VAC | |||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||
|
OVER VOLTAGE |
351 ~ 381V | 241 ~ 257V | 181 ~ 193V | |
| Shut down output voltage, re-power on to recovery | ||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||
| MAX. CASE TEMP. | Tcase=+90℃ | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750 (type”HL”), CSA C22.2 No. 250.13-14, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,
IP65 or IP67, EAC TP TC 004 approved |
||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3, FCC Part 15 class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||
|
OTHERS |
MTBF | 286.1K hrs min. Telcordia SR-332(Bellcore); 72.9K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 262*125*43.8mm (L*W*H) | |||
| PACKING | 2.72Kg; 4pcs/11.45Kg/0.55CUFT | |||
Application
- Harbor lighting.
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified)
