May 22, 2022650W Constant Current Mode LED Driver HVGC-650 series
Features
- Wide input range 180 ~ 528VAC
- Constant power mode output
- Metal housing with ClassⅠdesign
- Surge protection with 8KV/4KV
- Built-in active PFC function
- IP67 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
- Auxiliary DC output optional
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVGC-650 series is a 650W LED AC/DC driver featuring the constant power mode with wide output voltage range. HVGC-650 operates from 180~528VAC and offers models with different rated current ranging between 2800mA and 14000mA. Thanks to the high efficiency up to 95.5%, with the fanless design, all models are able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications, such as horticulture lighting and stadium light HVGC-650 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

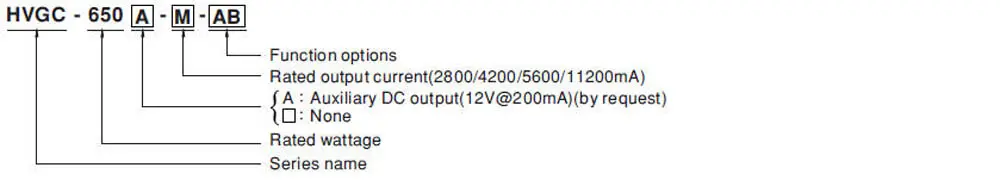

Model Encoding
| Type | IP Level | Function | Note |
| AB | IP67 | Standard constant power output with 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and built-in potentiometer. | In Stock |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | By request |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| DA | IP67 | DALI control technology with Io Adjustable via built-in potentiometer. | By request |
Specification
| MODEL | HVGC-650 -L- | HVGC- | 650 -M- | HVGC-650 -H- | HVGC-650 | -U- | |||
|
OUTPUT |
RATED CURRENT | 2800mA | 4200mA | 5600mA | 11200mA | ||||
| RATED POWER | 649.6W | 651W | 649.6W | 649.6W | |||||
| CONSTANT CURRENT REGION Note.2 | 92.8 ~ 232V | 62 ~ 155V | 46.4 ~ 116V | 24 ~ 58V | |||||
| FULL POWER CURRENT RANGE | 2800~3500mA | 4200~5250mA | 5600~7000mA | 11200~14000mA | |||||
| OPEN CIRCUIT VOLTAGE (max.) | 240V | 160V | 120V | 70V | |||||
| CURRENT ADJ. RANGE | 1400~3500mA | 2100~5250mA | 2800~7000mA | 5600~14000mA | |||||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||||||
| CURRENT TOLERANCE | ±5% | ||||||||
| AUXILIARY POWER | Nominal 12V (Tolerance: ±10%, R&N:150mVp-p)@200mA for HVGC-650A only | ||||||||
| SET UP TIME | Note.4 | 500ms/230VAC, 347VAC, 480VAC | |||||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
180 ~ 528VAC 254VDC ~ 747VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
|
POWER FACTOR (Typ.) |
PF≧0.98 / 230VAC, PF≧0.98 / 277VAC, PF≧0.97 / 347VAC, PF≧0.96 / 400VAC, PF≧0.95 / 480VAC at full load
(Please refer to “Power Factor Characteristic” section) |
||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@ load≧50% at 230VAC/277VAC/347VAC/400VAC/480VAC input
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
||||||||
| EFFICIENCY (Typ.) | 95% | 95% | 95% | 95.5% | |||||
| AC CURRENT (Typ.) | 2.1A / 347VAC 1.5A / 480VAC | ||||||||
| INRUSH CURRENT(Typ.) | COLD START 40A (twidth=1250μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | ||||||||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER | 2 unit (circuit breaker of type B) / 4 units (circuit breaker of type C) at 480VAC | ||||||||
| LEAKAGE CURRENT | <0.75mA / 480VAC | ||||||||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||
|
OVER VOLTAGE |
240 ~ 259V | 158 ~ 178V | 118 ~ 136V | 62 ~ 78V | |||||
| Shut down output voltage, re-power on to recovery | |||||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | ||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 55℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN613471-2-16, BS EN/EN60384, IP67, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4.2KVAC | I/P-FG:2.1KVAC | O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3, FCC Part 15 class B, EAC TP TC 020 | ||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 8KV, Line-Line 4KV), EAC TP TC 020 | ||||||||
|
OTHERS |
MTBF | 218.8K hrs min. Telcordia SR-332(Bellcore); 60.2K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 280*144*48.5mm (L*W*H) | ||||||||
| PACKING | 3.9Kg; 4pcs/16.6Kg/0.98CUFT | ||||||||
Application
- Harbor lighting
- LED high-bay lighting
- Parking lot lighting
- LED fishing lamp
- Horticulture lighting
- Stadium lighting
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified)
