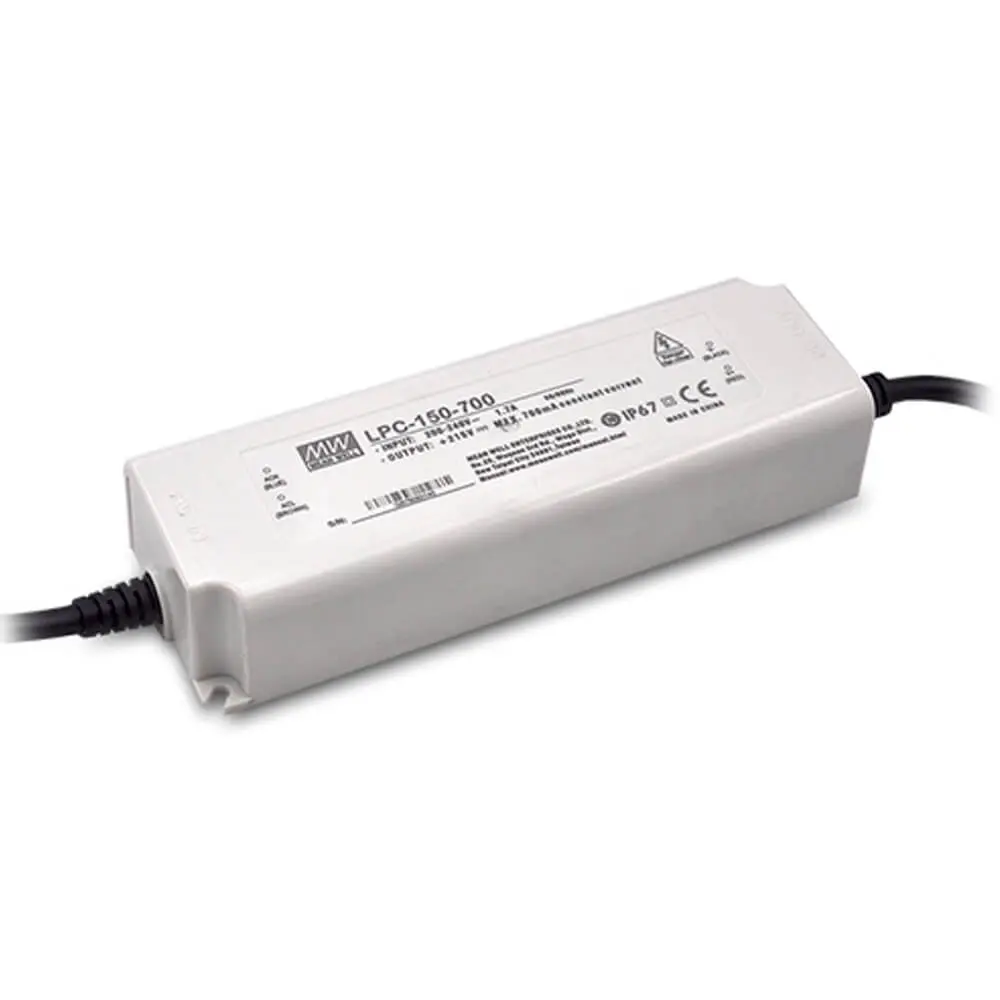

November 14, 2022150W Single Output Switching Power Supply LPC-150 series
Features
- Constant current design
- 180~305VAC input only
- High efficiency up to 90%
- Protections: Short circuit / Over voltage / Over temperature
- Cooling by free air convection
- Fully encapsulated with IP67 level (Note.7)
- Fully isolated plastic case
- Class II power unit, no FG
- Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
LPC-150 Series Data Sheet Download
Specification
| MODEL | LPC-150-350 | LPC-150-500 | LPC-150-700 | LPC-150-1050 | LPC-150-1400 | LPC-150-1750 | LPC-150-2100 | LPC-150-2450 | LPC-150-2800 | LPC-150-3150 | |
|
OUTPUT |
RATED CURRENT | 350mA | 500mA | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | 2450mA | 2800mA | 3150mA |
| CURRENT ACCURACY | ±5.0% | ||||||||||
| CONSTANT CURRENT REGION Note.5 | 215 ~ 430V | 150 ~ 300V | 107V ~ 215V | 72V ~ 144V | 54V ~ 108V | 43V ~ 86V | 36V ~ 72V | 31V ~ 62V | 27V ~ 54V | 24V ~ 48V | |
| RATED POWER | 150.5W | 150W | 150.5W | 151.2W | 151.2W | 150.5W | 151.2W | 151.9W | 151.2W | 151.2W | |
| RIPPLE CURRENT | ±5% | ||||||||||
| RIPPLE & NOISE | 2Vp-p | 1.5Vp-p | 1Vp-p | 1Vp-p | 1Vp-p | 1Vp-p | 1Vp-p | 1Vp-p | 1Vp-p | 1Vp-p | |
| VOLTAGE TOLERANCE | ±2.0% | ||||||||||
| LINE REGULATION | ±1% | ||||||||||
| SETUP, RISE TIME | 1000ms, 80ms / 230VAC at full load | ||||||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC at full load | ||||||||||
|
INPUT |
VOLTAGE RANGE Note.2 | 180 ~ 305VAC 254VDC ~ 431VDC | |||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||
| EFFICIENCY (Typ.) | 90% | ||||||||||
| AC CURRENT (Typ.) | 1.7 A / 230VAC 1.5A / 277VAC | ||||||||||
| INRUSH CURRENT (Typ.) | COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC | ||||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | ||||||||||
| LEAKAGE CURRENT | <0.25mA / 277VAC | ||||||||||
|
PROTECTION |
SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 440 ~ 470V | 330 ~ 365V | 235 ~ 265V | 158 ~ 188V | 115 ~ 135V | 96 ~ 115V | 80 ~ 97V | 69 ~ 80V | 63 ~ 75V | 55 ~ 65V | |
| Protection type: Shut down and latch off o/p voltage re-power on to recovery | |||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||||
|
ENVIRONMENT |
WORKING TEMP. | -25 ~ +50℃ (Refer to “Derating Curve”) | |||||||||
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | ||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +70℃, 10 ~ 95% RH | ||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||||
|
SAFETY & EMC |
SAFETY STANDARDS | BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67; IEC 62368-1, BS EN/EN62368-1 approved | |||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A (≤80% load); BS EN/EN61000-3-3, EAC TP TC 020 | ||||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||||||||||
|
OTHERS |
MTBF | 3528.4K hrs min. Telcordia SR-332 (Bellcore); 479.1K hrs min. MIL-HDBK-217F (25℃) | |||||||||
| DIMENSION | 191*63*37.5mm (L*W*H) | ||||||||||
| PACKING | 0.74Kg; 20pcs/15.8Kg/0.95CUFT | ||||||||||
