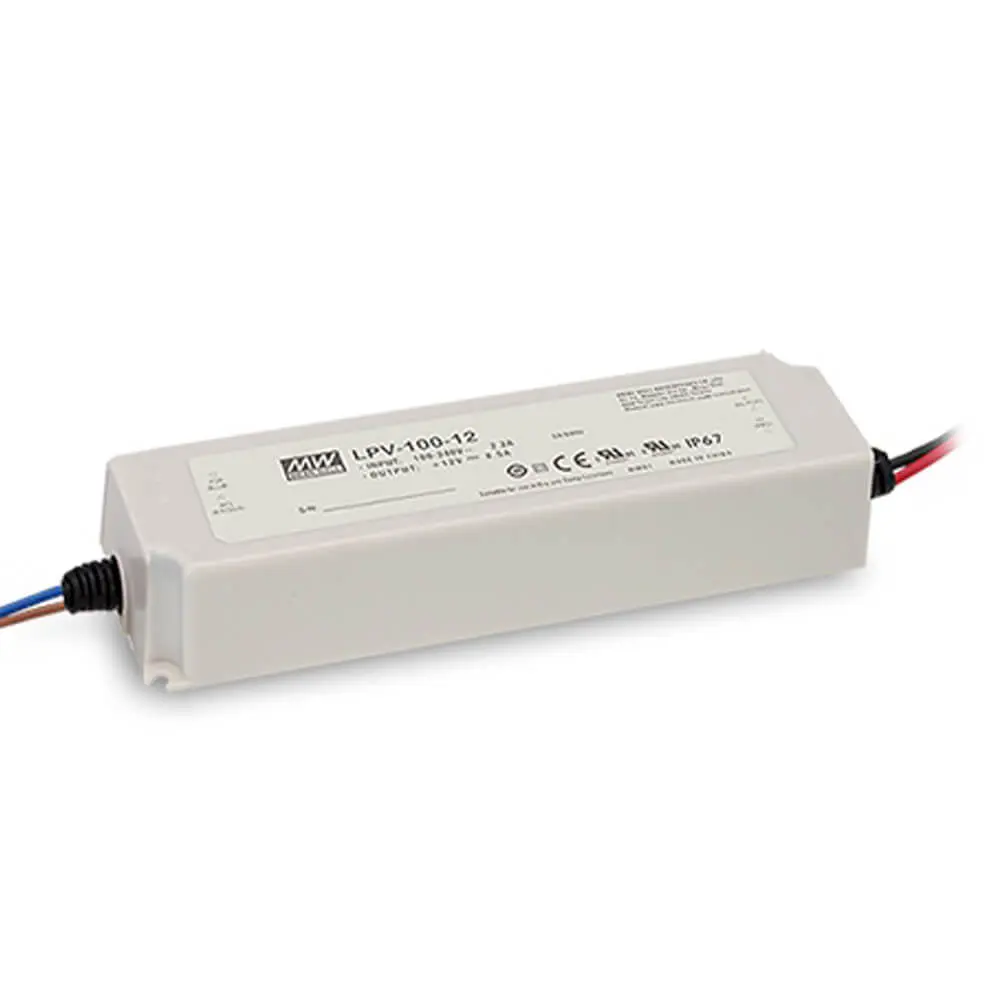

November 15, 2022100W Single Output Switching Power Supply LPV-100 series
Features
- Constant voltage design
- Universal AC input / Full range
- Fully encapsulated with IP67 level
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- 100% full load burn-in test
- Low cost, high reliability
- Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
- 2 years warranty
LPV-100 Series Data Sheet Download
Specification
| MODEL | LPV-100-5 | LPV-100-12 | LPV-100-15 | LPV-100-24 | LPV-100-36 | LPV-100-48 | |
|
OUTPUT |
DC VOLTAGE | 5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 12A | 8.5A | 6.7A | 4.2A | 2.8A | 2.1A | |
| CURRENT RANGE | 0 ~ 12A | 0 ~ 8.5A | 0 ~ 6.7A | 0 ~ 4.2A | 0 ~ 2.8A | 0 ~ 2.1A | |
| RATED POWER | 60W | 102W | 100.5W | 100.8W | 100.8W | 100.8W | |
| RIPPLE & NOISE (max.) Note.2 | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±8.0% | ±5.0% | |||||
| LINE REGULATION | ±1.0% | ||||||
| LOAD REGULATION | ±6.0% | ±2.0% | |||||
| SETUP, RISE TIME Note.6 | 2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC | ||||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 14ms/115VAC at full load | ||||||
|
INPUT |
VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 80% | 85% | 87% | 88% | 88% | 89% | |
| AC CURRENT | 2.2A/115VAC 1.2A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 75A (twidth=700μs measured at 50% Ipeak) at 230VAC | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | 0.25mA / 240VAC | ||||||
|
PROTECTION |
OVERLOAD | 110 ~ 150% rated output power | |||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | 41.4 ~ 48.6V | 55.2 ~ 64.8V | |
| Protection type: Shut down o/p voltage, re-power on to recover | |||||||
|
ENVIRONMENT |
WORKING TEMP. | -25 ~ +70℃ (Refer to “Derating Curve”) | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750, CSA C22.2 No 250.13-12, UL879, CSA C22.2 No.207-M89, BIS IS15885(for LPV-100-12, LPV-100-24 only), EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A (≤80% load), BS EN/EN61000-3-3, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55024, light industry level, EAC TP TC 020 | ||||||
|
OTHERS |
MTBF | 4497.1K hrs min. Telcordia SR-332 (Bellcore); 681.6Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 190*52*37mm (L*W*H) | ||||||
| PACKING | 0.63Kg; 20pcs/13.6Kg/0.55CUFT | ||||||
