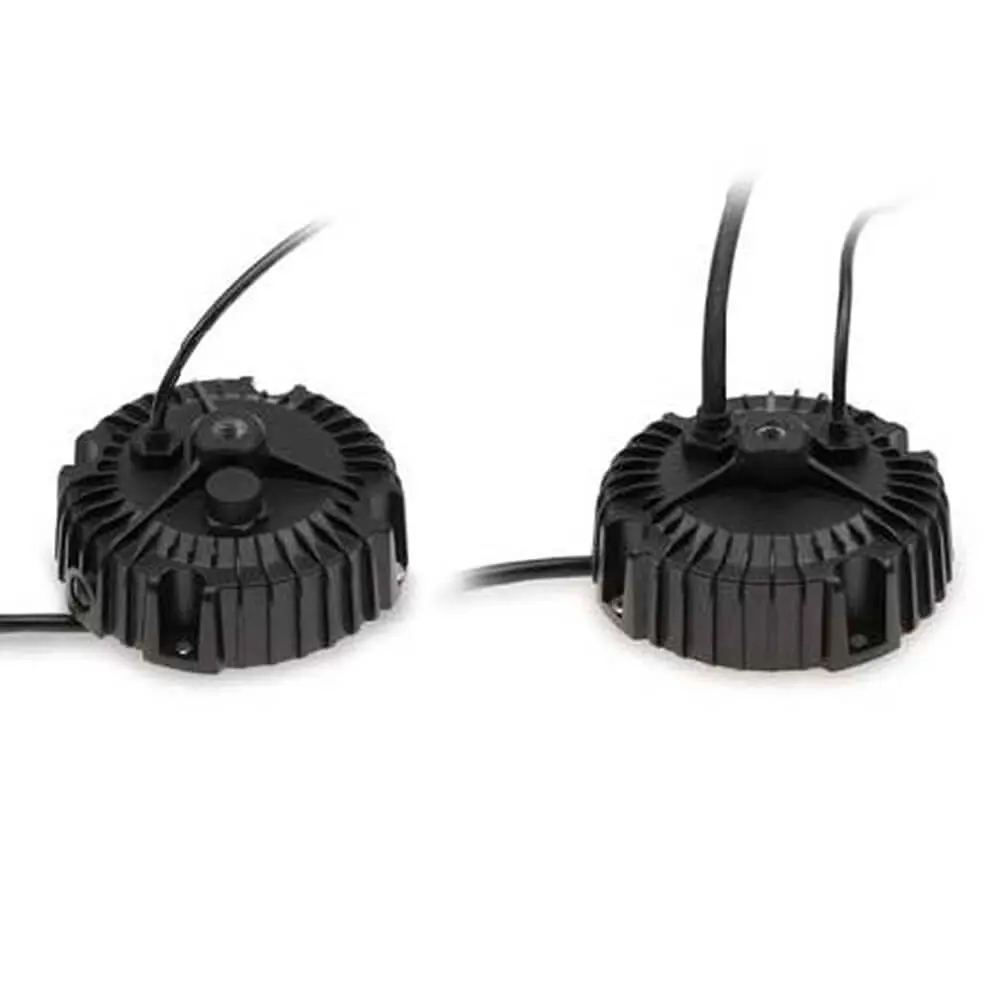

May 29, 2022MW Mean Well Meanwell 100W Constant Power Mode LED Driver XBG-100 series
Features
- Full power output at 70~100% constant current range operation
- Wide input range 90 ~ 305VAC with active PFC function
- Metal housing design with IP67
- Multiple dimming functions: 3 in 1(0-10V/PWM/Resistor)
- Dimming circuit with isolated for latest safety regulation
- Surge protection with 6KV/4KV
- Typical lifetime>50000 hours and 5 years warranty
- AC input cable with connector for flexible installation
Mean Well LED Driver XBG-100 Series Data Sheet Download
Description
XBG-100 series is a 100W AC/DC LED driver featuring the constant power mode. XBG-100 operates from 90~305VAC and offers with different rated current ranging between 1750mA and 2780mA. Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and P67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments. XBG-100 series comply with the latest version of EC61347/ EC60598-1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation.
In Mean Well LED driver XBG family, there are XBG-100 series, XBG-160 series and XBG-240 series.

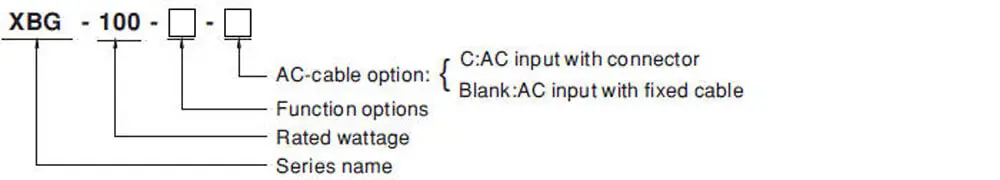

Mean Well LED Driver XBG-100 Series Model Encoding
| Type | P Level | Function | Note |
| A | P67 | constant power adjustable via built-in potentiometer | in Stock |
| AB | P67 | constant power adjustable via built-in potentiometer +
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistor) |
in Stock |
Specification
| MODEL | XBG-100- – | ||||||
|
OUTPUT |
DEFAULT CURRENT | 2100mA | |||||
| RATED POWER | 100W | ||||||
| CONSTANT CURRBS EN/ENT REGION | 27 ~ 56V | ||||||
| FULL POWER CURRENT RANGE | 1750~2780mA | ||||||
| OPEN CIRCUIT VOLTAGE (max.) | 60V | ||||||
| CURRENT ADJ. RANGE | 875~2780mA | ||||||
| CURRENT RIPPLE | 3.0% max. @rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| SET UP TIME | Note.4 | 500ms/230VAC, 1200ms/115VAC | |||||
|
INPUT |
VOLTAGE RANGE | Note.2 | 90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR (Typ.) | PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load
(Please refer to “Power Factor Characteristic” section) |
||||||
| TOTAL HARMONIC DISTORTION | THD< 10% (@ load≧50% at 115VAC/230VAC, @load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section | ||||||
| EFFICIENCY (Typ.) | 92% | ||||||
| AC CURRENT (Typ.) | 1.1A / 115VAC 0.5A / 230VAC 0.42A / 277VAC | ||||||
| INRUSH CURRENT(Typ.) | μCOLD START 50A (twidth=400 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER | 8 unit (circuit breaker of type B) / 14 units(circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||
| STANDBY
POWER CONSUMPTION |
Standby power consumption<0.5W for AB-Type |
||||||
|
PROTECTION |
OVER POWER | 105-150% | |||||
| Hiccup mode, recovers automatically after fault condition is removed | |||||||
| SHORT CIRCUIT | Constant current limiting or Hiccup mode, recovers automatically after fault condition is removed | ||||||
|
OVER VOLTAGE |
61 ~ 78V | ||||||
| Shut down output voltage, re-power on after fault condition is removed to recover | |||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on after fault condition is removed to recover | ||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;
IS15885(Part2/Sec13); GB19510.1, GB19510.14; IP67; EAC TP TC 004 approved |
|||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-PE:2KVAC O/P-PE:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-PE, O/P-PE:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
|
EMC EMISSION |
Parameter | Standard | Test Level/Note | ||||
| Conducted | BS EN/EN55015(CISPR15),GB/T17743 | —– | |||||
| Radiated | BS EN/EN55015(CISPR15),GB/T17743 | —– | |||||
| Harmonic Current | BS EN/EN61000-3-2,GB/T17625.1 | Class C @load≥50% | |||||
| Voltage Flicker | BS EN/EN61000-3-3 | —– | |||||
|
EMC IMMUNITY |
BS EN/EN61547 | ||||||
| Parameter | Standard | Test Level/Note | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||||
| Radiated | BS EN/EN61000-4-3 | Level 3 | |||||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | |||||
| Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 6KV/Line-Earth | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods |
|||||
|
OTHERS |
MTBF | 727.29K hrs min. | Telcordia SR-332(Bellcore) ;188.8K hrs min. | MIL-HDBK-217F (25℃) | |||
| LIFETIME | Note.5 | 50000 hrs min. | |||||
| DIMENSION | φ130mm *56mm(D*H) | ||||||
| PACKING | 0.8Kg; 16pcs/ 14.8Kg/1.57CUFT | ||||||
Application
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Explosion-proof lighting
- Type HL LED driver for classⅠ division 2.
