August 25, 2023MEAN WELL NDR-480 Series 480W DIN Rail Power Supply
The MEAN WELL NDR-480 Series is a 480W single output industrial DIN rail power supply designed for control cabinets, automation systems, and electro-mechanical equipment that require stable DC power in a compact rail-mounted form.
It supports universal AC input from 90–264VAC and can be installed on TS-35/7.5 or TS-35/15 DIN rails. The series includes NDR-480-24 and NDR-480-48 model options, providing 24V/20A and 48V/10A outputs for different industrial control and automation power requirements.
With built-in active PFC, up to 92.5% efficiency, metal housing, free air convection cooling, short circuit, overload, over voltage, and over temperature protection, the NDR-480 Series is suitable for industrial control systems, factory automation, control panels, machinery equipment, and other DIN rail power supply applications.
Overview
The MEAN WELL NDR-480 Series is a 480W single output industrial DIN rail power supply designed for control cabinets, automation equipment, and electro-mechanical systems that require reliable DC power in a compact rail-mounted format.
As part of the MEAN WELL product range, the NDR-480 Series belongs to the AC/DC DIN rail power supply category and supports a universal 90–264VAC input range. The series includes NDR-480-24 and NDR-480-48 model options, providing 24V/20A and 48V/10A outputs for different industrial control and automation power requirements.
With its metal housing, built-in active PFC function, up to 92.5% efficiency, free air convection cooling, and complete protection functions, the NDR-480 Series is suitable for industrial control systems, factory automation, control panels, machinery equipment, and other 480W DIN rail power supply applications.
Features
- 480W single output industrial DIN rail power supply
- Universal 90–264VAC input range for industrial power systems
- Built-in active PFC function for improved power factor performance
- Available in NDR-480-24 and NDR-480-48 model options
- 24V/20A and 48V/10A output versions for different DC power requirements
- High working efficiency up to 92.5%
- Compact 85.5mm width for space-saving control cabinet installation
- DIN rail TS-35/7.5 or TS-35/15 mounting support
- Metal housing designed to enhance power dissipation
- Cooling by free air convection without built-in fan
- Short circuit, overload, over voltage, and over temperature protection
- Suitable for inductive and capacitive load applications
- 100% full load burn-in test
- UL508 approved for industrial control equipment
- 3 years warranty
Need help selecting the right DIN rail power supply? Compare the main specifications of NDR-480-24 and NDR-480-48 below.
NDR-480 Series Specifications
The table below lists the main specifications of the MEAN WELL NDR-480 Series 480W DIN rail power supply, including NDR-480-24 and NDR-480-48 model options.
It helps users compare the 24V and 48V output versions according to output voltage, rated current, voltage adjustment range, input range, efficiency, protection functions, installation type, and operating conditions.
| Item | NDR-480-24 | NDR-480-48 |
|---|---|---|
| DC Output Voltage | 24V | 48V |
| Rated Current | 20A | 10A |
| Current Range | 0–20A | 0–10A |
| Rated Power | 480W | 480W |
| Ripple & Noise | 150mVp-p | 150mVp-p |
| Output Voltage Adjustment Range | 24–28V | 48–55V |
| Voltage Tolerance | ±1.0% | ±1.0% |
| Line Regulation | ±0.5% | ±0.5% |
| Load Regulation | ±1.0% | ±1.0% |
| Efficiency Typ. | 92.5% | 92.5% |
| Common Specification | NDR-480 Series |
|---|---|
| Input Voltage Range | 90–264VAC / 127–370VDC |
| Frequency Range | 47–63Hz |
| AC Current Typ. | 4.8A at 115VAC / 2.4A at 230VAC |
| Power Factor Typ. | PF >0.98 at 115VAC / PF >0.94 at 230VAC at full load |
| Inrush Current Typ. | 20A at 115VAC / 35A at 230VAC |
| Leakage Current | <2mA at 240VAC |
| Protection | Short circuit, overload, over voltage, over temperature |
| Cooling | Free air convection |
| Working Temperature | -20°C to +70°C, refer to derating curve |
| Working Humidity | 20–95% RH non-condensing |
| DIN Rail Installation | TS-35/7.5 or TS-35/15 |
| Dimensions | 85.5 × 125.2 × 128.5mm, W × H × D |
| Packing | 1.5kg per unit; 8pcs / 13kg / 0.9CUFT |
Need more technical details? Continue below for protection behavior, installation clearance, derating curve, mechanical dimensions, safety approvals, EMC compliance, and datasheet download.
Models in the NDR-480 Series
This product line includes two standard model options: NDR-480-24 and NDR-480-48.
The main difference between the two models is the DC output voltage and rated output current. NDR-480-24 is designed for 24VDC systems up to 20A, while NDR-480-48 is designed for 48VDC systems up to 10A. Both models provide 480W rated output power for industrial DIN rail power supply applications.
NDR-480-24
NDR-480-24 is the 24V output model in the MEAN WELL NDR-480 Series. It provides 24VDC output, 20A rated current, 480W rated power, a 0–20A current range, and a 24–28V output voltage adjustment range.
Choose NDR-480-24 when the system requires a 24V 480W DIN rail power supply for industrial control, automation, control cabinet, or electro-mechanical equipment requiring 24VDC input power.
NDR-480-48
NDR-480-48 is the 48V output model in the MEAN WELL NDR-480 Series. It provides 48VDC output, 10A rated current, 480W rated power, a 0–10A current range, and a 48–55V output voltage adjustment range.
Choose NDR-480-48 when the system requires a 48V 480W DIN rail power supply for industrial equipment, automation systems, control panels, or electro-mechanical applications requiring 48VDC input power.
How to Select Between NDR-480-24 and NDR-480-48
Select the model according to the required DC bus voltage of the equipment. Use NDR-480-24 for 24VDC systems and NDR-480-48 for 48VDC systems.
Before confirming the model, check the total load current, peak current demand, cabinet temperature, installation space, input voltage condition, and derating requirements. For complete electrical and mechanical data, refer to the specification table above and the official NDR-480 Series datasheet.
Related MEAN WELL NDR DIN Rail Power Supply Models
If you are evaluating similar MEAN WELL DIN rail power supply options for industrial control systems, factory automation, control cabinets, or different output power requirements, the following product category and NDR Series models may also be relevant for comparison:
- MEAN WELL DIN Rail Power Supplies – Browse AC/DC DIN rail power supply options for industrial control panels, automation systems, machinery equipment, and cabinet-mounted DC power applications.
- NDR-120 Series – Lower-power DIN rail power supply option for applications that require less output capacity than the NDR-480 Series.
- NDR-240 Series – 240W DIN rail power supply option for industrial control and automation systems with medium power requirements.
- NDR-960 Series – Higher-power DIN rail power supply option for systems requiring more output capacity than the NDR-480 Series.
Protection, DIN Rail Installation and DC OK Indicator
The NDR-480 Series is designed for industrial DIN rail power supply applications that require stable DC output, cabinet installation, and basic status indication. Instead of remote control or remote sense functions, this series focuses on reliable power conversion, protection functions, DIN rail mounting, and simple front-panel output status indication.
With built-in protection functions, free air convection cooling, and TS-35 DIN rail compatibility, the NDR-480 Series is suitable for industrial control systems, factory automation equipment, control cabinets, and electro-mechanical apparatus.
Protection Functions
The NDR-480 Series includes short circuit, overload, over voltage, and over temperature protection. These protection functions help improve system reliability when the power supply is used in industrial control panels and automation equipment.
For overload protection, the datasheet specifies 105–130% rated output power. The unit uses constant current limiting and shuts down after 3 seconds, with re-power-on required for recovery. For over voltage protection, the output shuts down and re-power-on is required to recover. For over temperature protection, the output shuts down and recovers automatically after the temperature goes down.
DIN Rail Installation
The NDR-480 Series can be installed on standard DIN rail TS-35/7.5 or TS-35/15. Its 85.5mm width helps save cabinet space while providing 480W rated output power for 24VDC or 48VDC systems.
For permanent full-power loading, the datasheet recommends installation clearances of 40mm on the top, 20mm on the bottom, and 5mm on the left and right sides. If the adjacent device is a heat source, 15mm side clearance is recommended.
Terminal Assignment
The NDR-480 Series uses separate input and output terminal blocks. According to the mechanical specification, TB1 is used for FG, AC/L or DC+, and AC/N or DC- input connections. TB2 is used for DC output connections, with terminals assigned to +V and -V output.
Correct terminal wiring, cabinet ventilation, and derating review are important before installation, especially when the power supply is used near full load or in higher-temperature environments.
DC OK Indicator
The front panel of the NDR-480 Series includes a DC OK indicator and output voltage adjustment access. The DC OK indicator provides a simple visual reference for output status during installation, inspection, and maintenance.
Need installation and wiring details for the NDR-480 Series? Continue below to review mechanical dimensions, terminal assignment, installation clearance, derating information, safety approvals, EMC compliance, and datasheet download.

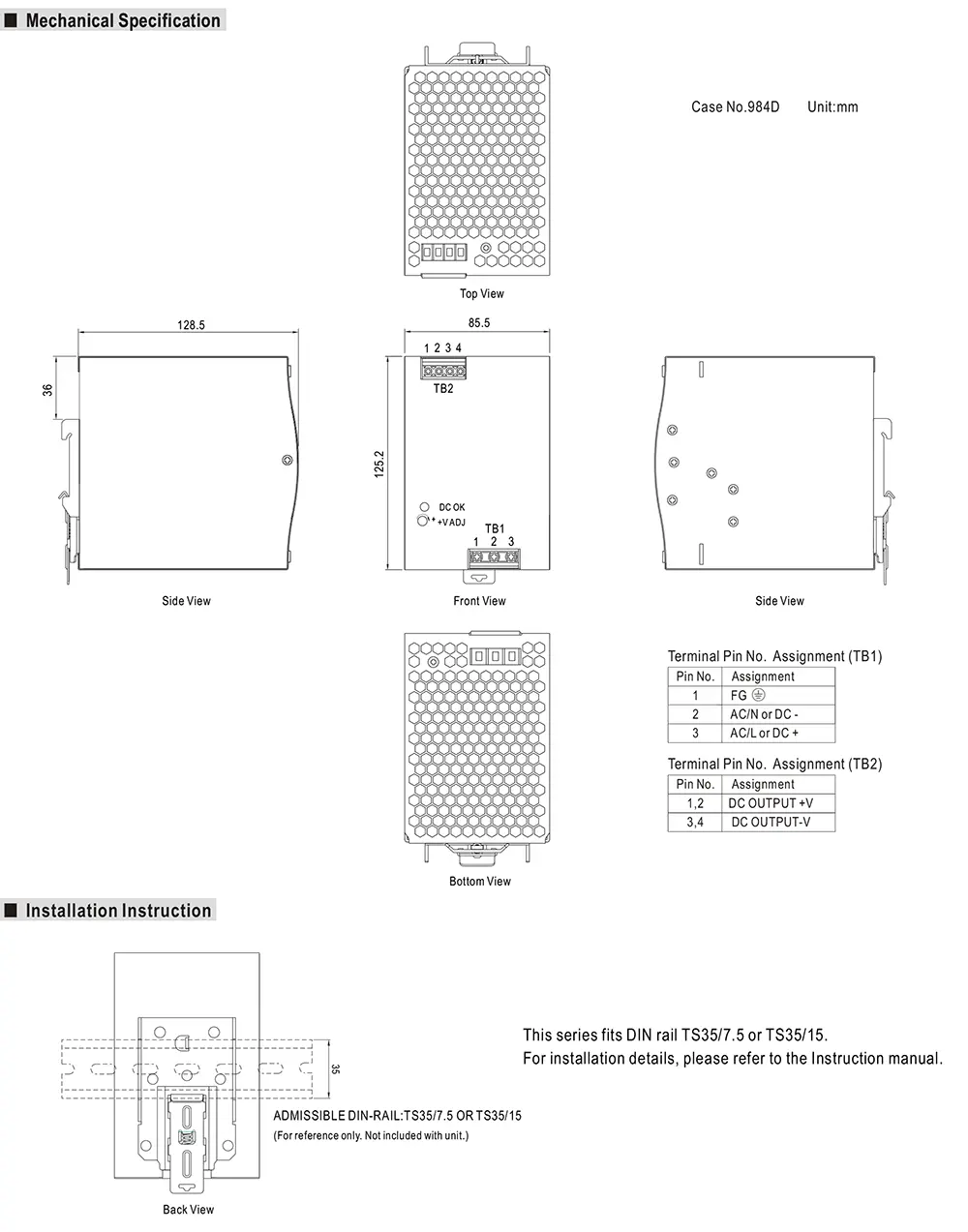

Mechanical Dimensions and Installation
The MEAN WELL NDR-480 Series uses a compact metal housing with overall dimensions of 85.5 × 125.2 × 128.5mm. The series is designed for DIN rail installation in industrial control cabinets, automation systems, and electro-mechanical equipment.
Dimensions
The overall mechanical size is 85.5 × 125.2 × 128.5mm, W × H × D. Its 85.5mm width helps save cabinet space while providing 480W rated output power for 24VDC or 48VDC industrial power applications.
DIN Rail Installation
The NDR-480 Series can be installed on standard DIN rail TS-35/7.5 or TS-35/15. This makes the series suitable for control cabinet installation where rail-mounted power supplies are required for industrial control systems, factory automation, and electro-mechanical apparatus.
Terminal Assignment
The NDR-480 Series uses terminal blocks for input and output wiring. According to the mechanical specification, TB1 is used for input connections: FG, AC/L or DC+, and AC/N or DC-. TB2 is used for DC output connections, with terminals assigned to +V and -V output.
The front side also includes +V adjustment access and a DC OK indicator for output voltage adjustment and basic output status checking during installation and maintenance.
Installation Notes
For permanent full-power loading, the datasheet recommends installation clearances of 40mm on the top, 20mm on the bottom, and 5mm on the left and right sides. If the adjacent device is a heat source, 15mm side clearance is recommended.
Proper DIN rail mounting, terminal wiring, cabinet ventilation, and derating review are important before final installation, especially when the power supply operates near full load or in higher-temperature control cabinets.
Need application and compliance information for the NDR-480 Series? Continue below to explore recommended applications, certifications, safety standards, EMC compliance, and datasheet download.
Applications
The MEAN WELL NDR-480 Series is suitable for industrial systems that require 480W DIN rail power supply, stable DC output, universal AC input, built-in active PFC, and reliable cabinet-mounted installation.
With its metal housing, free air convection cooling, DIN rail TS-35/7.5 or TS-35/15 mounting support, and complete protection functions, the NDR-480 Series is well suited for industrial control, automation, and electro-mechanical equipment applications where 24VDC or 48VDC power is required.
Need certification and compliance details for your project? Continue below to review the safety standards, EMC information, industrial immunity level, and related approval data for this series.
Certifications and Safety
The MEAN WELL NDR-480 Series is designed for industrial DIN rail power supply applications that require safety approvals, EMC compliance, industrial immunity performance, and reliable operation inside control cabinets and automation equipment.
According to the official datasheet, the series includes safety approvals and compliance information for industrial control equipment, AC/DC power supply systems, and electro-mechanical apparatus applications.
- UL508 approved for industrial control equipment
- TUV BS EN/EN62368-1 approved
- EAC TP TC 004 approved
- BSMI CNS14336-1 approved
- Meets BS EN/EN60204-1 requirements
- BS EN/EN61000-6-2 industrial immunity level
- 100% full load burn-in test
- 3 years warranty
The datasheet also lists EMC emission compliance with BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2, BS EN/EN61000-3-3, EAC TP TC 020, and CNS13438 Class B.
For EMC immunity, the NDR-480 Series complies with BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11, BS EN/EN55024, BS EN/EN61000-6-2, and BS EN/EN61204-3 heavy industry level.
For electrical safety design, the datasheet specifies withstand voltage of I/P-O/P: 3KVAC, I/P-FG: 2KVAC, and O/P-FG: 0.5KVAC. Isolation resistance is listed as greater than 100M Ohms between I/P-O/P, I/P-FG, and O/P-FG at 500VDC, 25°C, and 70% RH.
The NDR-480 Series also includes short circuit, overload, over voltage, and over temperature protection. For final equipment integration, users should still confirm that the complete system complies with applicable EMC, safety, wiring, grounding, and installation requirements.
Need more product details before sending an inquiry? Continue below to review common questions about the MEAN WELL NDR-480 Series.
FAQ
The MEAN WELL NDR-480 Series is a 480W single output industrial DIN rail power supply designed for industrial control systems, factory automation, control cabinets, and electro-mechanical equipment.
The NDR-480 Series includes two standard model options: NDR-480-24 and NDR-480-48. NDR-480-24 provides 24VDC output at 20A, while NDR-480-48 provides 48VDC output at 10A.
The main difference is the output voltage and rated current. NDR-480-24 is for 24VDC systems up to 20A, while NDR-480-48 is for 48VDC systems up to 10A. Both models provide 480W rated output power.
The NDR-480 Series supports 90–264VAC input and 127–370VDC input, with a frequency range of 47–63Hz. This makes it suitable for many industrial AC/DC power supply applications.
Yes. The NDR-480 Series includes built-in active PFC function. According to the datasheet, the typical power factor is greater than 0.98 at 115VAC and greater than 0.94 at 230VAC under full load.
Yes. The NDR-480 Series can be installed on DIN rail TS-35/7.5 or TS-35/15. It is designed for rail-mounted installation inside industrial control cabinets and automation panels.
The NDR-480 Series includes short circuit, overload, over voltage, and over temperature protection. These protection functions help support reliable operation in industrial control and automation systems.
Both NDR-480-24 and NDR-480-48 have a typical efficiency of 92.5%. The series uses a metal housing and free air convection cooling to support heat dissipation during operation.
The NDR-480 Series has overall dimensions of 85.5 × 125.2 × 128.5mm, W × H × D. Its 85.5mm width helps save space in industrial control cabinets.
The NDR-480 Series is suitable for industrial control systems, factory automation, electro-mechanical apparatus, control cabinets, machinery equipment, and other 24VDC or 48VDC DIN rail power supply applications.
