MEAN WELL NSP-3200 Series 3200W-Class AC/DC Enclosed Power Supply | NSP-3200-24 / NSP-3200-48

Overview of MEAN WELL NSP-3200 Series

The MEAN WELL NSP-3200 Series is a 3200W AC/DC enclosed power supply platform designed for high-reliability industrial, telecom, automation, test, measurement, medical and high-power electronic system applications. It integrates active PFC, high-efficiency conversion technology, programmable output voltage and current, built-in CANBus communication, optional MODBus protocol by request and intelligent fan speed control for advanced system-level power integration.

As part of MEAN WELL’s high-power enclosed power supply family, the NSP-3200 Series is widely used in industrial automation machinery, control systems, security systems, mechanical and electrical equipment, electronic instruments, network equipment, telecom devices, PoE power sourcing equipment, supercapacitor systems and high-power DC distribution systems. It is commonly specified as NSP-3200-24 power supply, NSP-3200-48 AC/DC enclosed power supply, 24V 133A power supply and 48V 67A power supply in OEM and industrial procurement projects.

The series supports an ultra-wide 90–264Vac input range with active PFC, making it suitable for global 115Vac and 230Vac power systems. With efficiency up to 94.5%, 200% peak power capability under specified input voltage, duty cycle and peak-duration conditions, Remote Sense, remote ON/OFF control, DC OK signal, 5Vaux and 12Vaux auxiliary outputs, conformal coating and complete protection functions, the NSP-3200 Series is optimized for stable high-power DC output and intelligent system monitoring.

For higher power architecture, the NSP-3200 Series supports built-in active current sharing and parallel operation scalable power architecture via parallel operation. This makes it suitable for high-current DC distribution systems, centralized power cabinets, industrial automation equipment, PoE infrastructure and other demanding applications requiring scalable power capacity.

Available output models include NSP-3200-24 and NSP-3200-48, covering 24V and 48V DC output options for high-power industrial and equipment-level DC power systems.

The NSP-3200 Series is commonly selected for industrial control systems, automation machinery, network and telecom equipment, medical equipment, PoE power sourcing systems, supercapacitor systems and OEM applications requiring programmable output control, communication capability, parallel expansion and long-term operational reliability.

Features

• 3200W-class AC/DC enclosed power supply with active PFC function for high-reliability industrial and multi-industry power systems
• Ultra-wide 90–264Vac input range with 250–431Vdc input support for global equipment integration
• Compact enclosed design with 325.8 × 107 × 41 mm dimensions for space-saving high-power installation
• High efficiency up to 94.5% for stable 3.2kW-class DC output operation
• 200% peak power capability under specified operating conditions for short-duration peak-load and transient requirements
• Available in NSP-3200-24 and NSP-3200-48 models
• 24V and 48V DC output options for different high-power DC system architectures
• Programmable output voltage from 50–125% of nominal output voltage for flexible system-level voltage control
• Programmable output current from 0–100% of rated current for controlled constant-current operation
• Built-in CANBus communication for control, setting and monitoring functions
• MODBus protocol available by request for projects requiring MODBus-based communication
• Built-in active current sharing supports parallel operation up (up to 4 units, system dependent)
• Built-in remote ON/OFF control for system-level power management
• Remote Sense function compensates voltage drop on load wiring up to 0.5Vdc
• 12Vaux auxiliary power (0.8A) for control and monitoring circuits
• Built-in DC OK signal for output status monitoring
• Built-in constant current limiting circuit with selectable overload protection behavior
• Protections against short circuit, overload, over voltage and over temperature
• Built-in intelligent fan speed control with low-noise operation under light load conditions
• Wide operating temperature range from -40℃ to +85℃ with derating according to operating conditions
• Conformal coating for improved reliability in demanding equipment environments
• Extremely low leakage current below 500μA with 2 × MOPP isolation compliance under specified conditions and MOPP suitability for 100–240Vac input according to the datasheet note
• Safety approvals include IEC/EN/UL 62368-1, IEC/EN 60601-1, IEC/EN 60335-1, IEC/EN 61558-1/-2-16, IEC/EN/UL 61010-1/-2-201 and IEC/EN 62477-1
• Suitable for industrial automation machinery, control systems, security systems, network equipment, telecom devices, PoE power sourcing equipment, medical devices and supercapacitor systems
• 5-year manufacturer warranty

Need help selecting the right output voltage? Compare NSP-3200-24 and NSP-3200-48 below.

Model Selection Guide for NSP-3200 Series

The MEAN WELL NSP-3200 Series offers a focused range of high-power single-output models from 24V to 48V DC, allowing engineers, OEM buyers and system integrators to select the most suitable 3200W AC/DC enclosed power supply based on system voltage, rated current demand, peak-load requirement, communication protocol, parallel operation requirement and application environment.

Each model shares the same 90–264Vac ultra-wide input range, active PFC design, compact 325.8 × 107 × 41 mm enclosed structure, programmable output voltage and current, built-in CANBus communication, optional MODBus protocol by request, remote ON/OFF control, Remote Sense, DC OK signal, 5Vaux and 12Vaux auxiliary power, intelligent fan speed control and complete protection functions, while providing different output voltages and current ratings for industrial automation, telecom equipment, PoE infrastructure, medical devices, security systems, network equipment, supercapacitor systems and high-power DC distribution applications.

24V High-Current Industrial Systems

The NSP-3200-24 model is designed for high-current 24V DC systems, industrial automation equipment, control systems, power distribution units and high-power electronic devices requiring stable regulated 24V output with very high current capability.

Search terms such as NSP-3200-24 power supply, 3200W 24V power supply, 24V 133A power supply and high current industrial 24V PSU are commonly used for this model.

This model provides 24V output with 133.3A rated current and 3200W rated power, making it suitable for high-current 24V DC power distribution and stable system operation.

48V Industrial DC Bus, Telecom & PoE Applications

The NSP-3200-48 model is suitable for 48V industrial DC bus systems, telecom equipment, network systems, PoE power sourcing equipment, distributed power systems, automation equipment and higher-voltage industrial power architectures.

The NSP-3200-48 AC/DC enclosed power supply is especially relevant for system designs where 48V DC is used to reduce current, improve distribution efficiency and support high-power equipment integration. Search terms such as 48V 67A power supply, 3200W 48V power supply and CANBus 48V power supply are commonly aligned with this model.

This model provides 48V output with 66.6A rated current and 3200W rated power, making it suitable for telecom, PoE and industrial DC bus systems.

Programmable Voltage, Current Control & Communication Applications

The NSP-3200 Series supports programmable output voltage from 50–125% of nominal output voltage and programmable output current from 0–100% of rated current. These functions are useful for equipment requiring voltage tuning, current limiting, controlled DC output adjustment, battery-related testing, supercapacitor systems and system-level power optimization.

Built-in CANBus communication provides control, setting and monitoring functions, while MODBus protocol is available by request for projects requiring MODBus-based integration. Remote Sense compensates voltage drop on load wiring up to 0.5Vdc, and the series also provides remote ON/OFF control, DC OK signal, 5Vaux and 12Vaux auxiliary outputs for intelligent power system integration.

Parallel Operation for Higher Power Systems

For applications requiring more than 3200W, the NSP-3200 Series supports built-in active current sharing and parallel operation up to 12800W or 4-unit systems. This makes it suitable for scalable DC power cabinets, high-current industrial systems, centralized power distribution, PoE infrastructure and equipment platforms requiring redundant or expanded power capacity.

Search terms such as parallel power supply 12800W, NSP-3200 parallel operation and high power CANBus power supply are useful long-tail keywords for buyers designing larger DC power systems.

Need help choosing the correct NSP-3200 model? Match your system voltage, rated current, peak power demand, programmable voltage/current requirement, CANBus or MODBus communication need, parallel operation requirement, installation space and application environment to select the most suitable 3200W AC/DC enclosed power supply for your application.

Related MEAN WELL Power Supply Series

For system design comparison and power architecture planning, the following MEAN WELL power supply series are commonly used alongside the NSP-3200 Series in industrial automation, telecom equipment, PoE infrastructure, medical devices, supercapacitor systems, high-power DC distribution and system integration applications:

•
  NSP-500 Series – 500W AC/DC enclosed power supply for industrial automation, control equipment, machinery systems and low-power DC applications requiring compact AC/DC conversion.
•
  NSP-750 Series – 750W AC/DC enclosed power supply with active PFC and high efficiency design for industrial systems and medium-power equipment applications.
•
  NSP-1000 Series – 1000W AC/DC enclosed power supply for industrial automation, telecom equipment and system-level DC power applications requiring higher output capability.
•
  NSP-1600 Series – 1600W AC/DC enclosed power supply for high-power industrial systems with compact structure, active PFC and stable DC output performance.
•
  RSP-2000 Series – 2000W AC/DC enclosed power supply for industrial applications requiring high power density and robust DC output performance in compact systems.
•
  RSP-3000 Series – 3000W AC/DC enclosed power supply for high-power industrial and centralized power architectures requiring higher output than 2400–3200W class units.

Need help selecting the right MEAN WELL power supply?
Compare NSP-500, NSP-750, NSP-1000, NSP-1600, NSP-3200, RSP-2000 and RSP-3000 based on rated power, input voltage range, output voltage options, efficiency level, peak power capability, control functions, communication interfaces (CANBus/MODBus where applicable), installation space and system architecture requirements.

Programmable Output, Remote ON/OFF, Remote Sense, DC OK Signal, CANBus and MODBus

The MEAN WELL NSP-3200 Series provides programmable output voltage, programmable output current, remote ON/OFF control, Remote Sense, DC OK signal, 5Vaux and 12Vaux auxiliary power, built-in CANBus communication, optional MODBus protocol by request and parallel operation support for advanced industrial, telecom, PoE infrastructure, automation and high-power DC system integration.

For NSP-3200-24 and NSP-3200-48 models, the series supports output voltage programming from 50–125% of nominal output voltage and output current programming from 0–100% of rated current. This allows engineers to adjust voltage and current behavior according to system requirements in industrial automation machinery, telecom equipment, PoE power systems, network infrastructure, supercapacitor systems and other high-power DC architectures.

The built-in remote ON/OFF control function allows external switching of the power supply, making the NSP-3200 Series suitable for systems requiring power sequencing, standby control, centralized power management and controller-based startup logic. Remote Sense, DC OK signal, auxiliary power outputs, CANBus communication and optional MODBus protocol further support voltage compensation, operational feedback, digital power control and system-level monitoring.

Output Voltage Programming

The NSP-3200 Series supports output voltage programming for all 24V and 48V models. Output voltage can be adjusted from 50–125% of nominal output voltage according to the control method defined in the function manual.

This function is useful for applications requiring adjustable DC output, voltage tuning, system-level power optimization and controlled output behavior. For example, NSP-3200-24 can be used in 24V industrial systems requiring programmable voltage adjustment, while NSP-3200-48 can support 48V DC bus architectures requiring controlled output voltage settings.

For Remote Sense or Local Sense wiring, engineers should follow the function manual and installation guidance to ensure correct voltage feedback and stable output regulation.

Output Current Programming

The NSP-3200 Series supports output current programming from 0–100% of rated current. This allows the constant current level to be adjusted through the control interface, making the series suitable for controlled current limiting, charging-related systems, test equipment, supercapacitor systems and applications where output current must be actively managed.

This function is especially useful when load conditions vary dynamically or when system designers need a defined current ceiling rather than only relying on protection-based current limiting behavior.

When output current programming is active, engineers should refer to the overload behavior and protection mode in the function manual to ensure correct operating configuration.

Remote ON/OFF Control

The remote ON/OFF function is controlled through the CN2 interface using R.C and +5Vaux. According to the NSP-3200 function description, the power supply turns ON when R.C is shorted to +5Vaux, and turns OFF when the connection is open.

This control method allows the NSP-3200 Series to be integrated into external system logic, automation sequencing, standby control and centralized power control architectures.

Remote ON/OFF is suitable for systems where power cycling must be controlled by PLCs, controllers, relays or system-level management circuits.

Remote Sense and DC OK Signal

The NSP-3200 Series provides Remote Sense and DC OK signal functions for system-level integration. Remote Sense compensates voltage drop on load wiring up to 0.5Vdc, ensuring stable voltage regulation at the load side in high-current applications.

The DC OK signal provides real-time output status feedback for monitoring, control and protection systems. It indicates whether output voltage is within normal operating range, supporting system-level diagnostics and fault monitoring.

These functions are essential for high-power DC distribution, industrial automation systems, telecom infrastructure and PoE-related applications requiring stable regulated output and system feedback.

5Vaux, 12Vaux and Intelligent Fan Control

The NSP-3200 Series provides 5Vaux and 12Vaux auxiliary power outputs. The 5Vaux output is rated at 0.2A, and the 12Vaux output is rated at 0.8A. These auxiliary outputs support control circuits, communication circuits and system-level monitoring functions.

The series also includes intelligent fan speed control based on internal temperature, optimizing thermal performance and acoustic noise under different load conditions.

Combined with DC OK signal and communication functions, these features make the NSP-3200 Series suitable for intelligent high-power industrial systems requiring monitoring and control integration.

CANBus Communication and Optional MODBus Protocol

The NSP-3200 Series includes built-in CANBus communication for control, configuration and monitoring functions. CANBus enables integration into industrial automation systems and intelligent power architectures.

MODBus protocol is available by request for applications requiring fieldbus-based communication systems. This allows integration into broader industrial control networks, telecom systems, PoE infrastructure and OEM platforms requiring digital power control.

For detailed communication parameters, engineers should refer to the NSP-3200 function manual.

Parallel Operation and Active Current Sharing

The NSP-3200 Series supports active current sharing and parallel operation up to 12800W or 4-unit systems. This enables scalable power expansion and system redundancy for high-power applications.

For parallel operation, output wiring should use short, low-impedance conductors, and voltage differences between units must be within the specification range defined in the manual.

This function is suitable for high-current DC cabinets, telecom systems, industrial automation platforms, PoE infrastructure and large-scale distributed power systems requiring expandable power capacity.

Need installation and wiring details for the NSP-3200 Series? Continue below to review mechanical dimensions, terminal assignment, control interface details, programmable output control, Remote Sense wiring, DC OK signal, CANBus or optional MODBus communication, parallel operation, safety approvals, EMC information and application guidance.

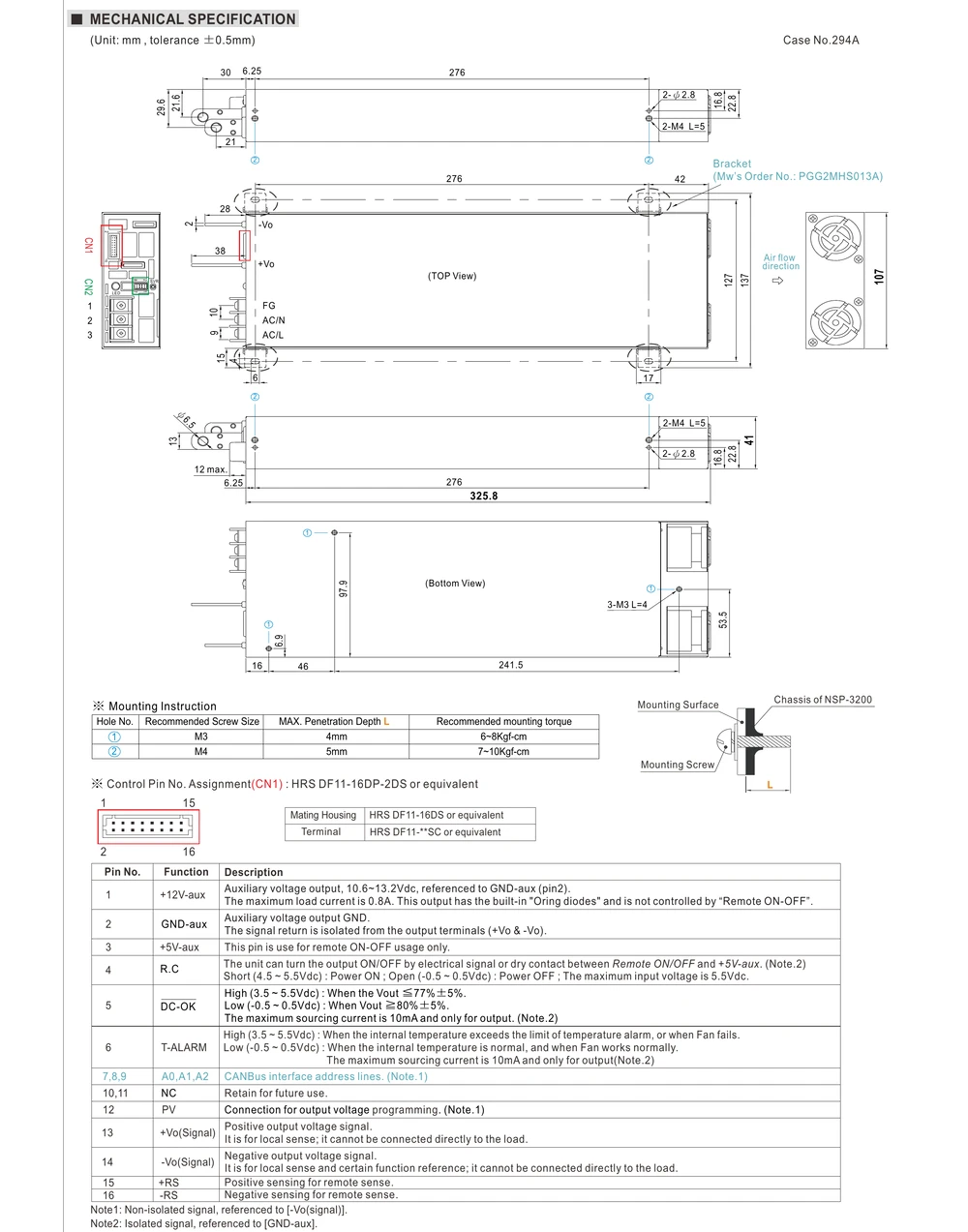

Mechanical Dimensions and Installation

The MEAN WELL NSP-3200 Series features a compact 3200W enclosed high-power design with overall dimensions of 325.8 × 107 × 41 mm. Its slim 1U-class enclosed structure, high power density design, 90–264Vac ultra-wide input range and built-in intelligent fan speed control make it suitable for industrial automation machinery, telecom equipment, PoE power sourcing systems, network infrastructure, medical devices, security systems, supercapacitor systems and high-power DC distribution applications.

Dimensions

The overall mechanical size of the NSP-3200 Series is 325.8 × 107 × 41 mm. This compact 1U format supports a 3200W AC/DC enclosed power supply platform with active PFC, high efficiency operation, programmable output voltage and current control, built-in CANBus communication, optional MODBus protocol by request and parallel operation capability up to 12800W.

Compared with lower-power enclosed PSU platforms, the NSP-3200 Series is designed for applications requiring higher output power, high current density, digital communication control and system-level power architecture integration in space-limited industrial equipment.

Terminal Assignment

The NSP-3200 Series includes AC input terminals, DC output terminals and dedicated control interfaces. The AC input terminal provides AC/L, AC/N and FG connections. The DC output terminal provides +Vo and -Vo power output connections for high-current DC distribution systems.

For system-level integration, CN1 supports output voltage programming, output current programming, Remote Sense (+RS / -RS), local sense configuration and DA / DB differential signals for parallel control. CN2 provides remote ON/OFF control, DC OK signal, 5Vaux auxiliary power, 12Vaux auxiliary power, GND-AUX and communication interface for CANBus or optional MODBus models.

Installation Notes

When integrating the NSP-3200 Series into equipment, control cabinets or high-power DC systems, users should review mounting direction, wiring clearance, grounding, airflow path, AC input terminal assignment, DC output wiring, control interface wiring and temperature derating according to the official datasheet and function manual.

Because the NSP-3200 Series uses built-in intelligent fan speed control based on internal PSU temperature, sufficient ventilation space and correct airflow direction must be maintained to ensure stable long-term operation under high load conditions. For control and communication wiring, signal lines should be routed carefully to reduce noise interference and ensure reliable programming, monitoring and communication performance.

Mounting and Accessory Notes

The NSP-3200 Series supports chassis mounting with specified screw sizes and maximum penetration depth requirements. According to mechanical specification practices for this platform, mounting must ensure proper mechanical strength and thermal safety under high power operation.

The series is supplied with CN1 and CN2 mating connectors for system integration. Mounting brackets and terminal covers are available as optional accessories by request. For applications using Remote Sense, sense lines should be connected directly to the load side and twisted in pairs to minimize noise pickup and maintain stable regulation. If Remote Sense is not used, local sense configuration must follow datasheet wiring instructions.

Parallel Installation Considerations

For systems using multiple NSP-3200 units in parallel, the power supplies should be connected using short, low-impedance and large-cross-section wiring before connection to the load. Output voltage difference among parallel units must be kept within the range specified in the function manual, and system wiring should follow recommended parallel operation guidelines.

This is especially important for high-current DC cabinets, telecom systems, PoE power sourcing equipment, industrial automation platforms and scalable power architectures requiring up to 12800W total output capacity.

Need application and compliance information for the NSP-3200 Series? Continue below to explore recommended applications, safety certifications, EMC compliance and system-level integration guidelines.

Applications

The MEAN WELL NSP-3200 Series is suitable for a wide range of high-power industrial, telecom, network and equipment-level applications that require a compact 3200W AC/DC enclosed power supply with active PFC, 90–264Vac input range, programmable output voltage/current, CANBus communication, optional MODBus protocol and high-reliability DC output performance.

With high efficiency operation, built-in active current sharing, parallel operation (up to 4 units, system dependent), Remote ON/OFF control, Remote Sense, DC OK signal, 12Vaux auxiliary power, intelligent fan speed control and complete protection functions, the NSP-3200 Series is designed for systems where stable high-power operation, digital monitoring, scalable power architecture and long-term reliability are required.

• Industrial automation machinery and control systems requiring stable 3200W-class high-current DC output
• Security systems and high-reliability electronic equipment
• Mechanical and electrical equipment, test platforms and industrial instruments
• Electronic instruments and apparatus requiring programmable DC power control
• Network equipment, telecom devices and centralized DC power distribution systems
• High-power network infrastructure and communication systems
• Building automation systems requiring reliable enclosed AC/DC power
• Medical devices and equipment applications under specified operating conditions
• Supercapacitor systems, charging-related equipment and controlled current applications
• Parallel power systems up to 12800W (4-unit operation under system design conditions)

Need certification and compliance details for your project? Continue below to review safety standards, EMC information, leakage current data, system protection functions and approval specifications for the NSP-3200 Series.

Certifications and Safety

The MEAN WELL NSP-3200 Series is designed for multi-industry applications requiring international safety compliance, wide input compatibility and reliable high-power AC/DC conversion. It is suitable for industrial automation, telecom equipment, network systems, PoE infrastructure, supercapacitor systems, security systems and other high-power DC applications requiring a compact 3200W AC/DC enclosed power supply.

According to the official NSP-3200 datasheet, the series complies with multiple international safety standards across ITE, industrial control, transformer and energy conversion application fields:

• CB: IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC61010-1/-2-201, IEC60601-1 and IEC62477-1
• DEKRA: BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN61010-1/-2-201, BS EN/EN60601-1 and BS EN/EN62477-1
• UL: UL62368-1, UL61010-1/-2-201 and ANSI/AAMI ES60601-1 for North America safety requirements
• CQC: GB4943.1 compliant for China safety regulations
• BSMI: CNS15598-1 certified for Taiwan market compliance
• EAC: TP TC 004 approved for Eurasian market compliance
• SEMI F47: voltage sag immunity capability under specified AC input conditions
• KC / BIS: certification available by request depending on model and order requirements

The NSP-3200 Series supports EMC compliance for emission and immunity requirements, including BS EN/EN55032, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61000-3-2, BS EN/EN61000-3-3 and IEC61000-4 immunity standards. This ensures stable operation in industrial and commercial electromagnetic environments.

For safety-sensitive applications, the NSP-3200 Series provides low leakage current design and reinforced isolation structure compliant with 2 × MOPP requirements under applicable conditions. MOPP suitability applies according to system design, installation conditions and input voltage range defined in the datasheet.

The datasheet also defines safety extra-low voltage behavior for regulated output conditions under IEC/EN 62368-1 and related standards. Overvoltage category and altitude ratings depend on installation environment and system integration design.

Protection functions include short circuit, overload, over voltage and over temperature protection. Combined with programmable output voltage/current control, Remote Sense, DC OK signal, CANBus communication, optional MODBus protocol and intelligent fan speed control, the NSP-3200 Series supports reliable operation in high-power AC/DC systems.

As with all industrial power supplies, final EMC and safety compliance must be verified in the end equipment. System designers should ensure correct grounding, enclosure design, wiring layout, thermal management, insulation distance and regulatory compliance according to the final application.

Need more product details before sending an inquiry? Continue below to review application notes, model selection, output specifications, programmable control functions, CANBus or optional MODBus communication, parallel operation and system integration guidance for the NSP-3200 Series.
