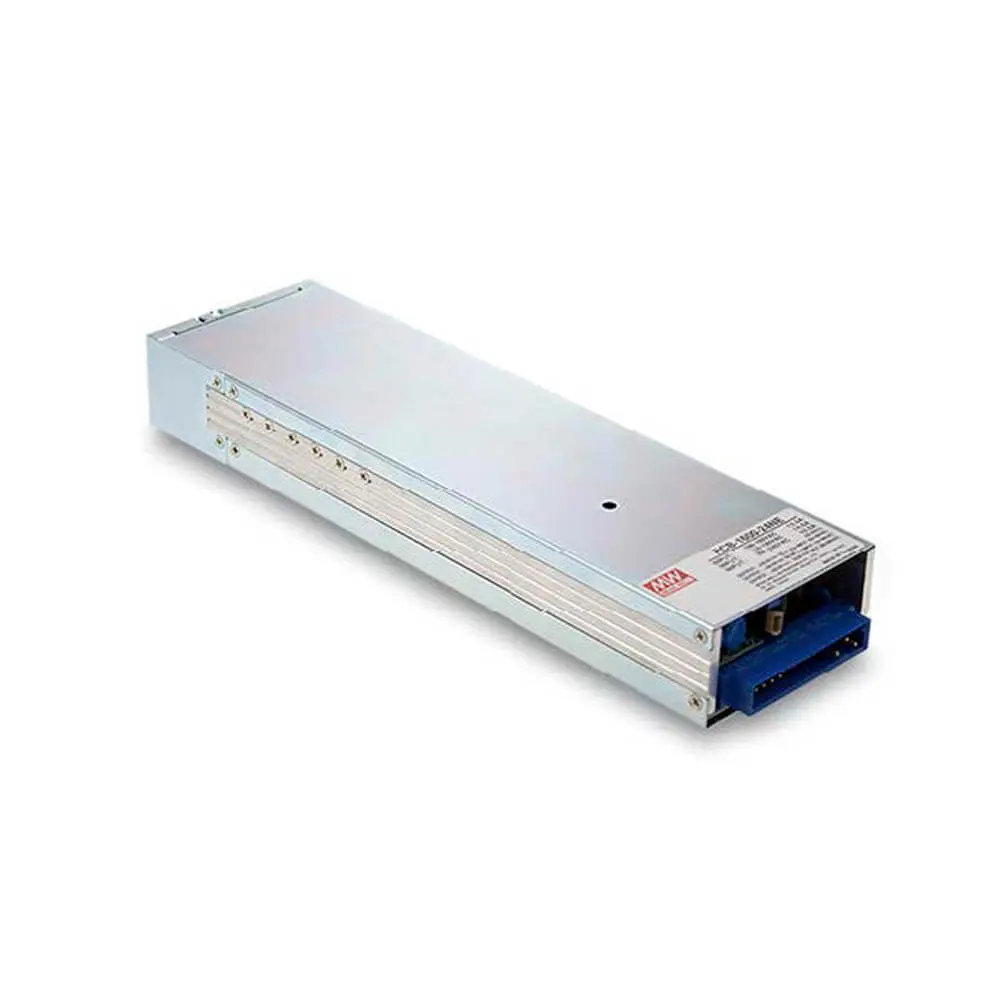

Mean Well 1600W Intelligent Single Output Battery Charger RPB-1600 series: 12/24/48/12CAN/24CAN
Features
- Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- Built-in default 3 stage charging curves and programmable curve
- Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
- Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
- Built-in active PFC function
- Forced air cooling by built-in DC fan
- Output voltage and current programmable
- Built-in OR-ing FET
- Active current sharing up to 4800W(2+1)
- Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
- Optional conformal coating
- 5 years warranty
Mean Well Battery Charger RPB-1600 Series Data Sheet Download
Mean Well 1600W Intelligent Single Output Battery Charger RPB-1600 Series
This datasheet provides complete specifications for all models in the Mean Well RPB-1600 Series, including:
RPB-1600-12, RPB-1600-24, RPB-1600-48, RPB-1600-12CAN, and RPB-1600-24CAN.
Description
The Mean Well RPB-1600 series is a 1.6kW single output AC/DC charger featuring a high power density of up to 25W/inch³. Three embedded charging curves, specifically tailored for lead-acid batteries, come preloaded in every model. With support for PMBus and CANBus communication protocols, users can also upload a custom charging curve to accommodate other battery types such as lithium-ion batteries. Each model is cooled by a thermostatically controlled fan and equipped with multiple protection mechanisms to ensure maximum safety across diverse applications.
RPB-1600-12
The RPB-1600-12 is the 12V model in this series, offering intelligent 3-stage charging for 12V lead-acid and lithium batteries. Its programmable output, high efficiency, and comprehensive protection design provide stable and reliable charging for industrial automation, energy storage systems, and telecom power applications.
RPB-1600-12CAN
This model is the 12V CANBus-enabled model in the RPB-1600 Series, supporting intelligent 3-stage charging for 12V lead-acid and lithium batteries. With fully programmable output, advanced protections, and CANBus communication for remote monitoring and control, it delivers precise and efficient charging for industrial equipment, energy storage solutions, and telecom power systems.
RPB-1600-24
The RPB-1600-24 is the 24V model in this series, providing intelligent 3-stage charging for 24V lead-acid and lithium batteries. Its programmable output settings, high efficiency performance, and full protection functions ensure stable and reliable charging for industrial automation, energy storage equipment, and telecom power applications.
RPB-1600-24CAN
This model is the 24V CANBus-enabled model in the RPB-1600 Series, featuring intelligent 3-stage charging for 24V lead-acid and lithium batteries. With programmable output control, advanced protection features, and CANBus communication for remote monitoring and system integration, it delivers precise, efficient, and dependable charging for industrial systems, energy storage solutions, and telecom applications.
RPB-1600-48
This model is the 48V version of this series, delivering powerful and reliable 3-stage charging for 48V battery applications. It is well-suited for telecom power, backup systems, and renewable energy storage. With its programmable charging curves and multiple protection mechanisms, the RPB-1600-48 ensures efficient performance and long-term reliability.

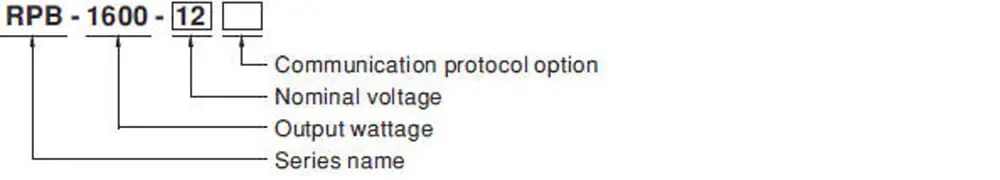

Mean Well Battery Charger RPB-1600 Series Model Encoding
| Type | Communication Protocol | Note |
| Blank | PMBus protocol | In Stock |
| CAN | CANBus protocol | By request |
Specification
| MODEL | RPB-1600-12 | RPB-1600-24 | RPB-1600-48 | |
|
OUTPUT |
BOOST CHARGE VOLTAGE(Vboost)(default) | 14.4V | 28.8V | 57.6V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 13.8V | 27.6V | 55.2V | |
| CONSTANT CURRENT(CC)(default) | 100A | 55A | 27.5A | |
|
VOLTAGE ADJ. RANGE Note 5 |
By built-in potentiometer, SVR | |||
| 11.5 ~ 15V | 23.5 ~ 30V | 47.5 ~ 58.8V | ||
| RECOMMENDED BATTERY
CAPACITY(AMP HOURS) Note.3 |
330 ~ 1000Ah |
180 ~ 550Ah |
90 ~ 270Ah |
|
| LEAKAGE CURRENT FROM
BATTERY (Typ.) Note.8 |
<45mA |
|||
|
INPUT |
VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | 0.97/230VAC at full load | |||
| EFFICIENCY (Typ.) | 91% | 92.5% | 93.5% | |
| AC CURRENT (Typ.) Note.4 | 14A/115VAC 8A/230VAC | 15A/115VAC 8.5A/230VAC | ||
| INRUSH CURRENT (Typ.) | COLD START 35A/230VAC | |||
| LEAKAGE CURRENT | <2mA / 240VAC | |||
|
PROTECTION |
OVER VOLTAGE |
15.75 ~ 18.75V | 31.5 ~ 37.5V | 63 ~ 75V |
| Protection type: Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
|
FUNCTION |
AUXILIARY POWER | 5V @ 0.3A, 12V @ 0.8A | ||
| REMOTE ON-OFF CONTROL | By electrical signal or dry contact Power ON: short Power OFF: open. Please refer to Function Manual | |||
| OUTPUT VOLTAGE PROGRAMMABLE(PV) Note 5 | Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage Please refer to the Function Manual. | |||
| OUTPUT CURRENT PROGRAMMABLE(PC) Note 5 | Adjustment of output current is allowable to 20 ~ 100% of rated current Please refer to the Function Manual. | |||
| TEMPERATURE COMPENSATION | -3mV / ℃ / cell / (12V = 6 cells; 24V = 12 cells; 48V = 24 cells) | |||
| ALARM SIGNAL | Isolated signal output for T-alarm and DC OK | |||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
|
SAFETY & EMC (Note 6) |
SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, EAC TP TC 020 | |||
|
OTHERS |
MTBF | 457.7K hrs min. Telcordia SR-332 (Bellcore); 100.3K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 300*85*41mm (L*W*H) | |||
| PACKING | 2.1Kg; 6pcs/13.6Kg/1.25CUFT | |||
Application
- Large scale DC UPS or emergency
- backup system
- Marine battery charger module
- Electric scooter or vehicle charger station
- Wastewater treatment system
- Electrolysis system
Mean Well Battery Charger RPB-1600 Series Unboxing
What you see in this video is what you get for the model RPB-1600-24.
Mean Well Battery Charger RPB-1600 Series Video Show
The model in this video is RPB-1600-24 from Mean Well battery charger RPB-1600 series.
