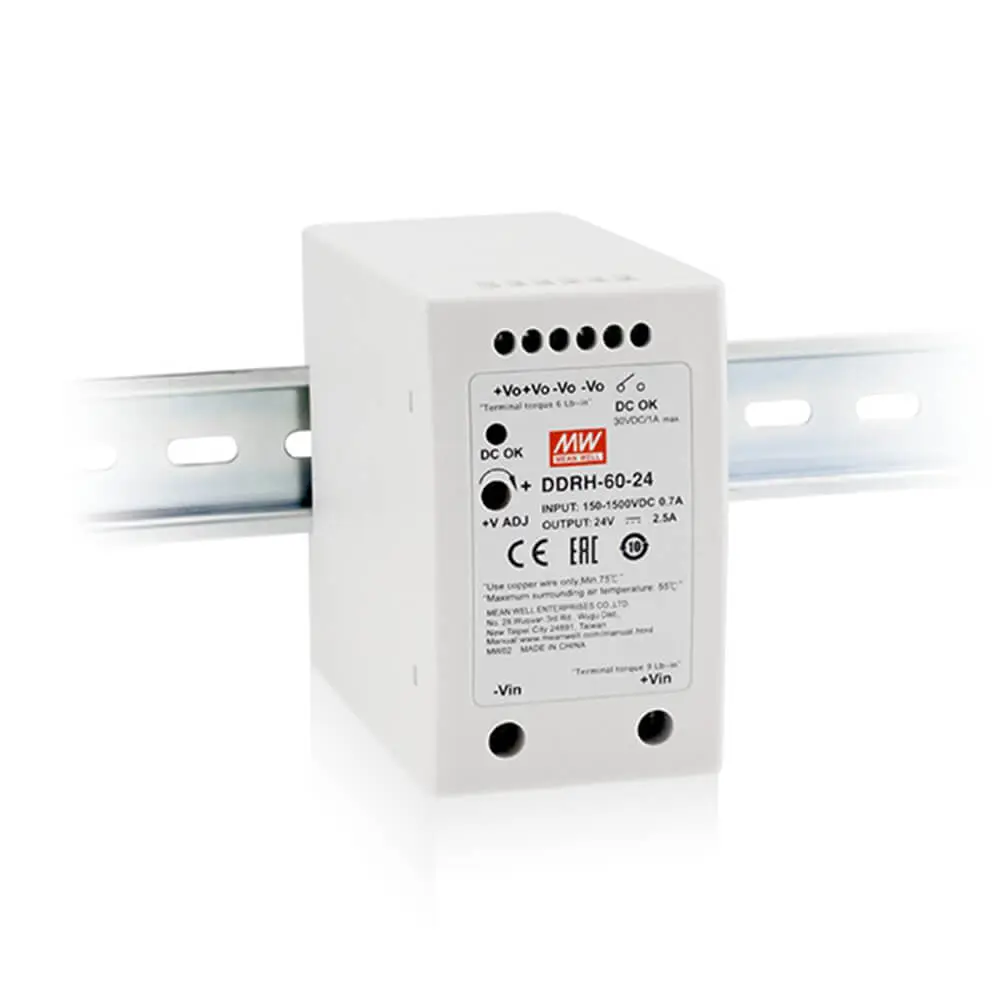

March 20, 2023MW Mean Well Meanwell 60W Ultra Wide Input DIN Rail Type DC-DC Converter DDRH-60 Series
Features
- 150~ 1500Vdc 10:1 ultra – wide input range
- 57mm slim width
- 4KVac I/O high isolation(Reinforced isolation)
- Protections: Short circuit / Overload / Over voltage / Over temperature / DC input under voltage / DC input reverse polarity
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- -30~+80°C ultra-wide operating temperature (＞+55°C derating)
- Over voltage categoryⅡ
- Operating altitude up to 5000 meters
- DC OK relay contact
- DC output voltage adjustable(+20%)
- 3 years warranty
Mean Well DC-DC Converter DDRH-60 Series Data Sheet Download
Description
DDRH-60 series is a 150 ~ 1500Vdc ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Main features are as following: easy to install DIN rail type, narrow width(57mm) in slim design, -30~+80°C wide range operating temperature, 4KVAC high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. DDRH-60 is compliant with BS EN/EN61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application and so forth.

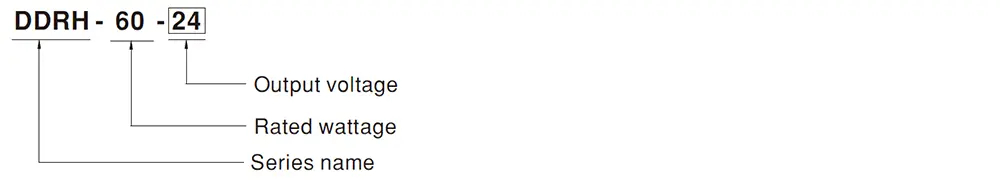

Mean Well DC-DC Converter DDRH-60 Series Model Encoding
Specification
| MODEL | DDRH-60-5 | DDRH-60-12 | DDRH-60-24 | DDRH-60-48 | |||||
|
OUTPUT |
DC VOLTAGE | 5V | 12V | 24V | 48V | ||||
| RATED CURRENT | 10A | 5A | 2.5A | 1.25A | |||||
| CURRENT RANGE | 0 ~ 10A | 0 ~ 5A | 0 ~ 2.5A | 0 ~ 1.25A | |||||
| RATED POWER | 50W | 60W | 60W | 60W | |||||
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |||||
| VOLTAGE ADJ. RANGE | 5 ~ 6V | 12 ~ 15V | 24 ~ 29V | 48 ~ 54V | |||||
| VOLTAGE TOLERANCE Note.3 | ±1.5% | ±1.5% | ±1.0% | ±1.0% | |||||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||
| LOAD REGULATION | ±1.5% | ±0.5% | ±0.5% | ±0.5% | |||||
| EXTERNAL CAPACITANCE LOAD (Max.) | 6000μF | 4000μF | 2500μF | 1000μF | |||||
|
INPUT |
VOLTAGE RANGE Note.4 | 150 ~ 1500Vdc | |||||||
| EFFICIENCY (Typ.) | 200Vdc | 80% | 83% | 86% | 87% | ||||
| 800Vdc | 81% | 85% | 87% | 88% | |||||
| 1500Vdc | 76% | 81% | 84% | 83% | |||||
| INRUSH CURRENT (max.) | COLD START 120A /1500Vdc 80A/800Vdc 30A/150Vdc | ||||||||
|
PROTECTION |
OVERLOAD | 105 ~ 135% rated output power | |||||||
| Protection type: Hiccup up mode when output voltage<55%, recovers automatically after condition is removed;
Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage |
|||||||||
| OVER VOLTAGE | 6.6 ~ 8.4V | 16.5 ~ 21V | 30 ~ 38V | 55 ~ 60V | |||||
| Protection type: Hiccup up mode, recovers automatically after fault condition is removed | |||||||||
| OVER TEMPERATURE | Protection type: Hiccup up mode, recovers automatically after fault condition is removed | ||||||||
| DC INPUT | REVERSE POLARITY | By internal Bridge Diode, no damage, recovers automatically after fault condition removed | |||||||
| UNDER VOLTAGE LOCKOUT | Under voltage protection range:120 ~ 130Vdc, Under voltage release range:130 ~ 146.5Vdc | ||||||||
| FUNCTION | DC OK SIGNAL | Relay contact rating(max.): 30V / 1A resistive | |||||||
|
ENVIRONMENT |
WORKING TEMP. | -30 ~ +80℃ (Refer to “Derating Curve”) | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 55℃) | ||||||||
| VIBRATION | Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | ||||||||
| OPERATING ALTITUDE Note.5 | 5000 meters /OVCⅡ | ||||||||
| OVER VOLTAGE CATEGORY | Ⅱ; According to EN62109-1; altitude up to 5000 meters | ||||||||
|
SAFETY & EMC (Note.7) |
SAFETY STANDARDS | IEC62109-1(LVD), EAC TP TC 004 approved; Design refers to UL1741(By request) | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC O/P-DC OK:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
|
EMC EMISSION |
Parameter | Standard | Test Level / Note | ||||||
| Conducted | BS EN/EN55032(CISPR32) | Class A | |||||||
| Radiated | BS EN/EN55032(CISPR32) | Class A | |||||||
| Voltage Flicker | BS EN/EN61000-3-3 | ——- | |||||||
|
EMC IMMUNITY |
BS EN/EN55035, BS EN/EN61000-6-2 | ||||||||
| Parameter | Standard | Test Level /Note | |||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | |||||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, 10V, criteria A | |||||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV, criteria A | |||||||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Vin+ ~ Vin-, criteria A | |||||||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V, criteria A | |||||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A, criteria A | |||||||
| Voltage Dips and interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods,
＞95% interruptions 250 periods |
|||||||
|
OTHERS |
MTBF | 454.5K hrs min. MIL-HDBK-217F (25℃); 1439.7K hrs min. Telcordia TR/SR-332 (Bellcore) (25℃) | |||||||
| DIMENSION | 57*93.5*105mm (W*H*D) | ||||||||
| PACKING | 0.8Kg; 16pcs/12.8Kg/0.84CUFT | ||||||||
Applications
- Photovoltaic power generation
- High voltage freqency conversion
- Industrial control system
- Semiconductor fabrication equipment
- Electro-mechanical apparatus
- DC bus centralized application
