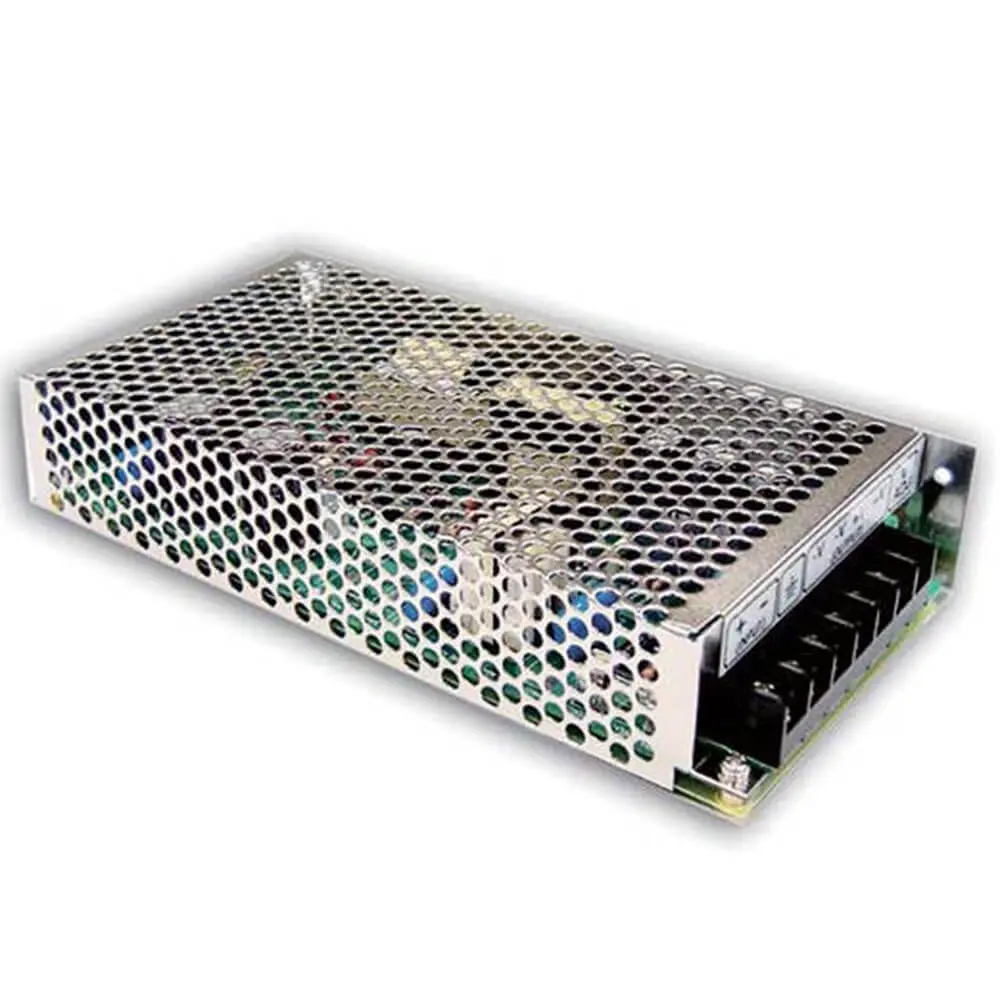

March 21, 2023MW Mean Well Meanwell 100W Single Output DC-DC Converter SD-100 Series
Features
- 2:1 wide input range
- Protections:Short circuit/Over load /voltage
- 1500VAC I/O isolation
- Built-in EMI filter, low ripple noise
- Low cost
- High reliability
- 2 years warranty
Mean Well DC-DC Converter SD-100 Series Data Sheet Download
Specification
| MODEL | SD-100A-5 | SD-100B-5 | SD-100C-5 | SD-100D-5 | SD-100A-12 | SD-100B-12 | SD-100C-12 | SD-100D-12 | SD-100A-24 | SD-100B-24 | SD-100C-24 | SD-100D-24 | |
|
OUTPUT |
DC VOLTAGE | 5V | 12V | 24V | |||||||||
| RATED CURRENT | 18A | 20A | 8.5A | 4.2A | |||||||||
| CURRENT RANGE | 0 ~ 18A | 0 ~ 20A | 0 ~ 8.5A | 0 ~ 4.2A | |||||||||
| RATED POWER | 90W | 100W | 102W | 100.8W | |||||||||
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 120mVp-p | 150mVp-p | ||||||||||
| VOLTAGE ADJ. RANGE | 4.5 ~ 5.5VDC | 11 ~ 16VDC | 23 ~ 30VDC | ||||||||||
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±1.0% | ±1.0% | ||||||||||
| LINE REGULATION | ±0.5% | ±0.3% | ±0.2% | ||||||||||
| LOAD REGULATION | ±0.5% | ±0.3% | ±0.2% | ||||||||||
| SETUP, RISE TIME | 2s, 50ms (only D mode) at full load | ||||||||||||
| HOLD UP TIME (Typ.) | 20ms (only D mode) at full load | ||||||||||||
|
INPUT |
VOLTAGE RANGE | A:9.5 ~ 18VDC B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~ 144VDC or 85 ~ 132VAC | |||||||||||
| EFFICIENCY (Typ.) | 78% | 74% | 75% | 76% | 82% | 75% | 77% | 80% | 84% | 78% | 81% | 83% | |
| DC CURRENT (Typ.) | 9.7A/12V | 4.8A/24V | 2.4A/48V | 1.8A/96V | 10.4A/12V | 4.8A/24V | 2.4A/48V | 1.8A/96V | 10A/12V | 4.8A/24V | 2.4A/48V | 1.8A/96V | |
| INRUSH CURRENT (Typ.) | D:18A/96VDC | ||||||||||||
| LEAKAGE CURRENT | <0.75mA/120VAC(SD-100D) | ||||||||||||
|
PROTECTION |
OVERLOAD |
105 ~ 135% rated output power | |||||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||||||
|
OVER VOLTAGE |
5.75 ~ 6.75V/10% load | 16.8 ~ 20V/10% load | 31.5 ~ 37.5V
5% load |
31.5 ~ 37.5V/10% load | |||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||||||
|
ENVIRONMENT |
WORKING TEMP. | -15 ~ +60℃(SD-100A), -10 ~ +60℃(SD-100B/C/D) (Refer to “Derating Curve”) | |||||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||||||
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS | IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1 | |||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020 | ||||||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020 | ||||||||||||
|
OTHERS |
MTBF | 2600.2K hrs min. Telcordia SR-332 (Bellcore); 399.9K hrs min. MIL-HDBK-217F (25℃) | |||||||||||
| DIMENSION | 199*98*38mm (L*W*H) | ||||||||||||
| PACKING | 0.65Kg; 20pcs/13.8Kg/0.85CUFT | ||||||||||||
