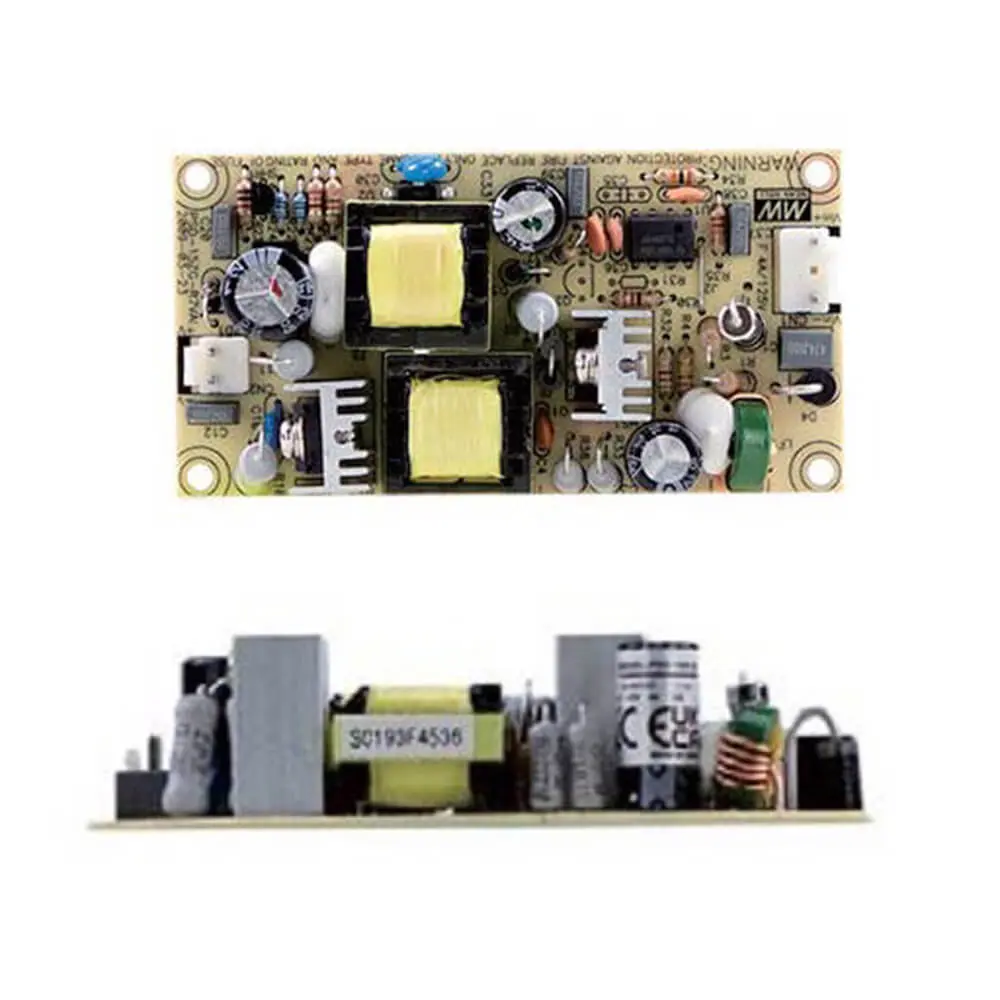

March 21, 2023MW Mean Well Meanwell 15W DC-DC Single Output Switching Power Supply PSD-15 Series
Features
- Protections:Short circuit/Over load /Over voltage/ Polarity
- Cooling by free air convection
- 100% full load burn-in test
- Low cost
- High reliability
- 2 year warranty
Mean Well DC-DC SMPS PSD-15 Series Data Sheet Download
Specification
| MODEL | PSD-15A-05 | PSD-15B-05 | PSD-15C-05 | PSD-15A-12 | PSD-15B-12 | PSD-15C-12 | PSD-15A-24 PSD-15B-24 | PSD-15C-24 | ||
|
OUTPUT |
DC VOLTAGE | 5V | 12V | 24V | ||||||
| RATED CURRENT | 3A | 1.25A | 0.6A | |||||||
| CURRENT RANGE | 0 ~ 3A | 0 ~ 1.25A | 0 ~ 0.6A | |||||||
| RATED POWER | 15W | 15W | 14.4W | |||||||
| RIPPLE & NOISE (max.) Note.2 | 50mVp-p | 100mVp-p | 100mVp-p | |||||||
| VOLTAGE TOLERANCE Note.3 | ±2.0% | ±2.0% | ±2.0% | |||||||
| LINE REGULATION | ±1.0% | ±1.0% | ±0.5% | |||||||
| LOAD REGULATION | ±1.0% | ±1.0% | ±0.5% | |||||||
| SETUP, RISE, HOLD UP TIME | 2.5s, 25ms, —-/12VDC/24VDC/48VDC at full load | |||||||||
|
INPUT |
VOLTAGE RANGE | A: 9.2 ~18VDC (12VDC) B:18 ~ 36VDC (24VDC) C:36~72VDC (48VDC) | ||||||||
| EFFICIENCY(Typ.) | 74% | 78% | 78% | 67% | 78% | 78% | 72% | 78% | 79% | |
| DC CURRENT(Typ.) | 1.9A/12VDC 0.9A/24VDC 0.45A/48VDC | |||||||||
|
PROTECTION |
OVER LOAD |
105% ~150% rated output power | ||||||||
| Protection type: hiccup mode, recovery automatically after fault condition is removed | ||||||||||
|
OVER VOLTAGE |
5.75 ~ 6.75V | 13.8~ 16.2V | 27.6 ~ 32.4V | |||||||
| Protection type: Shut off o/p voltage, clamping by zener diode | ||||||||||
|
ENVIRONMENT |
WORKING TEMP. | -10 ~ +60℃ (Refer to “Derating Curve”) | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes | |||||||||
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS | EAC TP TC 004 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:2.0KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms/500VDC / 25℃/ 70% RH | |||||||||
| EMI CONDUCTION&RADIATION | Compliance to BS EN/EN55032(CISPR32) CLASS B, EAC TP TC 020 | |||||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, BS EN/EN61000-6-1, light industry level,EAC TP TC 020 | |||||||||
|
OTHERS |
MTBF | 7598.3K hrs min. Telcordia SR-332 (Bellcore); 740.4K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 94*49*25mm (L*W*H) | |||||||||
| PACKING | 81g; 120pcs/10.72Kg/0.9CUFT | |||||||||
