April 30, 2022MW Mean Well Meanwell 48~75W Constant Voltage + Constant Current LED Driver ELG-75 series
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- Class 2 power unit
- No load / Standby power consumption <0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Mean Well LED Driver ELG-75 Series Data Sheet Download
Description
ELG-75 series is a 75W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100～305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

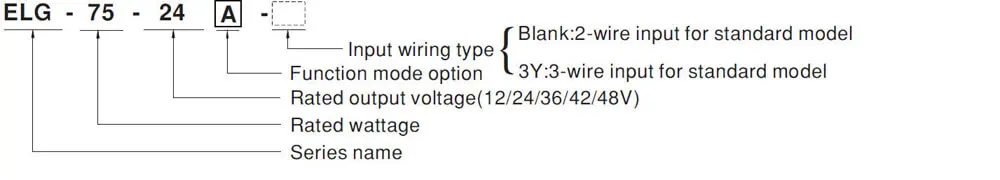

Mean Well LED Driver ELG-75 Series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed. | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| DA | IP67 | DALI control technology. | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | In Stock |
Specification
| MODEL | ELG-75-12 | ELG-75-24 | ELG-75-36 | ELG-75-42 | ELG-75-48 | ||
|
OUTPUT |
DC VOLTAGE | 12V | 24V | 36V | 42V | 48V | |
| CONSTANT CURRENT REGION Note.2 | 6 ~ 12V | 12 ~ 24V | 18 ~ 36V | 21 ~ 42V | 24 ~ 48V | ||
| RATED CURRENT | 5A | 3.15A | 2.1A | 1.8A | 1.6A | ||
|
RATED POWER |
Note.5 |
200VAC ~ 305VAC | |||||
| 60W | 75.6W | 75.6W | 75.6W | 76.8W | |||
| 100VAC ~ 180VAC | |||||||
| 48W | 60W | 60W | 60W | 60W | |||
| RIPPLE & NOISE (max.) Note.3 | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | ||
|
VOLTAGE ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||
| 10.8 ~ 13.2V | 21.6 ~ 26.4V | 32.4 ~ 39.6V | 37.8 ~ 46.2V | 43.2 ~ 52.8V | |||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||
| 2.5 ~ 5A | 1.57 ~ 3.15A | 1.05 ~ 2.1A | 0.9 ~ 1.8A | 0.8 ~ 1.6A | |||
| VOLTAGE TOLERANCE Note.4 | ±3.0% | ±3.0% | ±2.5% | ±2.5% | ±2.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±2.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ||
| SETUP, RISE TIME Note.6 | 500ms, 100ms/115VAC, 230VAC | ||||||
| HOLD UP TIME (Typ.) | 10ms/ 230VAC 10ms/ 115VAC(at full load) | ||||||
|
INPUT |
VOLTAGE RANGE |
Note.5 |
100 ~ 305VAC 142 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
|
POWER FACTOR |
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
||||||
| EFFICIENCY (Typ.) | 86% | 88% | 89% | 90% | 90% | ||
| AC CURRENT | 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC |
||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type | ||||||
|
PROTECTION |
OVER CURRENT |
95 ~ 108% | |||||
| Constant current limiting, recovers automatically after fault condition is removed | |||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||||
|
OVER VOLTAGE |
14 ~ 18V | 28 ~ 34V | 41 ~ 48V | 47 ~ 54V | 54 ~ 62V | ||
| Shut down output voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | ||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750(type”HL”), CSA C22.2 No. 250.13-12; IEC/BS EN/EN/AS/NZS 61347-1, IEC/BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 12A/12DA/12B/24A/24B/24DA/36A/36B/42A/42B/48A/48B only); IP65 or IP67; GB19510.1, GB19510.14; KC61347-1,KC61347-2-13 approved | |||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547 | ||||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV);EAC TP TC 020; KC KN15,KN61547 | ||||||
|
OTHERS |
MTBF | 1172K hrs min. Telcordia SR-332 (Bellcore) 331Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 180*63*35.5mm (L*W*H) | ||||||
| PACKING | 0.8Kg;16pcs/13.4Kg/0.67CUFT | ||||||
Application
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified)
