May 21, 2022200W Constant Current Mode LED Driver HLG-185H-C series
Features
- Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Data Sheet Download
Description
HLG-185H-C series is a 200W AC/DC LED power supply featuring the constant current mode and high voltage output. HLG-185H-C operates from 90~305VAC and offers models with different rated current ranging between 500mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

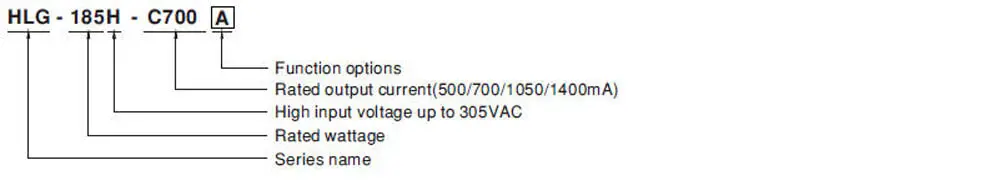

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) |
In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending). | By request |
Specification
| MODEL | HLG-185H-C500 | HLG-185H-C700 | HLG-185H-C1050 | HLG-185H-C1400 | ||||
|
OUTPUT |
RATED CURRENT | 500mA | 700mA | 1050mA | 1400mA | |||
| RATED POWER | 200W | 200.2W | 199.5W | 200.2W | ||||
| CONSTANT CURRENT REGION Note.2 | 200V ~ 400V | 143V ~ 286V | 95V ~ 190V | 71V ~ 143V | ||||
|
CURRENT ADJ. RANGE |
Can be adjusted by internal potentiometer (A/AB type only) | |||||||
| 250 ~ 500mA | 350 ~ 700mA | 525 ~ 1050mA | 700 ~ 1400mA | |||||
| CURRENT RIPPLE | 5.0% max. @rated current | |||||||
| CURRENT TOLERANCE | ±5% | |||||||
| SET UP TIME | Note.4 | 1000ms/115VAC 500ms/230VAC | ||||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
|||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR (Typ.) | PF≧0.98/115VAC or PF≧0.96/230VAC or PF≧0.93/277VAC @full load (Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) | |||||||
| TOTAL HARMONIC DISTORTION | THD< 20%@≧50% load/115VAC, or 230VAC, or @≧75% load/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section) | |||||||
| EFFICIENCY (Typ.) | 94% | 94% | 94% | 94% | ||||
| AC CURRENT (Typ.) | 2A / 115VAC 1A / 230VAC 0.85A / 277VAC | |||||||
| INRUSH CURRENT(Typ.) | COLD START 55A(twidth=900μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC |
|||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||||
|
OVER VOLTAGE |
450 ~ 470V | 320 ~ 340V | 210 ~ 225V | 160 ~ 170V | ||||
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃(Refer to “Derating Curve”) | ||||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||||
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes; | |||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB19510.1,GB19510.14;IP65 or IP67, J61347-1, J61347-2-13(for A type only), EAC TP TC 004 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧50% load) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||||||
|
OTHERS |
MTBF | 651.1K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 228*68*38.8mm (L*W*H) | |||||||
| PACKING | 1.15Kg; 12pcs/14.8Kg/0.8CUFT | |||||||
Application
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED bay lighting
