May 22, 2022320W Constant Current Mode LED Driver HVGC-320 series
Features
- Wide input range 180 ~ 528VAC
- Constant Current mode output
- Metal housing with Class Ⅰ design
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Data Sheet Download
Description
HVGC-320 series is a 320W LED AC/DC LED drive featuring the constant current mode and high voltage output. HVGC-320 operates from 180~528VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-320 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

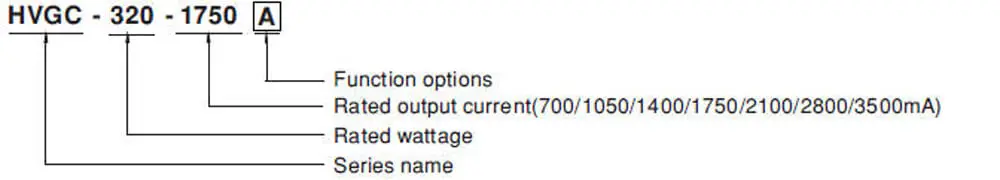

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | By request |
Specification
| MODEL | HVGC-320-700 | HVGC-320-1050 | HVGC-320-1400 | HVGC-320-1750 | HVGC-320-2100 | HVGC-320-2800 | HVGC-320-3500 | ||
|
OUTPUT |
RATED CURRENT | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | 2800mA | 3500mA | |
| RATED POWER | 300W | 320W | 320W | 320W | 320W | 320W | 320W | ||
| CONSTANT CURRENT REGION Note.2 | 214 ~ 428V | 152.4 ~ 304.8V | 114.3 ~ 228.6V | 91.4~182.8V | 76.2 ~ 152.4V | 57 ~ 114.3V | 45.7 ~ 91.4V | ||
| OPEN CIRCUIT VOLTAGE (max.) | 442V | 311V | 234V | 187V | 156V | 118V | 94V | ||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||||
| 350~700mA | 525~1050mA | 700~1400mA | 875~1750mA | 1050~2100mA | 1400~2800mA | 1750~3500mA | |||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||||||
| CURRENT TOLERANCE | ±5% | ||||||||
| SET UP TIME | Note.4 | 500ms/230VAC, 347VAC, 480VAC | |||||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
180 ~ 528VAC 254VDC ~ 747VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
|
POWER FACTOR (Typ.) |
PF≧0.98/230VAC, PF≧0.97/277VAC, PF≧0.95/347VAC, PF≧0.93/480VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20%(@ load≧50%/230VAC, 277VAC, 347VAC, @ load≧60%/480VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
||||||||
| EFFICIENCY (Typ.) | 93.5% | 93.5% | 93.5% | 93.5% | 93.5% | 93.5% | 93% | ||
| AC CURRENT (Typ.) | 1.1A / 347VAC | 0.8A / 480VAC | |||||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=920μs measured at 50% Ipeak) at 480VAC; Per NEMA 410 | ||||||||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER |
2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC |
||||||||
| LEAKAGE CURRENT | <0.75mA / 480VAC | ||||||||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||
|
OVER VOLTAGE |
445 ~ 455V | 320 ~ 351V | 240 ~ 263V | 192 ~ 210V | 160 ~ 175V | 120 ~ 131V | 96 ~ 105V | ||
| Shut down o/p voltage with re-power on to recovery | |||||||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | ||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +90℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||||
| MAX. CASE TEMP. | Tcase=+90℃ | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.11 | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent,
EAC TP TC 004, IP65 or IP67 approved |
|||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(@load≧50%), BS EN/EN61000-3-3, EAC TP TC 020 | ||||||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), criteria A, EAC TP TC 020 | ||||||||
|
OTHERS |
MTBF | 141.2K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 262*90*43.8mm (L*W*H) | ||||||||
| PACKING | 2Kg; 8pcs/17Kg/0.92CUFT | ||||||||
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified)
