The MEAN WELL DDR-60 Series is a 60W DIN rail DC-DC converter designed for industrial control systems, factory automation equipment, communication systems, wireless networks and distributed DC power applications requiring reliable isolated DC voltage conversion.

The DDR-60 Series provides two wide input voltage options according to model type: 9–36Vdc input for DDR-60G models and 18–75Vdc input for DDR-60L models. Available output voltage options include 5Vdc, 12Vdc, 15Vdc and 24Vdc, supporting applications such as 24V industrial control circuits, 48V battery systems, DC voltage conversion and compact automation equipment.

Featuring a compact 52.5mm width design, the DDR-60 Series can be installed on standard TS-35/7.5 or TS-35/15 DIN rails, making it suitable for space-limited control cabinets. The converter adopts fanless cooling by free air convection and supports a wide operating temperature range from -40°C to +85°C under proper derating conditions.

The series provides 4KVdc I/O reinforced isolation, adjustable DC output voltage within ±10%, and stable conversion performance without minimum load requirements. These features make the DDR-60 a suitable isolated DIN rail DC-DC converter for industrial environments where electrical isolation, reliability and long-term operation are required.

Built-in protection functions include short circuit protection, overload protection, over voltage protection, input reverse polarity protection and input under-voltage lockout. The DDR-60 Series also complies with industrial safety requirements including IEC 62368-1, UL 62368-1 and AS/NZS 62368-1.

With high efficiency up to 92% depending on model, the DDR-60 Series helps improve system reliability and thermal performance in industrial control applications. Typical applications include DC buck/boost regulation, voltage drop compensation along cables, system insulation improvement, factory automation equipment, semiconductor manufacturing equipment and telecom-related DC power systems.

The DDR-60 Series includes multiple models for different DC voltage requirements, including DDR-60G-5, DDR-60G-12, DDR-60G-15, DDR-60G-24 for 9–36Vdc input systems and DDR-60L-5, DDR-60L-12, DDR-60L-15, DDR-60L-24 for 18–75Vdc input applications.

Commonly selected models include DDR-60G-24 24V DIN rail DC-DC converter, DDR-60L-24 isolated DC-DC converter, DDR-60L-48V input DC power converter, and 60W DIN rail DC-DC converter for industrial automation systems.

Available models:

DDR-60G-5, DDR-60G-12, DDR-60G-15, DDR-60G-24,

DDR-60L-5, DDR-60L-12, DDR-60L-15, DDR-60L-24.

Key Highlights of DDR-60 Series

MEAN WELL DDR-60 Series 60W DIN rail DC-DC converter designed for industrial control systems, factory automation equipment, communication systems and distributed DC power applications requiring reliable isolated voltage conversion
Wide DC input options with DDR-60G models supporting 9–36Vdc input and DDR-60L models supporting 18–75Vdc input for different DC power system requirements
Multiple output voltage options including 5Vdc, 12Vdc, 15Vdc and 24Vdc, suitable for industrial control circuits, electronic equipment, battery systems and compact DC power applications
Compact 52.5mm width design with fanless cooling by free air convection and DIN rail installation support for TS-35/7.5 or TS-35/15 rails in space-limited control cabinets
4KVdc I/O reinforced isolation, adjustable DC output voltage (±10%), and built-in protections including short circuit, overload, over voltage, input reverse polarity and input under-voltage protection
Wide operating temperature range from -40°C to +85°C with proper derating consideration, providing reliable performance in demanding industrial environments
Complete model range including DDR-60G-5, DDR-60G-12, DDR-60G-15, DDR-60G-24, DDR-60L-5, DDR-60L-12, DDR-60L-15 and DDR-60L-24 for various DC input and output voltage configurations

Request a Quote

Download Datasheet

Overview of MEAN WELL DDR-60 Series

The MEAN WELL DDR-60 Series is a 60W DIN rail type DC-DC converter designed for industrial control systems, factory automation equipment, semiconductor manufacturing equipment, communication systems, wireless networks and distributed DC power applications requiring stable and isolated DC voltage conversion. With compact DIN rail mounting, reinforced isolation and fanless convection cooling, the series provides a reliable solution for space-limited industrial control cabinets.

The DDR-60 Series offers two wide input voltage platforms according to model type: DDR-60G models with 9–36Vdc input and DDR-60L models with 18–75Vdc input. Output voltage options include 5Vdc, 12Vdc, 15Vdc and 24Vdc, supporting various DC power requirements such as industrial control circuits, electronic systems, battery-powered equipment and distributed DC voltage conversion applications.

As part of MEAN WELL’s industrial DIN rail DC-DC converter family, the DDR-60 Series is suitable for applications including factory automation, industrial machinery, semiconductor fabrication equipment, electro-mechanical systems, wireless communication networks and telecom/datacom infrastructure. It is commonly selected for applications such as DDR-60G-24 24V DIN rail DC-DC converter, DDR-60L-24 isolated DC-DC converter, 18–75V input DC-DC power conversion and 60W industrial DIN rail power conversion.

The series features a compact 52.5mm width design, free air convection cooling and a wide operating temperature range from -40°C to +85°C with proper derating consideration. The DDR-60 Series supports adjustable output voltage within ±10%, no minimum load requirement and efficiency up to 92% depending on model, helping improve system reliability and thermal performance.

For demanding industrial environments, the DDR-60 Series provides 4KVdc I/O reinforced isolation and complies with safety standards including IEC 62368-1, UL 62368-1 and AS/NZS 62368-1. Built-in protection functions include short circuit protection, overload protection, over voltage protection, input reverse polarity protection and input under-voltage lockout.

The DDR-60 Series supports installation on standard DIN rail TS-35/7.5 or TS-35/15 and is suitable for compact control cabinets where reliable DC voltage conversion and electrical isolation are required. Typical system applications include DC buck/boost regulation, increasing system insulation level and voltage drop compensation along long cable runs.

Available models include:
DDR-60G-5, DDR-60G-12, DDR-60G-15, DDR-60G-24 for 9–36Vdc input systems, and
DDR-60L-5, DDR-60L-12, DDR-60L-15, DDR-60L-24 for 18–75Vdc input applications.

Features of MEAN WELL DDR-60 Series

60W DIN rail DC-DC converter platform designed for industrial control systems, factory automation equipment, communication systems and distributed DC power applications
Two wide input voltage versions available: DDR-60G with 9–36Vdc input and DDR-60L with 18–75Vdc input for flexible DC system integration
Multiple output voltage options including 5Vdc, 12Vdc, 15Vdc and 24Vdc for industrial electronics, control circuits and DC power conversion applications
Compact 52.5mm width DIN rail design suitable for space-limited industrial control cabinets
High efficiency up to 92% with fanless cooling by free air convection for reliable long-term operation
No minimum load requirement and adjustable DC output voltage range within ±10% for flexible system voltage matching
Complete model range including DDR-60G-5, DDR-60G-12, DDR-60G-15, DDR-60G-24, DDR-60L-5, DDR-60L-12, DDR-60L-15 and DDR-60L-24
4KVdc I/O reinforced isolation for improved electrical separation and reliable industrial DC power system design
Built-in protections including short circuit, overload, over voltage, input reverse polarity and input under-voltage lockout protection
Wide operating temperature range from -40℃ to +85℃ with proper derating consideration for demanding industrial environments
Supports standard DIN rail installation on TS-35/7.5 or TS-35/15 rails for industrial automation and control cabinets
Safety certifications including IEC 62368-1, UL 62368-1 and AS/NZS 62368-1 for industrial equipment applications
Suitable for DC buck/boost regulation, increasing system insulation level and voltage drop compensation along cable runs
Applications include industrial control systems, semiconductor fabrication equipment, factory automation, electro-mechanical systems, wireless networks and telecom/datacom systems
3-year manufacturer warranty for long-term industrial deployment support

Need help selecting the right model? Compare DDR-60G vs DDR-60L based on input voltage range, output voltage requirements and industrial DC power application conditions.

DDR-60 Series Technical Specifications

The table below compares the main electrical specifications of the MEAN WELL DDR-60 Series, including input voltage range, output voltage, rated current, rated power, ripple and noise, voltage adjustment range and typical efficiency across DDR-60G and DDR-60L models with 5V, 12V, 15V and 24V output options.

It helps engineers quickly select the suitable 60W DIN rail DC-DC converter according to DC input voltage requirements, output voltage configuration and industrial power system design conditions.

Model	Input Type	Output Voltage	Rated Current	Current Range	Rated Power	Ripple & Noise Max.	Voltage Adj. Range	Efficiency Typ.
DDR-60G-5	9–36Vdc	5V	10.8A	0–10.8A	54W	60mVp-p	4.5–5.5V	87.5%
DDR-60G-12	9–36Vdc	12V	5A	0–5A	60W	75mVp-p	9–13.2V	91%
DDR-60G-15	9–36Vdc	15V	4A	0–4A	60W	75mVp-p	13.5–16.5V	91%
DDR-60G-24	9–36Vdc	24V	2.5A	0–2.5A	60W	100mVp-p	21.6–28V	91%
DDR-60L-5	18–75Vdc	5V	12A	0–12A	60W	60mVp-p	4.5–5.5V	87.5%
DDR-60L-12	18–75Vdc	12V	5A	0–5A	60W	75mVp-p	9–13.2V	91%
DDR-60L-15	18–75Vdc	15V	4A	0–4A	60W	75mVp-p	13.5–16.5V	92%
DDR-60L-24	18–75Vdc	24V	2.5A	0–2.5A	60W	100mVp-p	21.6–28V	92%

Input voltage options: DDR-60 Series provides two DC input versions: DDR-60G with 9–36Vdc input and DDR-60L with 18–75Vdc input, supporting different industrial DC power architectures.

Output configuration: The series provides 5V, 12V, 15V and 24V DC output models. DDR-60G-5 is rated at 54W, while other models provide up to 60W rated power depending on output voltage configuration.

Performance characteristics: DDR-60 Series features adjustable output voltage within ±10%, no minimum load requirement and efficiency up to 92% for reliable industrial DC voltage conversion.

Protection features: Built-in protection includes short circuit, overload, over voltage, input reverse polarity and input under-voltage lockout protection. Reverse polarity protection uses internal MOSFET design and automatically recovers after fault removal.

Need more technical details? Continue below for installation dimensions, wiring diagrams, derating curves, protection characteristics and application guidelines for DDR-60G and DDR-60L series DC-DC converters.

Model Selection Guide for DDR-60 Series

The MEAN WELL DDR-60 Series provides a flexible range of 60W DIN rail DC-DC converter models designed for industrial control systems, factory automation equipment, communication systems, semiconductor manufacturing equipment and distributed DC power applications. Engineers and system integrators can select the suitable model according to DC input voltage range, output voltage requirement, load current demand, isolation requirements, cabinet space limitations and operating environment.

The DDR-60 Series includes two input voltage platforms: DDR-60G models with 9–36Vdc input and DDR-60L models with 18–75Vdc input. All models share the same compact DIN rail structure, 52.5mm width design, fanless convection cooling, 4KVdc I/O reinforced isolation, adjustable output voltage and complete protection functions, while providing different output voltage configurations including 5V, 12V, 15V and 24V DC.

9–36V DC Input Systems (DDR-60G Series)

The DDR-60G Series is designed for low-voltage DC input systems requiring isolated DC voltage conversion, including 12V battery systems, 24V industrial control circuits, automation equipment and distributed DC power applications.

Common search terms include DDR-60G-5 DC-DC converter, DDR-60G-12 DIN rail DC-DC converter, DDR-60G-24 24V DIN rail DC-DC converter, 9–36V input DC-DC converter and 60W industrial DIN rail power converter.

This series includes DDR-60G-5, DDR-60G-12, DDR-60G-15 and DDR-60G-24 models. DDR-60G models are suitable when the system input voltage is within 9–36Vdc and the required output voltage is 5V, 12V, 15V or 24V for control electronics, sensors, communication equipment and industrial automation devices.

18–75V DC Input Systems (DDR-60L Series)

The DDR-60L Series is designed for wider DC input applications requiring stable isolated conversion from 18–75Vdc sources, including 24V industrial systems, 48V DC equipment, telecom-related power systems and distributed DC architectures.

Common search terms include DDR-60L-12 DC-DC converter, DDR-60L-24 isolated DC-DC converter, DDR-60L-24 DIN rail DC-DC converter, 18–75V input DC-DC converter and 48V input DIN rail power converter.

This series includes DDR-60L-5, DDR-60L-12, DDR-60L-15 and DDR-60L-24 models, supporting different output voltage requirements for industrial control systems, communication equipment, automation systems and DC power distribution applications.

Output Voltage Selection

The DDR-60 Series provides four output voltage options:

5Vdc output: Suitable for low-voltage electronic circuits, embedded systems and control modules.
12Vdc output: Suitable for industrial electronics, sensors, communication devices and control equipment.
15Vdc output: Suitable for specialized electronic systems requiring 15V DC power supply.
24Vdc output: Suitable for industrial control circuits, automation equipment and distributed DC power systems.

System Design & Application Matching

The DDR-60 Series supports various DC system architectures including low-voltage battery systems, 24V industrial control systems, 48V communication systems and distributed DC power applications. Engineers typically select models based on input voltage range, required output voltage, rated current, operating temperature, isolation requirements, DIN rail cabinet space and application environment.

Need help selecting the correct DDR-60 model? Match your input voltage system (DDR-60G or DDR-60L), required output voltage (5V/12V/15V/24V), load requirements and installation environment to select the most suitable 60W DIN rail DC-DC converter for your project.

Related MEAN WELL DIN Rail DC-DC Converter Series

For system design comparison and DC power architecture planning, the following MEAN WELL DIN rail DC-DC converter series are commonly used across different power levels for industrial control systems, factory automation equipment, communication systems, control cabinets and distributed DC power applications:

DDR-15 Series – Ultra-compact low-power DIN rail DC-DC converter for basic control circuits, sensors, signal devices and embedded electronic systems requiring stable DC voltage conversion.
DDR-30 Series – Compact low-power DIN rail DC-DC converter for industrial control systems, automation equipment and small DC loads requiring reliable isolated power conversion.
DDR-60 Series – Current series: 60W DIN rail DC-DC converter with 9–36Vdc and 18–75Vdc input options, 5V / 12V / 15V / 24V output models, 4KVdc I/O reinforced isolation and compact 52.5mm width design.
DDR-120 Series – 120W DIN rail DC-DC converter for higher power industrial control systems, automation equipment and distributed DC power applications requiring increased output capacity.
DDR-240 Series – 240W DIN rail DC-DC converter for industrial control cabinets, automation systems, communication equipment and medium-power DC conversion applications.
DDR-480 Series – 480W DIN rail DC-DC converter platform for high-power industrial automation systems, distributed DC power architectures and demanding DC conversion applications.

Need help selecting the right MEAN WELL DDR series converter?
Compare DDR-15, DDR-30, DDR-60, DDR-120, DDR-240 and DDR-480 based on input voltage range, output voltage requirements, rated power, installation space, isolation requirements, efficiency and application environment.

Adjustable Output Voltage, Input Protection and Wide Input Range Operation

The MEAN WELL DDR-60 Series provides practical system-level functions for industrial control systems, factory automation equipment, communication systems, semiconductor manufacturing equipment and distributed DC power applications requiring compact isolated DIN rail DC-DC conversion.

The DDR-60 Series includes two input voltage versions: DDR-60G models with 9–36Vdc input and DDR-60L models with 18–75Vdc input. With regulated output options of 5V, 12V, 15V and 24V, the series supports flexible DC voltage conversion for industrial control circuits, electronic equipment, battery-powered systems and distributed DC power architectures.

The DDR-60 Series provides adjustable output voltage, input under-voltage lockout, MOSFET-based input reverse polarity protection and reinforced 4KVdc I/O isolation. These functions help improve system reliability when the converter is installed in industrial control cabinets, automation equipment and compact DC power systems.

Designed as a compact 60W isolated DIN rail DC-DC converter, the DDR-60 Series focuses on reliable DC voltage conversion, electrical isolation improvement, cable voltage drop compensation and stable operation where DIN rail installation space is limited.

Adjustable Output Voltage

The DDR-60 Series provides regulated DC output voltage with adjustment capability within ±10%. This allows engineers to fine-tune output voltage according to system requirements, cable voltage drop compensation needs, connected load characteristics and control cabinet design conditions.

Output adjustment ranges depend on the selected model:

5V output models: adjustable from 4.5V to 5.5V
12V output models: adjustable from 9V to 13.2V
15V output models: adjustable from 13.5V to 16.5V
24V output models: adjustable from 21.6V to 28V

This flexibility allows DDR-60G-24 and DDR-60L-24 models, for example, to support different 24V industrial DC power system requirements.

Wide Input Voltage Range and Under-Voltage Lockout

The DDR-60 Series supports two wide DC input ranges:

DDR-60G Series: 9–36Vdc input
DDR-60L Series: 18–75Vdc input

The built-in input under-voltage lockout function protects the converter and connected equipment when the input voltage falls below the required operating threshold.

For DDR-60G models, the converter turns on when input voltage reaches approximately 9Vdc and shuts down below approximately 8.5Vdc. For DDR-60L models, the converter turns on at approximately 18Vdc and shuts down below approximately 17Vdc.

This function helps maintain stable operation in battery-powered systems, mobile DC equipment and industrial applications where input voltage fluctuations may occur during startup or load changes.

Input Reverse Polarity Protection

The DDR-60 Series integrates an internal MOSFET-based input reverse polarity protection design. If DC input polarity is connected incorrectly, the protection circuit prevents normal operation and helps protect the converter from damage.

After removing the fault condition and correcting the input wiring, the unit automatically recovers. This feature is valuable for field installation, control cabinet wiring and maintenance environments where DC polarity errors may occur.

4KVdc I/O Reinforced Isolation

The DDR-60 Series provides 4KVdc input-to-output reinforced isolation, helping improve electrical separation between the DC input source and output circuits.

This isolation capability makes the series suitable for industrial applications requiring improved system safety, noise reduction and reliable DC power conversion between different voltage domains.

Typical applications include industrial automation equipment, semiconductor manufacturing equipment, communication systems and distributed DC power architectures.

No Minimum Load Requirement and Reliable Industrial Operation

Unlike some DC-DC converters that require a minimum output load to maintain regulation, the DDR-60 Series supports operation without minimum load requirements.

Combined with fanless cooling by free air convection, high efficiency up to 92% and a wide operating temperature range from -40°C to +85°C, the series provides reliable performance for long-term industrial deployment.

Need installation and system integration details for the DDR-60 Series? Continue below for mechanical specifications, terminal assignments, wiring diagrams, protection functions, derating curves, efficiency curves and application guidance for DDR-60G and DDR-60L configurations.

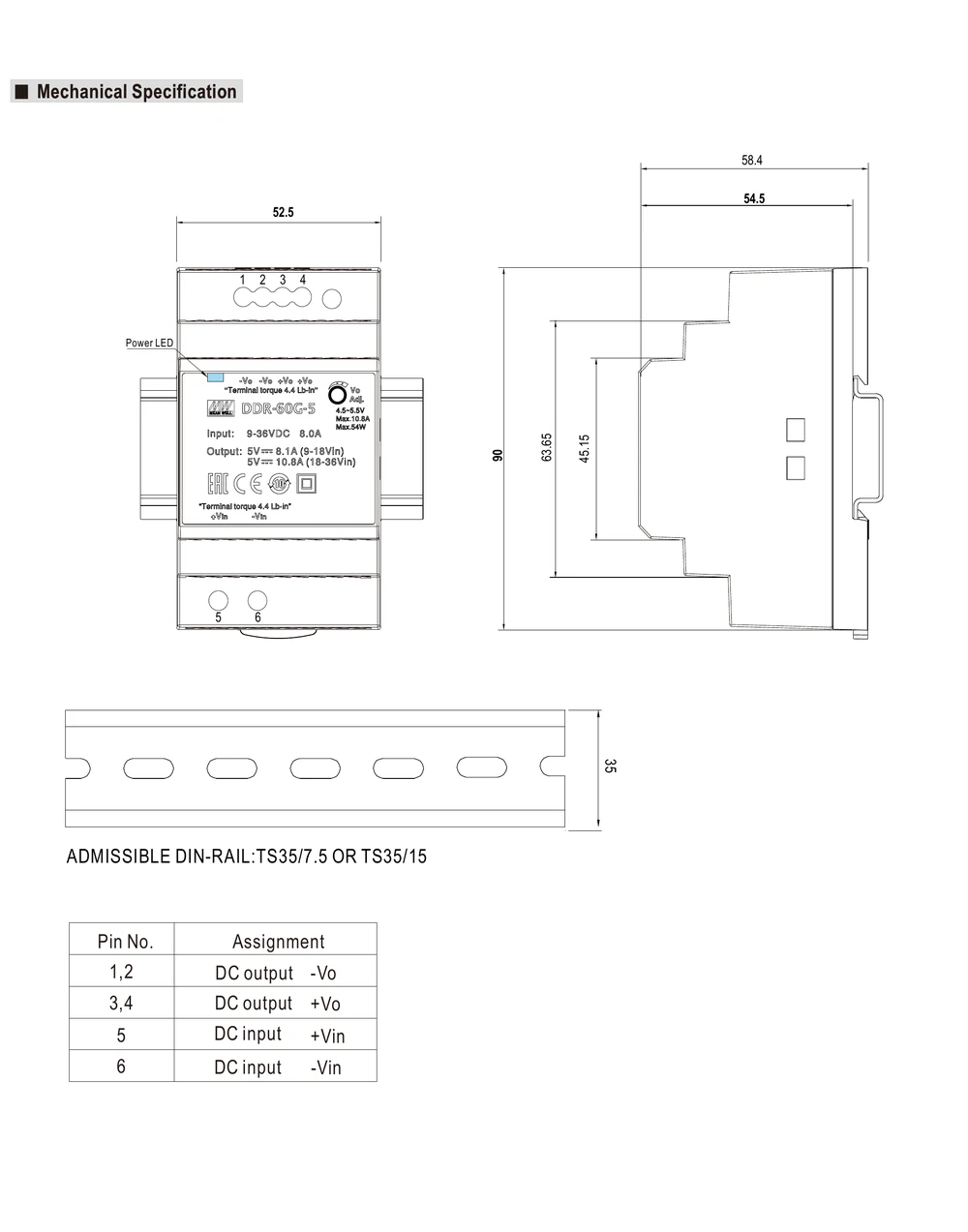

MEAN WELL DDR-60 Series DIN rail DC-DC converter mechanical drawing and dimensions — Mechanical drawing showing dimensions and DIN rail mounting details of the MEAN WELL DDR-60 Series DC-DC converter.

Mechanical Dimensions and Installation

The MEAN WELL DDR-60 Series features a compact 60W DIN rail DC-DC converter design optimized for industrial control cabinets, factory automation equipment, communication systems and distributed DC power applications. Its compact housing, standard DIN rail mounting structure, reinforced 4KVdc I/O isolation and fanless convection cooling provide reliable isolated DC voltage conversion where installation space is limited.

Dimensions

The overall mechanical size of the DDR-60 Series is 52.5 × 90 × 54.5mm (W × H × D). This compact DIN rail form factor allows efficient installation in industrial control cabinets while maintaining reliable DC-DC conversion performance.

The series supports two input voltage platforms:

DDR-60G: 9–36Vdc input
DDR-60L: 18–75Vdc input

With 5V, 12V, 15V and 24V output options, the DDR-60 Series provides flexible integration for industrial automation systems, electronic equipment, communication devices and distributed DC power architectures.

Terminal Assignment

The DDR-60 Series includes dedicated DC input and DC output terminals for standard DIN rail DC-DC converter installation.

The terminal structure supports:

DC input connection: +Vin and -Vin
DC output connection: +Vo and -Vo
Power LED indicator for operating status indication

The six-pin terminal configuration allows simple integration into industrial control systems, automation equipment and compact DC power distribution applications.

Installation Notes

When installing the DDR-60 Series into industrial equipment or control cabinets, users should ensure correct DIN rail mounting, proper wiring connection, sufficient ventilation space and compliance with operating temperature limitations according to the official datasheet.

Because the DDR-60 Series uses free air convection cooling, sufficient airflow should be maintained around the converter to support reliable long-term operation. System designers should also consider input voltage conditions, output load, ambient temperature and derating requirements during installation.

For low input voltage conditions or high ambient temperature environments, output power may require derating according to the official derating curves.

Mounting and DIN Rail Notes

The DDR-60 Series supports standard TS35/7.5 or TS35/15 DIN rail mounting, allowing secure mechanical installation in industrial control cabinets and automation systems.

The DIN rail mounting design enables quick installation and maintenance while reducing cabinet wiring complexity. The DIN rail itself is not included with the converter and should be prepared separately according to the equipment installation requirements.

Mechanical Design Considerations

For space-limited control cabinets, the 52.5mm width design of the DDR-60 Series provides a compact solution for isolated DC power conversion while maintaining industrial-grade features including reinforced isolation, adjustable output voltage and multiple protection functions.

Before final system installation, designers should verify:

Input voltage range selection (DDR-60G or DDR-60L)
Required output voltage and load current
Ambient temperature and derating conditions
Cabinet airflow and installation spacing
Grounding and wiring requirements

These considerations help ensure stable DC voltage conversion performance in industrial automation, control systems, communication equipment and distributed DC power applications.

Need application and system integration details for the DDR-60 Series? Continue below to explore recommended applications, protection functions, EMC considerations, wiring diagrams, derating curves and system-level design guidelines for DDR-60G and DDR-60L configurations.

Applications of DDR-60 Series

The MEAN WELL DDR-60 Series is suitable for a wide range of industrial and DC power system applications requiring a compact 60W DIN rail DC-DC converter with wide input voltage capability, reinforced isolation and stable DC output conversion.

With 9–36Vdc input (DDR-60G) and 18–75Vdc input (DDR-60L) options, the series supports multiple DC power architectures including industrial control systems, factory automation equipment, communication systems and distributed DC power applications.

Featuring fanless operation, compact 52.5mm width DIN rail installation, 4KVdc I/O reinforced isolation, adjustable output voltage, input reverse polarity protection and input under-voltage protection, the DDR-60 Series provides reliable isolated DC conversion for space-limited industrial environments.

Industrial control systems and automation equipment requiring stable 5V / 12V / 15V / 24V DC voltage conversion
Factory automation systems, industrial machinery and control cabinets requiring compact DIN rail DC power conversion
Semiconductor fabrication equipment and electronic manufacturing systems requiring reliable isolated DC power supply
Telecom, datacom and wireless network equipment requiring distributed DC voltage conversion and electrical isolation
DC power systems requiring conversion between different voltage levels, including 12V, 24V and 48V DC architectures
DC buck/boost regulation, system insulation improvement and cable voltage drop compensation applications
Industrial environments requiring protection functions including short circuit, overload, over voltage, input reverse polarity and input under-voltage protection
Distributed DC power architectures and embedded electronic systems requiring isolated DIN rail DC-DC conversion
Electro-mechanical equipment and OEM industrial devices requiring compact and reliable DC voltage conversion
DC power supply replacement applications in control panels, automation systems and compact industrial equipment

Need technical specifications and system integration details for your project? Continue below to review protection functions, EMC information, insulation ratings, mechanical specifications, wiring details and installation requirements for the DDR-60 Series.

Certifications and Safety

The MEAN WELL DDR-60 Series is designed for industrial DC power conversion applications requiring international safety compliance, reinforced isolation and reliable DIN rail mounted DC-DC conversion performance. It is suitable for industrial control systems, factory automation equipment, semiconductor manufacturing equipment, telecom/datacom systems, wireless networks and distributed DC power architectures.

According to the official DDR-60 Series datasheet, the series complies with the following international safety standards:

IEC 62368-1 approved for industrial and information technology equipment safety requirements
UL 62368-1 approved for North American safety compliance requirements
AS/NZS 62368-1 approved for Australia and New Zealand safety requirements
EAC TP TC 004 approved for Eurasian market compliance

The DDR-60 Series provides 4KVdc I/O reinforced isolation, helping maintain reliable electrical separation between DC input and output circuits. This isolation capability supports safer system design, improved noise resistance and stable operation in industrial DC voltage conversion applications.

The series also complies with industrial EMC requirements, including immunity tests for electrostatic discharge, radiated electromagnetic fields, electrical fast transient/burst, surge, conducted disturbance and magnetic field interference according to relevant BS EN/EN61000-4 series standards.

For electromagnetic emission performance, the DDR-60 Series meets BS EN/EN55032 Class A conducted emission requirements and applicable industrial EMC requirements. Final EMC performance should still be verified at the complete equipment level according to the final enclosure, wiring method, grounding design and installation environment.

For system-level safety and reliability, the DDR-60 Series integrates multiple protection functions including:

Short circuit protection
Overload protection
Over voltage protection
Input reverse polarity protection
Input under-voltage lockout protection

These protection functions help maintain reliable operation under abnormal electrical conditions, incorrect wiring situations or unstable DC input environments.

As with all industrial DIN rail DC-DC converters, final safety and EMC compliance must be evaluated at the system level. Designers should consider grounding, shielding, cable routing, enclosure design, thermal conditions, operating altitude and insulation coordination according to the final application requirements.

Need more product details before system integration? Continue below to review application guidance, model selection for DDR-60G and DDR-60L series, wiring diagrams, mechanical installation, derating curves, efficiency data, protection functions and DC system design considerations.

FAQ

What is the MEAN WELL DDR-60 Series?

The MEAN WELL DDR-60 Series is a 60W DIN rail DC-DC converter designed for industrial control systems, factory automation equipment, communication systems and distributed DC power applications. It provides isolated DC voltage conversion with multiple input and output voltage options for compact industrial installations.

The series includes DDR-60G models with 9–36Vdc input and DDR-60L models with 18–75Vdc input, supporting 5V, 12V, 15V and 24V DC output configurations.

What is the input voltage range of the DDR-60 Series?

The DDR-60 Series provides two different DC input voltage ranges:

DDR-60G Series: 9–36Vdc input
DDR-60L Series: 18–75Vdc input

The wide input range design allows the converter to be used in different industrial DC power systems, including 12V, 24V and 48V nominal DC architectures.

What output voltages are available for DDR-60 Series DIN rail DC-DC converters?

The DDR-60 Series provides four regulated DC output options:

5Vdc output
12Vdc output
15Vdc output
24Vdc output

Common models include DDR-60G-24 and DDR-60L-24 for 24V industrial DC applications, as well as 5V, 12V and 15V versions for electronic and control systems.

What is the difference between DDR-60G and DDR-60L?

The main difference between DDR-60G and DDR-60L is the DC input voltage range.

DDR-60G: 9–36Vdc input, suitable for lower voltage DC systems such as 12V and 24V applications.

DDR-60L: 18–75Vdc input, suitable for wider DC systems including 24V and 48V industrial power architectures.

The output voltage options and mechanical design are similar between the two versions.

Is the DDR-60 Series an isolated DC-DC converter?

Yes. The DDR-60 Series is an isolated DIN rail DC-DC converter with <strong>4KVdc I/O reinforced isolation</strong> between input and output circuits.

This isolation helps improve electrical safety, reduce interference between different voltage domains and support reliable DC power conversion in industrial systems.

Can DDR-60 Series be installed on standard DIN rails?

Yes. The DDR-60 Series supports installation on standard:

TS35/7.5 DIN rail
TS35/15 DIN rail

Its compact 52.5mm width design makes it suitable for space-limited industrial control cabinets, automation panels and distributed DC power systems.

Does the DDR-60 Series require a minimum load?

No. The DDR-60 Series does not require a minimum output load to maintain normal operation.

This feature improves application flexibility, especially for industrial control systems, sensors, embedded electronics and automation equipment where the connected load may vary significantly.

What protection functions are included in the DDR-60 Series?

The DDR-60 Series integrates multiple protection functions to improve system reliability, including:

Short circuit protection
Overload protection
Over voltage protection
Input reverse polarity protection
Input under-voltage lockout protection

The internal MOSFET-based reverse polarity protection design helps prevent damage caused by incorrect DC input wiring.

What applications use the DDR-60 Series 60W DIN rail DC-DC converter?

The DDR-60 Series is commonly used in:

Industrial control systems
Factory automation equipment
Semiconductor fabrication equipment
Electro-mechanical systems
Wireless communication systems
Telecom and datacom equipment
Distributed DC power architectures

Typical applications include DC voltage conversion, system insulation improvement and cable voltage drop compensation.

How do I select the correct DDR-60 Series model?

Select the DDR-60 model according to:

Input voltage: Choose DDR-60G for 9–36Vdc systems or DDR-60L for 18–75Vdc systems.
Output voltage: Select 5V, 12V, 15V or 24V according to the connected equipment.
Output current: Confirm the required load current is within the rated specification.
Installation environment: Consider cabinet space, ambient temperature and required ventilation.

For example, DDR-60G-24 is suitable for 9–36Vdc input systems requiring 24V output, while DDR-60L-24 is suitable for 18–75Vdc input applications requiring isolated 24V DC conversion.

Need more details about DDR-60 Series input voltage range (DDR-60G / DDR-60L), adjustable output voltage, input reverse polarity protection, input under-voltage protection, 4KVdc I/O reinforced isolation and system-level DC-DC converter integration? Check the FAQ section above or review the datasheet for complete electrical, mechanical and protection specifications for industrial control systems, factory automation equipment, semiconductor manufacturing equipment, telecom, datacom, wireless network and distributed DC power applications.

Product Video

Mean Well DC-DC DIN Rail Power Supply DDR-60 Series Unboxing

Mean Well DC-DC DIN Rail Power Supply DDR-60 Series Video Show

DDR-60 Series product videos will be added soon.

Need more details about DDR-60 Series input voltage range (DDR-60G / DDR-60L), DC-DC converter application support, adjustable output voltage, input reverse polarity protection, input under-voltage protection, 4KVdc I/O reinforced isolation and system-level DIN rail power integration? Check the FAQs above or review the datasheet for complete electrical, mechanical and protection specifications for industrial control systems, factory automation equipment, semiconductor manufacturing equipment, telecom, datacom, wireless network and distributed DC power applications.
