May 17, 2022MW Mean Well Meanwell 100W Constant Voltage + Constant Current LED Driver HLG-100H series
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- Class 2 power unit
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Mean Well LED Driver HLG-100H Series Data Sheet Download
Description
HLG-100H series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-100H operates from 90～305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

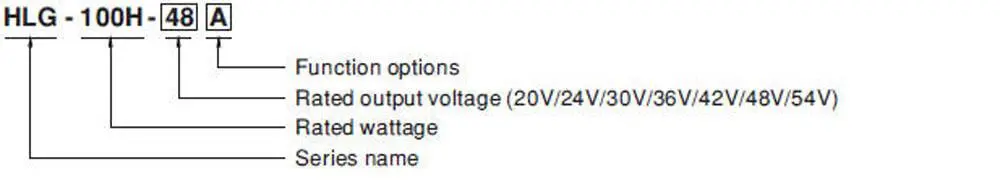

Mean Well LED Driver HLG-100H Series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In Stock |
| B | IP67 | 3 in 1 dimming function (1~1OVDC, 1OV PWM signal and resistance) | In Stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer &
3 in 1 dimming function (1~1OVdc, 1OV PWM signal and resistance) |
In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By request |
Specification
| MODEL | HLG-100H-20 | HLG-100H-24 | HLG-100H-30 | HLG-100H-36 | HLG-100H-42 | HLG-100H-48 | HLG-100H-54 | ||
|
OUTPUT |
DC VOLTAGE | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |
| CONSTANT CURRENT REGION Note.4 | 10 ~ 20V | 12 ~ 24V | 15 ~ 30V | 18 ~ 36V | 21 ~ 42V | 24 ~ 48V | 27 ~ 54V | ||
| RATED CURRENT | 4.8A | 4A | 3.2A | 2.65A | 2.28A | 2A | 1.77A | ||
| RATED POWER | 96W | 96W | 96W | 95.4W | 95.76W | 96W | 95.58W | ||
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||
|
VOLTAGE ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||||
| 17 ~ 22V | 22 ~ 27V | 27 ~ 33V | 33 ~ 40V | 38 ~ 46V | 43 ~ 53V | 49 ~ 58V | |||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||||
| 3 ~ 4.8A | 2.5 ~ 4A | 2 ~ 3.2A | 1.65 ~ 2.65A | 1.4 ~ 2.28A | 1.25 ~ 2A | 1.1 ~ 1.77A | |||
| VOLTAGE TOLERANCE Note.3 | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| SETUP, RISE TIME | Note.6 | 1200ms,50ms/115VAC 500ms,50ms/230VAC | |||||||
| HOLD UP TIME (Typ.) | 16ms / 115VAC, 230VAC | ||||||||
|
INPUT |
VOLTAGE RANGE |
Note.5 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
|
POWER FACTOR (Typ.) |
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
||||||||
| EFFICIENCY (Typ.) | 93% | 93% | 93% | 93% | 93% | 93% | 93% | ||
| AC CURRENT (Typ.) | 1.2A / 115VAC 0.55A / 230VAC 0.5A / 277VAC | ||||||||
| INRUSH CURRENT (Typ.) | COLD START 60A (twidth=415μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC |
||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||||
|
PROTECTION |
OVER CURRENT | 95 ~ 106% | |||||||
| Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||||||
|
OVER VOLTAGE |
23 ~ 27V | 28 ~ 34V | 34 ~ 38V | 41 ~ 46V | 47 ~ 53V | 54 ~ 63V | 59 ~ 65V | ||
| Shut down o/p voltage with auto-recovery or re-power on to recovery | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase= -40 ~ +80℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||||
| MAX. CASE TEMP. | Tcase= +80℃ | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.8 |
UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1(except for AB-type),
AS/NZS 61347-2-13(except for AB-type) independent; GB19510.1, GB19510.14, IP65 or IP67, J61347-1, J61347-2-13(except for B, AB and D-type), KC61347-1, KC61347-2-13(except for D-type), EAC TP TC 004 approved |
|||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION |
Note.8 |
Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧60%); BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | ||||||||
|
OTHERS |
MTBF | 192.2K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 220*68*38.8mm (L*W*H) | ||||||||
| PACKING | 1.12Kg; 12pcs/14.4Kg/0.8CUFT | ||||||||
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified)
