May 18, 2022MW Mean Well Meanwell 320W Constant Voltage + Constant Current LED Driver HLG-320H series
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built in active PFC function
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming;
- Typical lifetime > 62000 hours
- 7 years warranty
Mean Well LED Driver HLG-320H Series Data Sheet Download
Description
HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-320H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

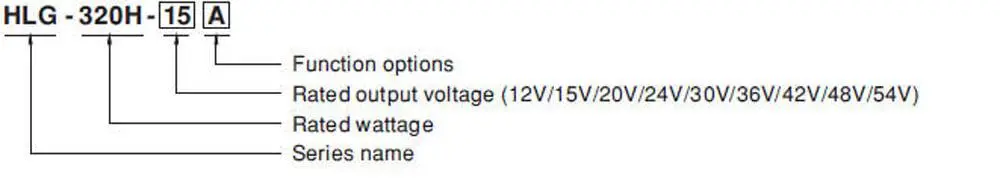

Mean Well LED Driver HLG-320H Series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built in potentiometer | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) |
In Stock |
| C | Terminal block for I/0 connection. 0utput voltage and constant current level can be adjusted through internal potentiometer. | By request | |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending). | By request |
Specification
| MODEL | HLG-320H-12 | HLG-320H-15 | HLG-320H-20 | HLG-320H-24 | HLG-320H-30 | HLG-320H-36 | HLG-320H-42 | HLG-320H-48 | HLG-320H-54 | |
|
OUTPUT |
DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION Note.4 | 6 ~12V | 7.5 ~ 15V | 10 ~ 20V | 12 ~ 24V | 15 ~ 30V | 18 ~ 36V | 21~ 42V | 24 ~ 48V | 27 ~ 54V | |
| RATED CURRENT | 22A | 19A | 15A | 13.34A | 10.7A | 8.9A | 7.65A | 6.7A | 5.95A | |
| RATED POWER | 264W | 285W | 300W | 320.16W | 321W | 320.4W | 321.3W | 321.6W | 321.3W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
|
VOLTAGE ADJ. RANGE |
Adjustable for A/C-Type only (via built-in potentiometer) | |||||||||
| 10.8 ~ 13.5V | 13.5~ 17V | 17 ~ 22V | 21 ~ 26V | 26~ 32V | 32 ~ 39V | 38 ~ 45V | 43~ 52V | 49~ 58V | ||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB/C-Type only (via built-in potentiometer) | |||||||||
| 11 ~ 22A | 9.5 ~ 19A | 7.5 ~ 15A | 6.67 ~ 13.34A | 5.35 ~ 10.7A | 4.45 ~ 8.9A | 3.8 ~ 7.65A | 3.35 ~ 6.7A | 2.97~ 5.95A | ||
| VOLTAGE TOLERANCE Note.3 | ±3.0% | ±2.0% | ±1.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME Note.6 | 2500ms, 80ms/115VAC 500ms,80ms/230VAC | |||||||||
| HOLD UP TIME (Typ.) | 15ms / 115VAC, 230VAC | |||||||||
|
INPUT |
VOLTAGE RANGE Note.5 | 90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
|
POWER FACTOR (Typ.) |
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||||||||
| EFFICIENCY (Typ.) (230Vac) | 91% | 92.5% | 93.5% | 94% | 94% | 94.5% | 95% | 95% | 95% | |
| EFFICIENCY (Typ.) (277Vac) | 91.5% | 93% | 94% | 94.5% | 94.5% | 95% | 95% | 95% | 95% | |
| AC CURRENT (Typ.) | 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC | |||||||||
| INRUSH CURRENT (Typ.) | COLD START 70A (twidth=1010μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC | |||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
|
OVER VOLTAGE |
14 ~ 17V | 17.5 ~ 21V | 22.5 ~ 27V | 27 ~ 33V | 33 ~ 37V | 40 ~ 46V | 46.5 ~ 53V | 53.5 ~ 60V | 59 ~ 65V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase= -40 ~ +90℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||||||
| MAX. CASE TEMP. | Tcase= +90℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent; GB19510.1,GB19510.14; IP65 or IP67 (except for HLG-320H C-type); J61347-1, J61347-2-13 (except for B,AB,C and D-type), EAC TP TC 004;KC61347-1,KC61347-2-13(except for AB,C-type) approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020; | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020; | |||||||||
|
OTHERS |
MTBF | 157.1K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 252*90*43.8mm (L*W*H) | |||||||||
| PACKING | 1.88Kg; 8pcs/16Kg/0.92CUFT | |||||||||
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified)
