May 17, 2022MW Mean Well Meanwell 80W Constant Voltage + Constant Current LED Driver HLG-80H series
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- Class 2 power unit
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Mean Well LED Driver HLG-80H Series Data Sheet Download
Description
HLG-80H series is an 80W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-80H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

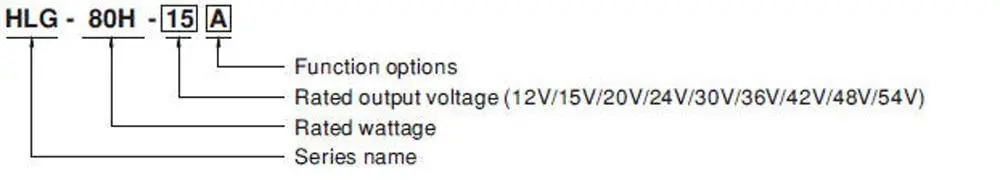

Mean Well LED Driver HLG-80H Series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) |
In Stock |
| BL | IP66 | B-Type with junction box. UL8750 LISTED. Contact MEAN WELL fordetails | By request |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By request |
Specification
| MODEL | HLG-80H-12 | HLG-80H-15 | HLG-80H-20 | HLG-80H-24 | HLG-80H-30 | HLG-80H-36 | HLG-80H-42 | HLG-80H-48 | HLG-80H-54 | ||
|
OUTPUT |
DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V | |
| CONSTANT CURRENT REGION Note.4 | 7.2 ~12V | 9 ~ 15V | 12 ~ 20V | 14.4 ~ 24V | 18 ~ 30V | 21.6 ~ 36V | 25.2 ~ 42V | 28.8 ~ 48V | 32.4 ~ 54V | ||
| RATED CURRENT | 5A | 5A | 4A | 3.4A | 2.7A | 2.3A | 1.95A | 1.7A | 1.5A | ||
| RATED POWER | 60W | 75W | 80W | 81.6W | 81W | 82.8W | 81.9W | 81.6W | 81W | ||
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||
|
VOLTAGE ADJ. RANGE |
Adjustable for A-Type only (via built-in potentiometer) | ||||||||||
| 10.8 ~ 13.5V | 13.5 ~ 17V | 17 ~ 22V | 22 ~ 27V | 27 ~ 33V | 33 ~ 40V | 38 ~ 46V | 43 ~ 53V | 49 ~ 58V | |||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||||||
| 3 ~ 5A | 3 ~ 5A | 2.4 ~ 4A | 2.04 ~ 3.4A | 1.62 ~ 2.7A | 1.38 ~ 2.3A | 1.17 ~ 1.95A | 1.02 ~ 1.7A | 0.9 ~ 1.5A | |||
| VOLTAGE TOLERANCE Note.3 | ±2.5% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| SETUP, RISE TIME | Note.6 | 1200ms,200ms/115VAC 500ms,200ms/230VAC | |||||||||
| HOLD UP TIME (Typ.) | 16ms at full load 230VAC /115VAC | ||||||||||
|
INPUT |
VOLTAGE RANGE |
Note.5 |
90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||
|
POWER FACTOR (Typ.) |
PF≧0.96/115VAC, PF≧0.96/230VAC, PF≧0.94/277VAC @ full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
||||||||||
| EFFICIENCY (Typ.) | 88% | 89% | 90% | 90.5% | 91% | 91% | 91% | 91% | 91% | ||
| AC CURRENT (Typ.) | 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC | ||||||||||
| INRUSH CURRENT (Typ.) | COLD START 70A (twidth=485μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC |
||||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | |||||||||
| Constant current limiting, recovers automatically after fault condition is removed | |||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
|
OVER VOLTAGE |
14 ~ 17V | 18 ~ 24V | 23 ~ 30V | 28 ~ 35V | 35 ~ 43V | 41 ~ 49V | 48 ~ 58V | 54 ~ 63V | 59 ~ 68V | ||
| Shut down o/p voltage, re-power on to recover | |||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase= -40 ~ +80℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||||||
| MAX. CASE TEMP. | Tcase= +80℃ | ||||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||||
|
SAFETY & EMC |
SAFETY STANDARDS Note.8 |
UL8750(type”HL”), CSA C22.2 No. 250.0-08, UL8750 LISTED for HLG-80H- BL;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 J61347-1, J61347-2-13(except for B,AB and D-type), GB19510.1,independent, GB19510.14,EAC TP TC 004,BIS IS15885(for 36A,
54A only), IP65 or IP67, KC61347-1, KC61347-2-13(except for AB, BL-type) approved |
|||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||
|
EMC EMISSION |
Note.8 |
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%); BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | |||||||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | ||||||||||
|
OTHERS |
MTBF | 1069K hrs min. Telcordia SR-332 (Bellcore); 357.8K hrs min. MIL-HDBK-217F (25℃) | |||||||||
| DIMENSION | 195.6*61.5*38.8mm (L*W*H) | ||||||||||
| PACKING | 0.84Kg; 16pcs/14.4Kg/0.54CUFT | ||||||||||
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified)
