May 21, 2022320W Constant Current Mode LED Driver HLG-320H-C series
Features
- Constant Current mode output
- Metal housing with class I design
- Built-in active PFC function
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Data Sheet Download
Description
HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

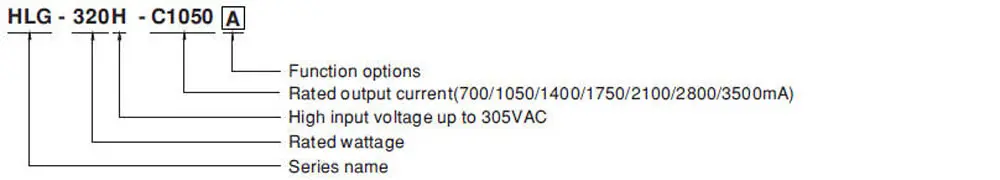

Model Encoding
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer. | In Stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| DA | IP67 | DALI control technology. | In Stock |
| AB | IP65 | Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function. | In Stock |
Specification
| MODEL | HLG-320H-C700 | HLG-320H-C1050 | HLG-320H-C1400 | HLG-320H-C1750 | HLG-320H-C2100 | HLG-320H-C2800 | HLG-320H-C3500 | ||||
|
OUTPUT |
RATED CURRENT | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | 2800mA | 3500mA | |||
| RATED POWER | 299.6W | 320.25W | 320.6W | 320.25W | 319.2W | 319.2W | 318.5W | ||||
| CONSTANT CURRENT REGION Note.2 | 214 ~ 428V | 152 ~ 305V | 114 ~ 229V | 91 ~ 183V | 76 ~ 152V | 57 ~ 114V | 46 ~ 91V | ||||
| OPEN CIRCUIT VOLTAGE (max.) | 435V | 311V | 234V | 187V | 156V | 118V | 95V | ||||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | ||||||||||
| 350 ~ 700mA | 525 ~ 1050mA | 700 ~ 1400mA | 875 ~ 1750mA | 1050 ~ 2100mA | 1400 ~ 2800mA | 1750 ~ 3500mA | |||||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||||||||
| CURRENT TOLERANCE | ±5% | ||||||||||
| SET UP TIME | Note.4 | 1000ms/115VAC, or 500ms/230VAC | |||||||||
|
INPUT |
VOLTAGE RANGE |
Note.3 |
90 ~ 305VAC 127~417VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||
| POWER FACTOR (Typ.) | PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
||||||||||
| TOTAL HARMONIC DISTORTION | THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
||||||||||
| EFFICIENCY (Typ.) | 94% | 94% | 94% | 94% | 94% | 94% | 94% | ||||
| AC CURRENT (Typ.) | 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC | ||||||||||
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | ||||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||||||
|
PROTECTION |
SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||||
|
OVER VOLTAGE |
436 ~ 460V | 320 ~ 352V | 235 ~ 252V | 192 ~ 211V | 160 ~ 175V | 120 ~ 132V | 96 ~ 105V | ||||
| Shut down and latch off o/p voltage, re-power on to recover | |||||||||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | ||||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||||||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent;
GB19510.1,GB19510.14,EAC TP TC 004, IP65 or IP67 approved |
|||||||||
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | ||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 | ||||||||||
|
EMC IMMUNITY |
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | ||||||||||
|
OTHERS |
MTBF | 168.2K hrs min. MIL-HDBK-217F (25℃) | |||||||||
| DIMENSION | 252*90*43.8mm (L*W*H) | ||||||||||
| PACKING | 1.88Kg; 8pcs/16Kg/0.92CUFT | ||||||||||
Application
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED greenhouse lighting
- LED bay lighting
- Type “HL” for use in Class Ⅰ, Division 2 hazardous (Classified)
