October 23, 2022MW Mean Well Meanwell 240W Constant Power Mode LED Driver XBG-240 series
Features
‧Full power output at 70~100% constant power mode operation
‧Wide input range 100 ~ 305VAC with active PFC function
‧Metal housing design with IP67
Multiple dimming functions:3 in 1. (0-10V/PWM/Resistor)
‧Surge protection with 6kV /4kV
‧Dimming circuit with Isolated for latest safety regulation
‧Typical lifetime>50000 hours and 5 years warranty
‧AC input cable with connector for flexible Installtion
Mean Well LED Driver XBG-240 Series Data Sheet Download
Description

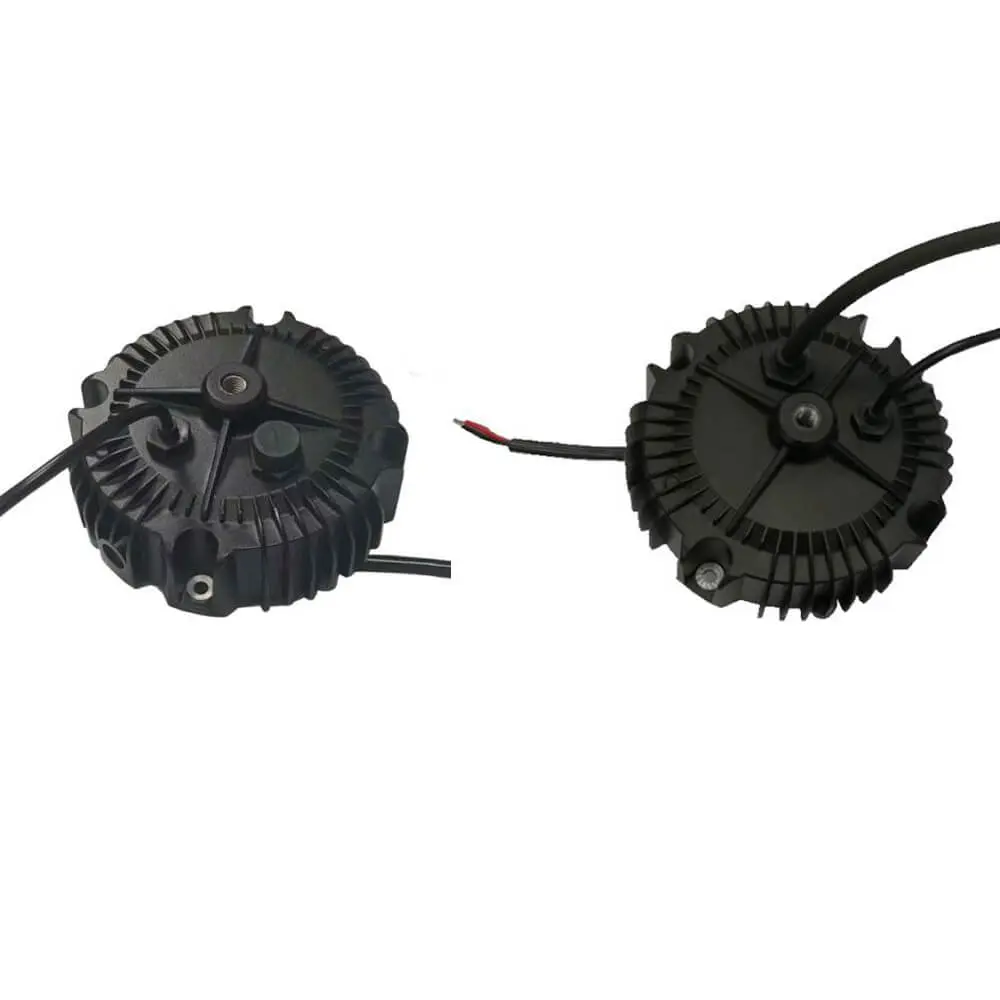

XBG-240 series is a 240W AC/DC LED driver featuring the constant power mode. XBG-240 operates from 100~305VAC and offers with different rated current ranging between 4000mA and 5700mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XBG-240 series comply with the latest version of IEC61347/IEC60598-1 and UL8750 international safety regulations.The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation.
In Mean Well LED driver XBG family, there are XBG-100 series, XBG-160 series and XBG-240 series.

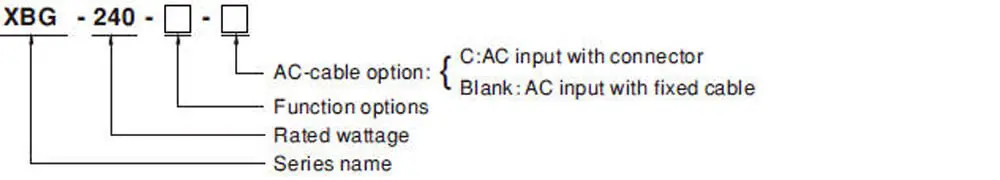

Mean Well LED Driver XBG-240 Series Model Encoding
| Type | P Level | Function | Note |
| A | P67 | constant power adjustable via built-in potentiometer | in Stock |
| AB | P67 | constant power adjustable via built-in potentiometer +
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistor) |
in Stock |
Specification
| MODEL | XBG-240- – | ||||||
|
OUTPUT |
DEFAULT CURRENT | 4900mA | |||||
| RATED POWER | 240W | ||||||
| CONSTANT CURRENT REGION | 30 ~60V | ||||||
| FULL POWER CURRENT RANGE | 4000~5700mA | ||||||
| OPEN CIRCUIT VOLTAGE (max.) | 65V | ||||||
| CURRENT ADJ. RANGE | 2000~5700mA | ||||||
| CURRENT RIPPLE | 4.0% max. @rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| SET UP TIME | Note.4 | 500ms/230VAC, 1200ms/115VAC | |||||
|
INPUT |
VOLTAGE RANGE | Note.2 | 100 ~ 305VAC 142~431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR (Typ.) | PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load
(Please refer to “Power Factor Characteristic” section) |
||||||
| TOTAL HARMONIC DISTORTION | THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section | ||||||
| EFFICIENCY (Typ.) | 93% | ||||||
| AC CURRENT (Typ.) | 3.2A / 115VAC 1.3A / 230VAC 1.2A / 277VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 65A (twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER | 3 unit (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||
| STANDBY POWER CONSUMPTION |
Standby power consumption<0.5W for AB-Type |
||||||
|
PROTECTION |
SHORT CIRCUIT | Hiccup mode or constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 66 ~ 78V | ||||||
| Shut down output voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | ||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase=-40 ~ +85℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
|
SAFETY & EMC |
SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;
IS15885(Part2/Sec13); GB19510.1,GB19510.14; IP67;EAC TP TC 004 approved |
|||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-PE:2KVAC O/P-PE:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-PE, O/P-PE:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
|
EMC EMISSION |
Parameter | Standard | Test Level/Note | ||||
| Conducted | BS EN/EN55015(CISPR15),GB/T17743 | —– | |||||
| Radiated | BS EN/EN55015(CISPR15),GB/T17743 | —– | |||||
| Harmonic Current | BS EN/EN61000-3-2,GB17625.1 | Class C @load≥50% | |||||
| Voltage Flicker | BS EN/EN61000-3-3 | —– | |||||
|
EMC IMMUNITY |
BS EN/EN61547 | ||||||
| Parameter | Standard | Test Level/Note | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | |||||
| Radiated | BS EN/EN61000-4-3 | Level 3 | |||||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | |||||
| Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 6KV/Line-Earth | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods |
|||||
|
OTHERS |
MTBF | 615.83K hrs min. | Telcordia SR-332(Bellcore); 154.57K hrs min. | MIL-HDBK-217F (25℃) | |||
| LIFETIME | Note.5 | 50000 hrs min. | |||||
| DIMENSION | φ176mm *65mm(D*H) | ||||||
| PACKING | 1.92Kg; 8pcs/17.5Kg/1.47CUFT | ||||||
Application
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Explosion-proof lighting
- Type HL LED driver for classⅠ division 2.
