May 18, 2022Mean Well 240W LED Driver HLG-240H series: 12V-54V Options
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- IP67/IP65 rating for indoor or outdoor installations.
- Function options: output adjustable via potentiometer; 3 in 1 dimming;
- Typical lifetime > 62000 hours
- 7 years warranty
Mean Well LED Driver HLG-240H Series Data Sheet Download
Mean Well 240W Constant Voltage + Constant Current LED Driver HLG-240H Series
The official datasheet for the Mean Well HLG-240H Series LED Drivers, covering all models from 12 V to 54 V.
This document provides detailed electrical specifications, efficiency data, safety approvals, and mechanical drawings for constant voltage and constant current types.
It includes A, B, C, and AB versions designed for professional lighting applications requiring high reliability and performance.
Voltage Range: 12 V – 54 V
Model Examples: HLG-240H-12 / 24 / 36 / 48 / 54 and corresponding A / B / C / AB variants.
Full Model List:
12V: HLG-240H-12, HLG-240H-12A, HLG-240H-12B, HLG-240H-12C, HLG-240H-12AB
15V: HLG-240H-15, HLG-240H-15A, HLG-240H-15B, HLG-240H-15C, HLG-240H-15AB
20V: HLG-240H-20, HLG-240H-20A, HLG-240H-20B, HLG-240H-20C, HLG-240H-20AB
24V: HLG-240H-24, HLG-240H-24A, HLG-240H-24B, HLG-240H-24C, HLG-240H-24AB
30V: HLG-240H-30, HLG-240H-30A, HLG-240H-30B, HLG-240H-30C, HLG-240H-30AB
36V: HLG-240H-36, HLG-240H-36A, HLG-240H-36B, HLG-240H-36C, HLG-240H-36AB
42V: HLG-240H-42, HLG-240H-42A, HLG-240H-42B, HLG-240H-42C, HLG-240H-42AB
48V: HLG-240H-48, HLG-240H-48A, HLG-240H-48B, HLG-240H-48C, HLG-240H-48AB
54V: HLG-240H-54, HLG-240H-54A, HLG-240H-54B, HLG-240H-54C, HLG-240H-54AB
Description
HLG 240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-240H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

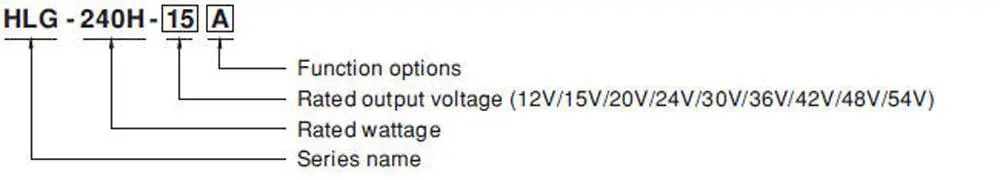

Mean Well LED Driver HLG-240H Series Model Encoding
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built in potentiometer | In Stock |
| B | IP67 | 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) | In Stock |
| AB | IP65 | Io and Vo adjustable through built in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) |
In Stock |
| C | Terminal block for I/0 connection. 0utput voltage and constant current level can be adjusted through internal potentiometer. | By request | |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By request |
Each model is designed for high-performance LED lighting systems and offers options for constant voltage (CV) or constant current (CC) modes, as well as different control versions such as A, B, AB, and C types.
Available Mean Well HLG-240H Series LED Driver Models
| Model | Output Voltage | Type | Control Function |
| HLG-240H-12 | 12V | Constant Voltage | – |
| HLG-240H-12A | 12V | CV + CC | Adjustable via internal potentiometer |
| HLG-240H-12B | 12V | CV + CC | 3-in-1 dimming (0–10V / PWM / resistance) |
| HLG-240H-12AB | 12V | CV + CC | Adjustable + 3-in-1 dimming |
| HLG-240H-12C | 12V | Constant Current | Terminal block for I/0 connection |
| HLG-240H-15 | 15V | Constant Voltage | – |
| HLG-240H-15A | 15V | CV + CC | Internal adjustable |
| HLG-240H-15B | 15V | CV + CC | 3-in-1 dimming |
| HLG-240H-15AB | 15V | CV + CC | Adjustable + 3-in-1 dimming |
| HLG-240H-15C | 15V | Constant Current | Terminal block for I/0 connection |
| HLG-240H-20 | 20V | Constant Voltage | – |
| HLG-240H-20A | 20V | CV + CC | Internal adjustable |
| HLG-240H-20B | 20V | CV + CC | 3-in-1 dimming |
| HLG-240H-20AB | 20V | CV + CC | Adjustable + dimming |
| HLG-240H-20C | 20V | Constant Current | Terminal block for I/0 connection |
| HLG-240H-24 | 24V | Constant Voltage | – |
| HLG-240H-24A | 24V | CV + CC | Internal adjustable |
| HLG-240H-24B | 24V | CV + CC | 3-in-1 dimming |
| HLG-240H-24AB | 24V | CV + CC | Adjustable + dimming |
| HLG-240H-24C | 24V | Constant Current | Terminal block for I/0 connection |
| HLG-240H-30 | 30V | Constant Voltage | – |
| HLG-240H-30A | 30V | CV + CC | Internal adjustable |
| HLG-240H-30B | 30V | CV + CC | 3-in-1 dimming |
| HLG-240H-30AB | 30V | CV + CC | Adjustable + dimming |
| HLG-240H-30C | 30V | Constant Current | Terminal block for I/0 connection |
| HLG-240H-36 | 36V | Constant Voltage | – |
| HLG-240H-36A | 36V | CV + CC | Internal adjustable |
| HLG-240H-36B | 36V | CV + CC | 3-in-1 dimming |
| HLG-240H-36AB | 36V | CV + CC | Adjustable + dimming |
| HLG-240H-36C | 36V | Constant Current | Terminal block for I/0 connection |
| HLG-240H-42 | 42V | Constant Voltage | – |
| HLG-240H-42A | 42V | CV + CC | Internal adjustable |
| HLG-240H-42B | 42V | CV + CC | 3-in-1 dimming |
| HLG-240H-42AB | 42V | CV + CC | Adjustable + dimming |
| HLG-240H-42C | 42V | Constant Current | Terminal block for I/0 connection |
| HLG-240H-48 | 48V | Constant Voltage | – |
| HLG-240H-48A | 48V | CV + CC | Internal adjustable |
| HLG-240H-48B | 48V | CV + CC | 3-in-1 dimming |
| HLG-240H-48AB | 48V | CV + CC | Adjustable + dimming |
| HLG-240H-48C | 48V | Constant Current | Terminal block for I/0 connection |
| HLG-240H-54 | 54V | Constant Voltage | – |
| HLG-240H-54A | 54V | CV + CC | Internal adjustable |
| HLG-240H-54B | 54V | CV + CC | 3-in-1 dimming |
| HLG-240H-54AB | 54V | CV + CC | Adjustable + dimming |
| HLG-240H-54C | 54V | Constant Current | Terminal block for I/0 connection |
These power supplies are ideal for LED street lighting, architectural illumination, horticultural lighting, and industrial applications.
Specification
| MODEL | HLG-240H-12□ | HLG-240H-15□ | HLG-240H-20□ | HLG-240H-24□ | HLG-240H-30□ | HLG-240H-36□ | HLG-240H-42□ | HLG-240H-48□ | HLG-240H-54□ | |
|
OUTPUT |
DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION Note.4 | 6 ~12V | 7.5 ~ 15V | 10 ~ 20V | 12 ~ 24V | 15 ~ 30V | 18 ~ 36V | 21~ 42V | 24 ~ 48V | 27 ~ 54V | |
| RATED CURRENT | 16A | 15A | 12A | 10A | 8A | 6.7A | 5.72A | 5A | 4.45A | |
| RATED POWER | 192W | 225W | 240W | 240W | 240W | 241.2W | 240.24W | 240W | 240.3W | |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
|
VOLTAGE ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | |||||||||
| 11.2 ~ 12.8V | 14 ~ 16V | 18.6 ~ 21.4V | 22.4 ~ 25.6V | 28 ~ 32V | 33.5 ~ 38.5V | 39 ~ 45V | 44.8 ~ 51.2V | 50 ~ 57V | ||
|
CURRENT ADJ. RANGE |
Adjustable for A/AB-Type only (via built-in potentiometer) | |||||||||
| 8 ~ 16A | 7.5 ~ 15A | 6 ~ 12A | 5 ~ 10A | 4 ~ 8A | 3.3 ~ 6.7A | 2.86 ~ 5.72A | 2.5 ~ 5A | 2.23 ~ 4.45A | ||
| VOLTAGE TOLERANCE Note.3 | ±2.5% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME Note.6 | 1000ms, 80ms/115VAC 500ms,80ms/230VAC | |||||||||
| HOLD UP TIME (Typ.) | 15ms / 115VAC, 230VAC | |||||||||
|
INPUT |
VOLTAGE RANGE Note.5 | 90 ~ 305VAC 127 ~ 431VDC
(Please refer to “STATIC CHARACTERISTIC” section) |
||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
|
POWER FACTOR (Typ.) |
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load
(Please refer to “POWER FACTOR (PF) CHARACTERISTIC” section) |
|||||||||
|
TOTAL HARMONIC DISTORTION |
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section) |
|||||||||
| EFFICIENCY (Typ.) | 90% | 90% | 91.5% | 92.5% | 92.5% | 92.5% | 92.5% | 93% | 93.5% | |
| AC CURRENT (Typ.) | 4A / 115VAC 2A / 230VAC 1.2A / 277VAC | |||||||||
| INRUSH CURRENT (Typ.) | COLD START 75A(twidth=570μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC | |||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||||||
|
PROTECTION |
OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||||
|
OVER VOLTAGE |
13.5 ~ 18V | 17.5 ~ 21.5V | 23.5 ~ 27.5V | 27 ~ 34V | 33 ~ 39V | 43 ~ 49V | 48 ~ 54V | 55 ~ 63V | 60 ~ 67V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||
|
ENVIRONMENT |
WORKING TEMP. | Tcase= -40 ~ +90℃ (Please refer to “OUTPUT LOAD vs TEMPERATURE” section) | ||||||||
| MAX. CASE TEMP. | Tcase= +90℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
UL1012, CAN/CSA-C22.2 No. 107.1-01, UL8750 (type ”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent (except for HLG-240H C type); IEC/UL/BS EN/EN 62368-1(except for AB,D type), UL8750;GB19510.1,GB19510.14(except for C-type);IP65 or IP67;J61347-1,J61347-2-13(except for B,AB and D-type), BIS IS15885( for 48V only), EAC TP TC 004,KC61347-1,KC61347-2-13(except for AB,C,D-type) approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020; KC KN15,KN61547(except for AB,C,D-type) | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020; KC KN15,KN61547(except for AB,C,D-type) | |||||||||
|
OTHERS |
MTBF | 729.2K hrs min. Telcordia SR-332 (Bellcore); 207.9K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 244.2*68*38.8mm (L*W*H) (HLG-240H-Blank/A/B) 251*68*38.8mm (L*W*H) (HLG-240H C-Type) | |||||||||
| PACKING | 1.3Kg; 12pcs/16.6Kg/0.84CUFT (HLG-240-Blank/A/B) 1.23Kg; 12pcs/15.8Kg/1.16CUFT (HLG-240 C-Type) | |||||||||
Application
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified)
